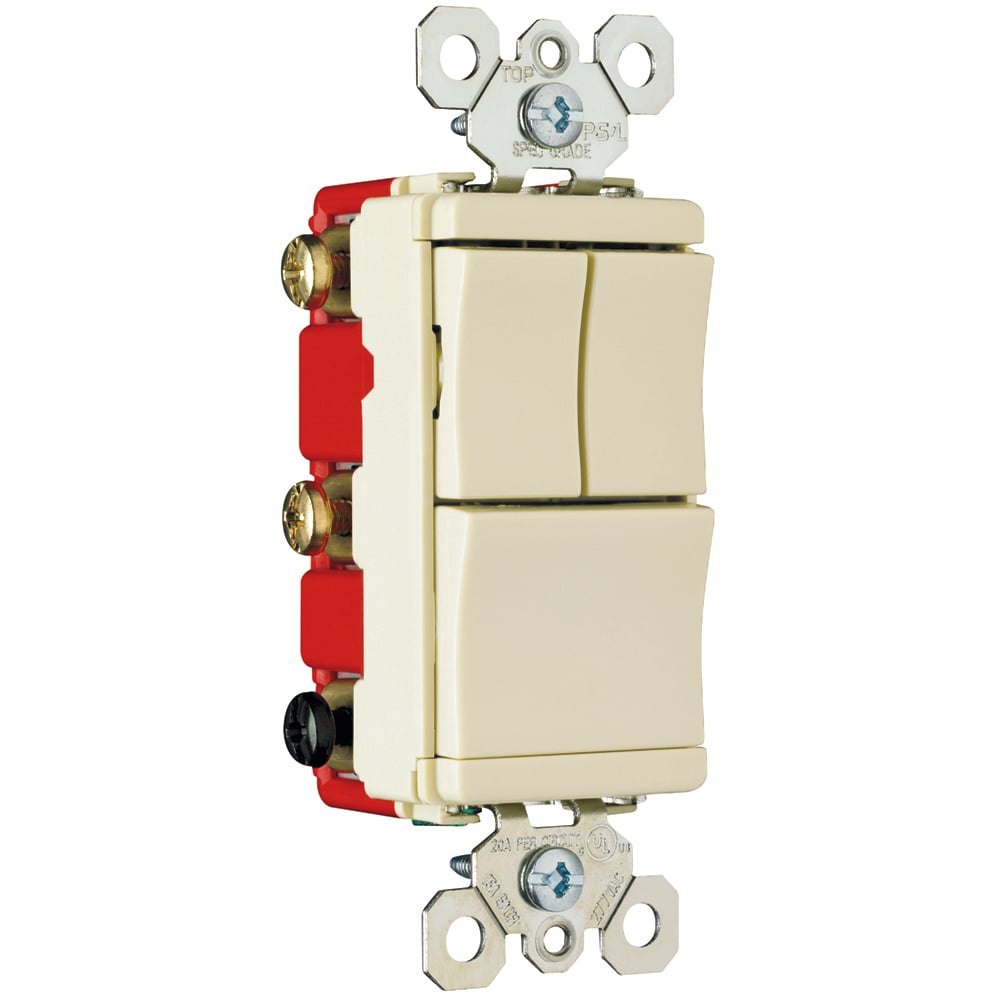

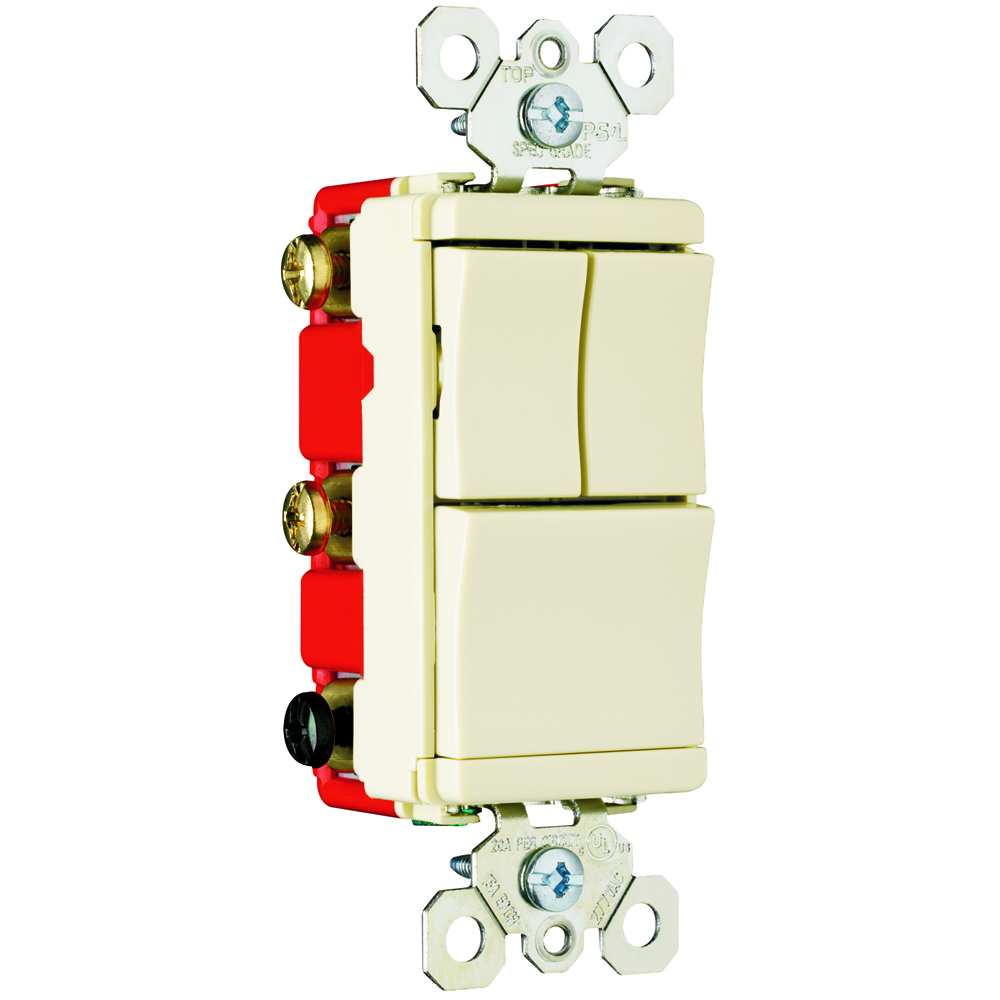

PS811120LA Decorator Combination Switch, Light Almond
- MFR:
- Legrand-Pass & Seymour
- MFR #:
- PS811120LA
- UPC:
- 785007305869
- Item #:
- 167830
PS811120LA Decorator Combination Switch, Light Almond
- MFR #:
- PS811120LA
- UPC:
- 785007305869
- Item #:
- 167830
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$43.22
each
Decorator Combo Switch
| Catalog Number | PS811120LA |
| Manufacturer | Legrand-Pass & Seymour |
| Brand | Legrand-Pass & Seymour |
| Country of Origin | China |
| Made in USA | No |
| Action | (3) SP |
| Actuator | Up/Down Rocking Paddle |
| Amperage Rating | 20 |
| Application | Commercial |
| Connection | Back and side wire |
| Contact Configuration | N-O |
| Contact Rating | 20 Amp, 277 VAC |
| Mounting | Wall |
| Number of Poles | 1 |
| Operating Cycles | 50000 |
| Special Features | Unique “Up/Down” switches match the look and feel of standard decorator switches. Impact-resistant face and body. Side and external screw-pressure-plate back wire accepts #12 and #14 AWG. All screws are tri-drive. Full wraparound heavy-gauge steel strap i |
| Standard | cULus UL20 |
| UPC | 785007305869 |
| GTIN | 00785007305869 |
| Item Type | Spec Grade Combination Decorator Three Single Pole Switches |
| Size | 1.29 L x 1.59 W x 3.812 H |
| Environmental Conditions | Flammability: UL94 V2 |
| Operating Temperature | Temperature Rise: Maximum 30 Degrees C at rated current. Operating Temperature: Maximum continuous +115 Degrees C, minimum -40 Degrees C |
| Voltage Rating | 277 |
