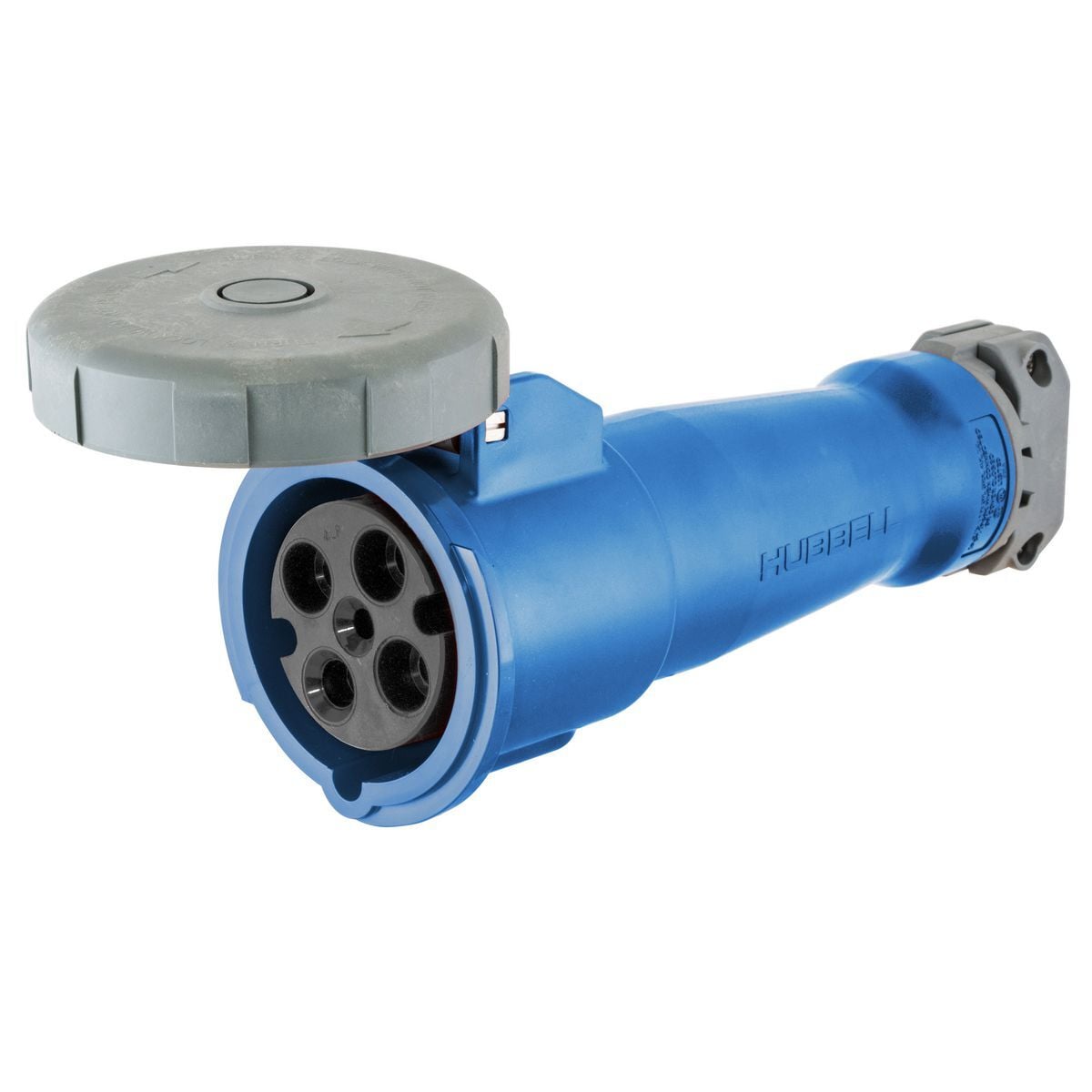

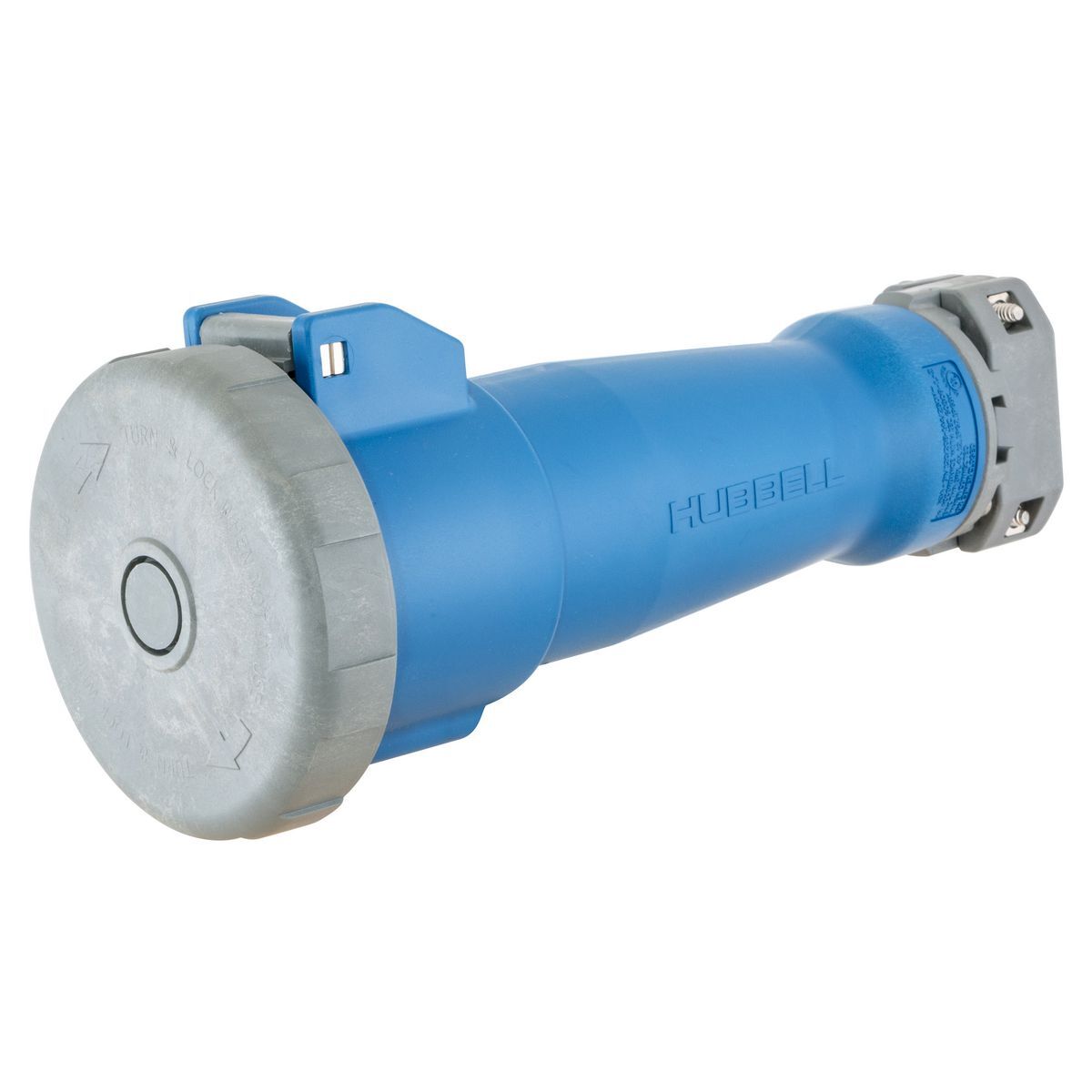

HBL460C9V05 Watertight Pin and Sleeve Connector, 600 VAC, 60 A, 4 Poles, 4 Wires, Black
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL460C9V05
- UPC:
- 783585404820
- Item #:
- 167339
HBL460C9V05 Watertight Pin and Sleeve Connector, 600 VAC, 60 A, 4 Poles, 4 Wires, Black
- MFR #:
- HBL460C9V05
- UPC:
- 783585404820
- Item #:
- 167339
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Manuals and Documentation
| Catalog Number | HBL460C9V05 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Puerto Rico |
| Made in USA | No |
| Amperage Rating | 60 |
| Application | High Ampacity Connections, Pin Mod |
| Color | Black |
| Conductor Range | #6 AWG to #4 AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Composite |
| Mounting | Cord |
| Number of Conductors | 5-Wire Grounding |
| Number of Poles | 4 |
| Special Features | Watertight |
| Standard | UL 498, IEC 309-1 and 309-2 |
| UPC | 783585404820 |
| GTIN | 00783585404820 |
| Item Type | Standard |
| Size | Standard |
| Environmental Conditions | Watertight |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 3-Phase 600V AC kV |
