SCHNEIDER ELECTRIC

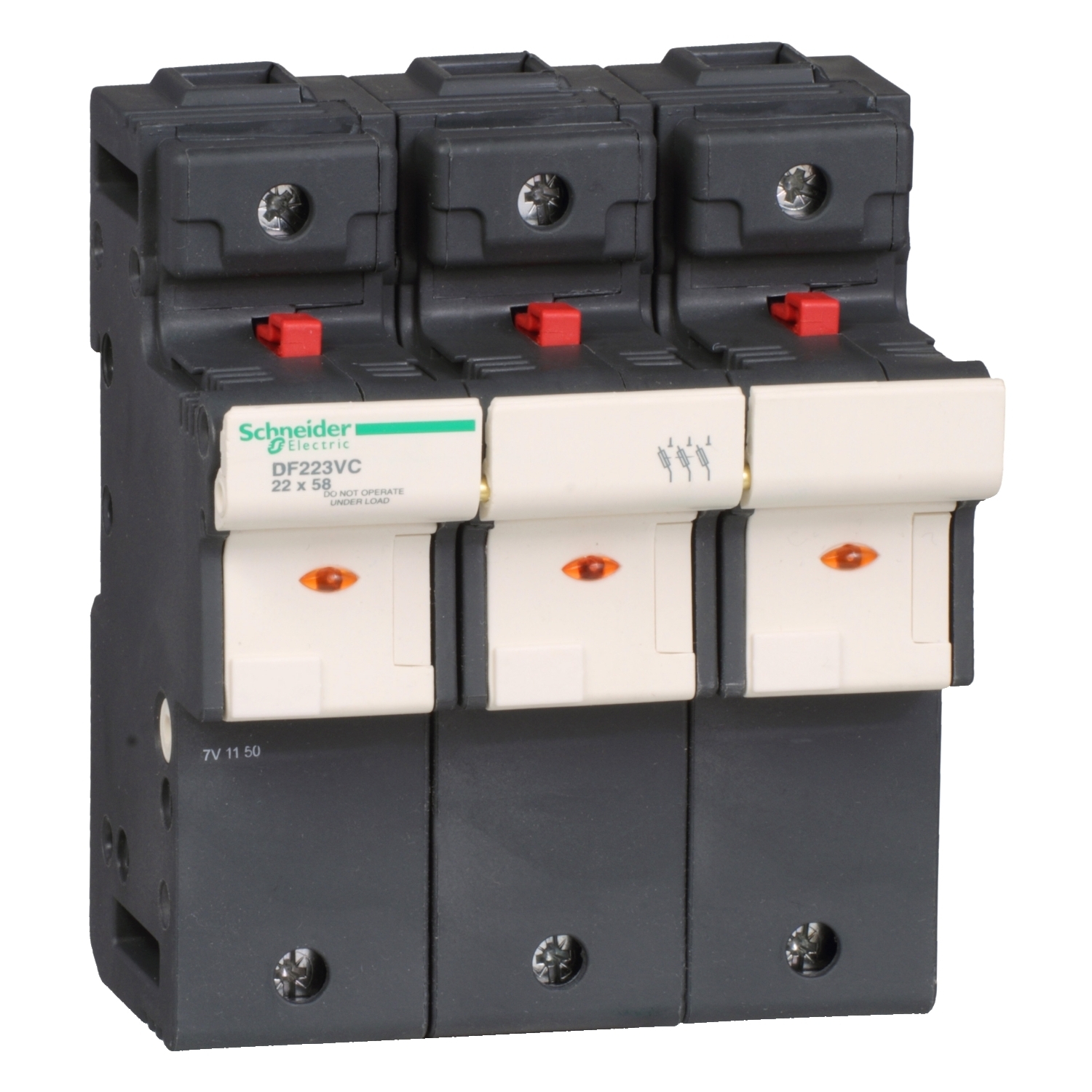

DF223VC DF22, 125 A, 690 V AC/DC, 120 kA interrupt, for use with: DF3FA fuse cartridge striker/DF3FN fuse cartridge striker/DF22AM auxiliary contact block

MFR:
Schneider Electric
MFR #:
DF223VC
Item #:
1672492

Availability

Location Available Qty
Available Available to Order
$229.90 each

TeSys DF modular fuse carrier, 3 poles (3P), for protection of control circuits up to 125A/690V. To be used with 22x58mm fuse links with stricker up to 125A and short circuit current up to 120kA@400V. To be equipped with an early break auxiliary contact module DF22AM* (to be ordered separately), it provides blown fuse indication by LED. Compact (105mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw terminals. Fuse links with stricker (22x58mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 2 units. Multi standards certified (IEC, UL recognized, CSA, EAC).

Manuals and Documentation
Catalog Number DF223VC
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin Tunisia
Made in USA No
Fuse Type , gG;, aM
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=604710&lang=en-us
GTIN 03389118233430
