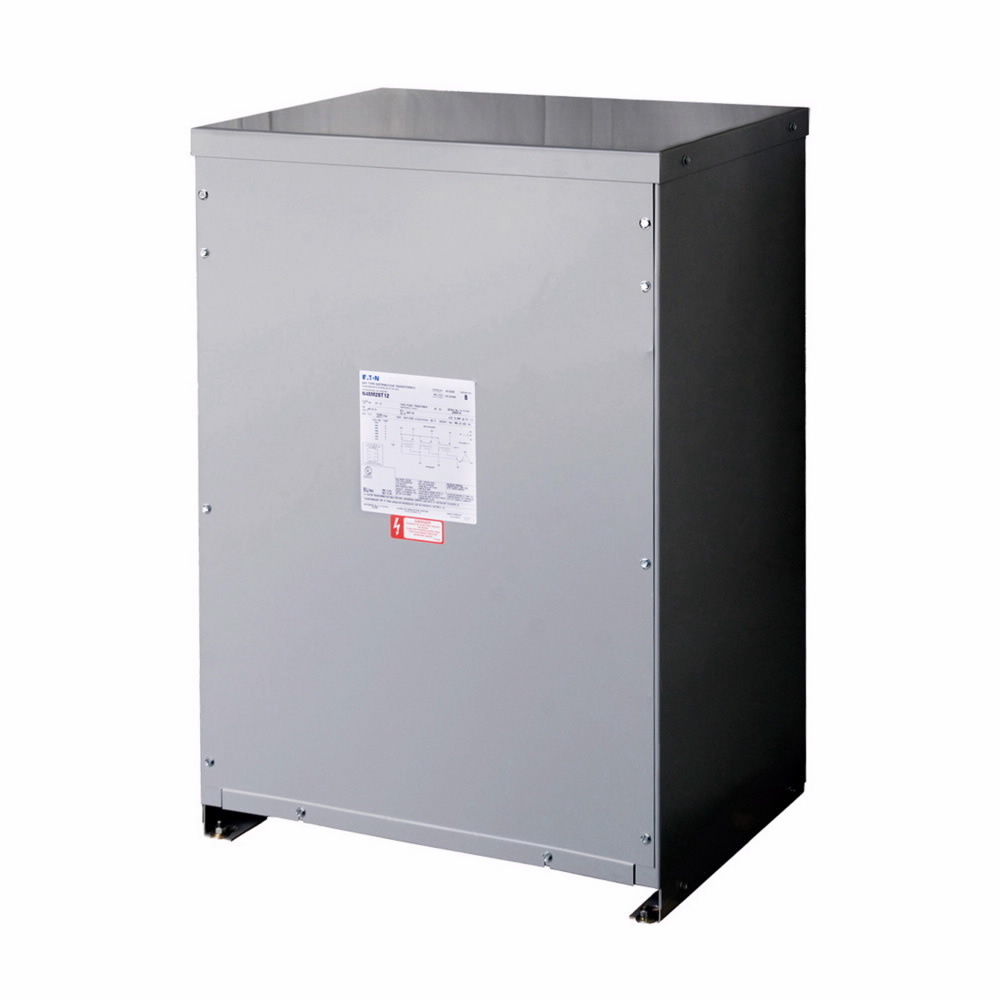

V48M28T45NV Dry Type Distribution Transformer Transformer, 480 VAC Primary, 208Y/120 V AC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Eaton
- MFR #:
- V48M28T45NV
- UPC:
- 786680030826
- Item #:
- 1672354
V48M28T45NV Dry Type Distribution Transformer Transformer, 480 VAC Primary, 208Y/120 V AC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- V48M28T45NV
- UPC:
- 786680030826
- Item #:
- 1672354
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$27,970.84
each
Totally enclosed non-ventilated transformers are highly suited for applications where the atmosphere contains conductive, corrosive, or combustible materials which might damage a transformer, or lint and dust which might block the ventilation passages. With no openings in the enclosure, heat is dissipated by radiating from the surface area of the enclosure.
| Catalog Number | V48M28T45NV |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Primary Voltage | 480 V |
| Secondary Voltage | 208Y/120 V |
| Standard | UL Listed |
| UPC | 786680030826 |
| GTIN | 00786680030826 |
| Item Type | Non-ventilated transformer |
| Dimensions | 23.4200 IN X 28.2200 IN X 32.0200 IN |
| Temperature Rating | 150 Degrees C rise |
