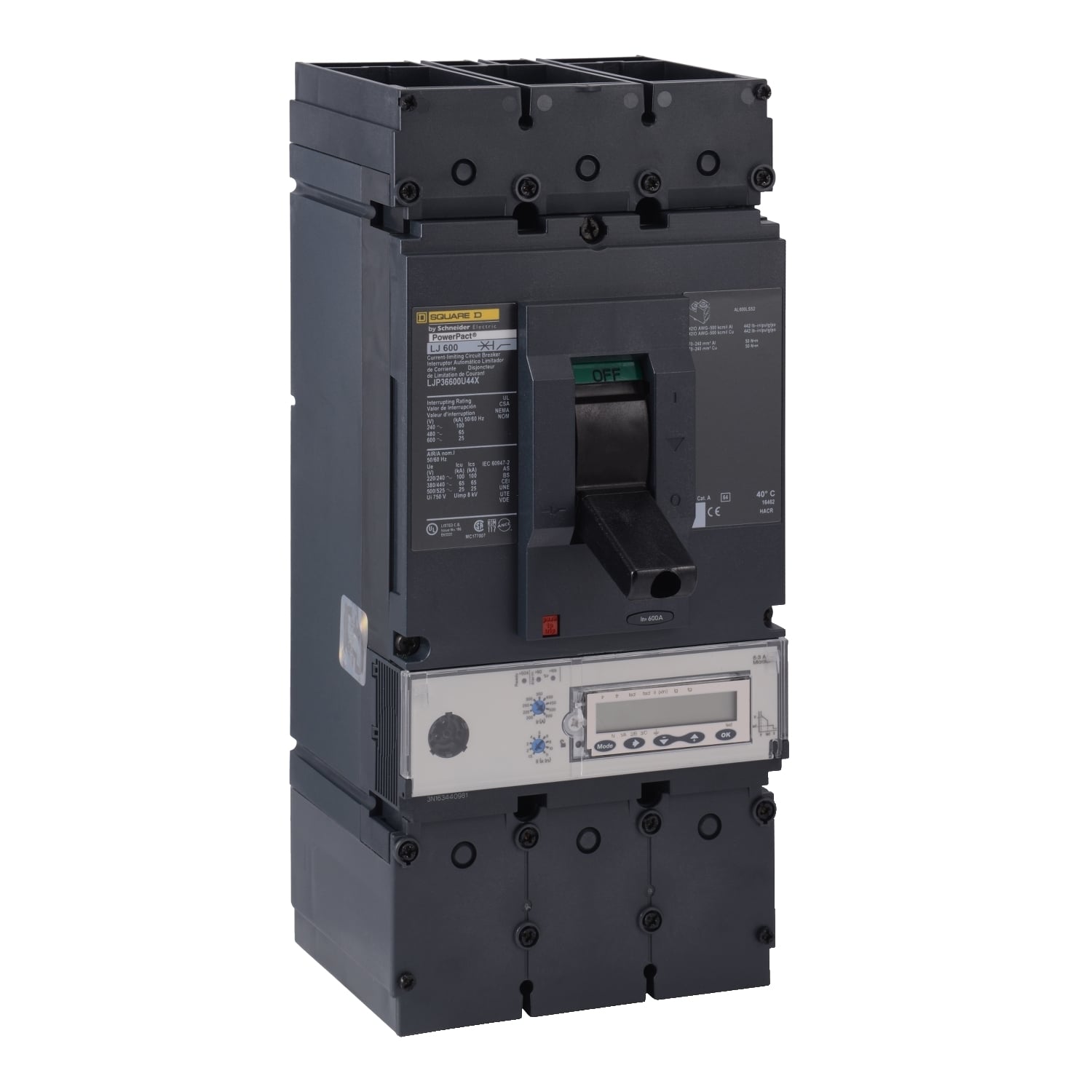

LJP36400U44X Power Pact Circuit Breaker, 600 V AC, 400 A, 100 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600 V AC/20 kA at 250 VDC Interrupt, 3 Poles, Electronic Trip
- MFR:
- Schneider Electric
- MFR #:
- LJP36400U44X
- Item #:
- 1670931
LJP36400U44X Power Pact Circuit Breaker, 600 V AC, 400 A, 100 kA at 240 V AC/65 kA at 480 V AC/25 kA at 600 V AC/20 kA at 250 VDC Interrupt, 3 Poles, Electronic Trip
- MFR #:
- LJP36400U44X
- Item #:
- 1670931
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Ammeter with a 6.3A trip unit and an LSIG function. This unit has terminal nuts on the line side and lugs on the load side. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals and Documentation
| Catalog Number | LJP36400U44X |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Unknown |
| Made in USA | No |
| Actuator | Toggle |
| Application | Distribution;HACR rated |
| Color | Black |
| Connection | Terminal nut, line;lugs, load; 2 x AWG 2/0...500 kcmil aluminium/copper |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 3 |
| Special Features | Modbus;Ethernet |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423259494&lang=en-us |
| GTIN | 03606486284605 |
| Item Type | Circuit breaker;Current limiter |
| Trip Type | Electronic, ammeter, MicroLogic 6.3 A, LSIG |
