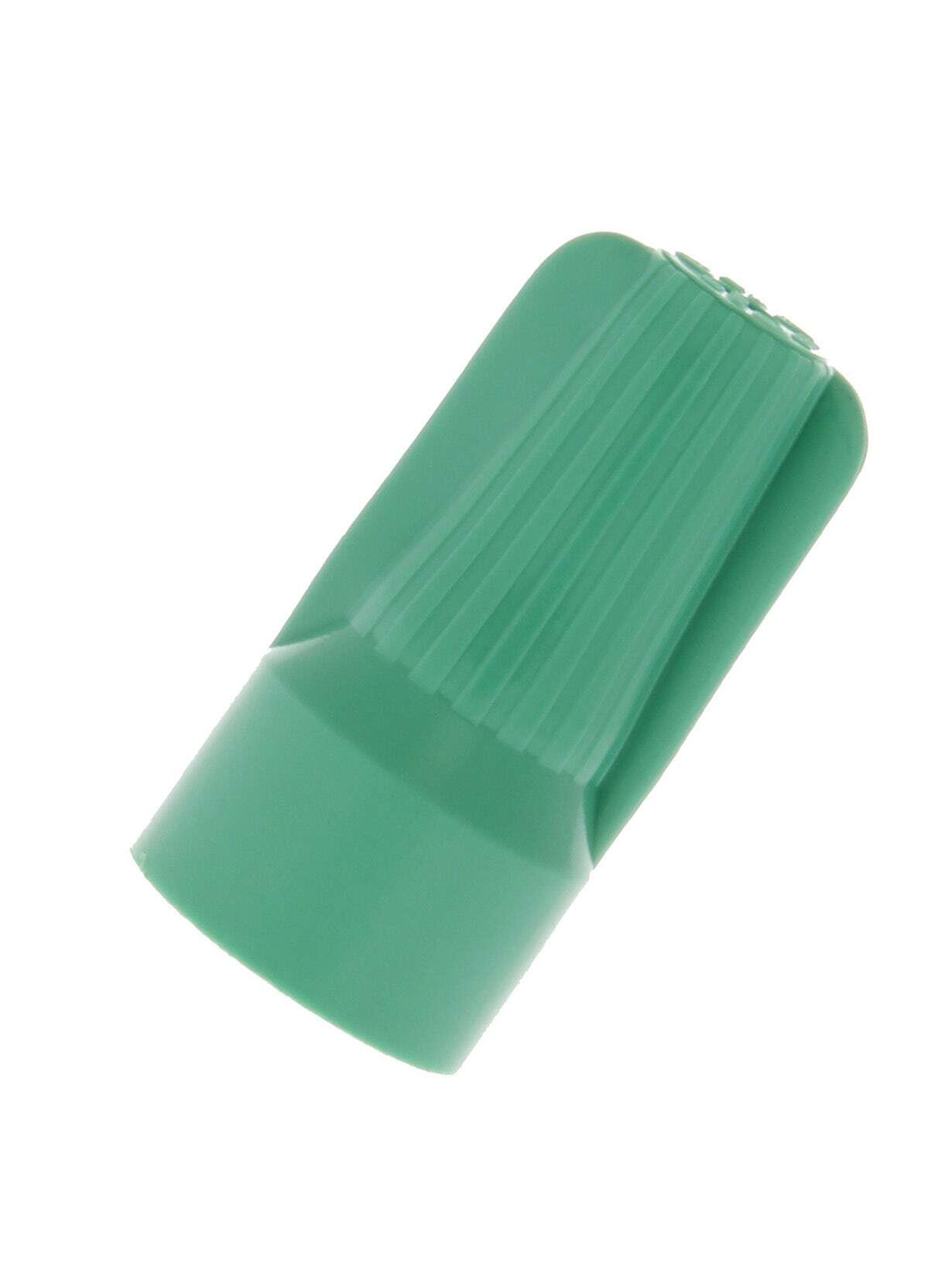

BGR-B B-Cap Grounding Wire Connector, Model BGR, Green, Box of 250
- MFR:
- Ideal Industries
- MFR #:
- BGR-B
- UPC:
- 781789453675
- Item #:
- 166828
BGR-B B-Cap Grounding Wire Connector, Model BGR, Green, Box of 250
- MFR #:
- BGR-B
- UPC:
- 781789453675
- Item #:
- 166828
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The B-CAP Wire Connector gets you in those hard-to reach spots comfortably, especially when youre retrofitting or updating. Slim, classic fins and an expanding interior spring give the B-CAP a secure grip with extra leverage, making it the most compact connector on the market for up to 5 #12 (Red Model B2).The unique, space-saving profile of the B-CAP makes it perfect for retrofit work and shallow boxes.The B-CAP also features a tough, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands. Additionally, the B-CAP can be removed for repeat usage on the same size or larger wire combinations.Three color-coded models handle from #20 gauge wire to #6 gauge wire.
| Catalog Number | BGR-B |
| Manufacturer | Ideal Industries |
| Brand | Buchanan |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Grounding And Bonding Applications |
| Color | Green |
| Conductor Range | 14 - 10 AWG, 2/14 AWG Min, 5/12 AWG Max |
| Material | Flame-retardant Polypropelene |
| Number of Conductors | 2 to 5 |
| Special Features | Features: Classic Fin Design Provides Secure Grip For Extra Leverage On Maximum Wire Combinations; Live-Action Spring Expands To Accept Wire Shape And Size No Pre-Twisting Required; Square-Wire Spring Threads Directly Onto Conductors For Fast, Secure Connections; Deep Skirt Protects Against Flash-Over And Turned-Back Strands For Maximum Dielectric Protection; Easily Removed For Repeat Usage On Same Size Or Larger Wire Combinations; Green-B Designed For Making Ground Connections And Bonding Non-Metallic Sheathed Cable; Model Number: BGR |
| Standard | CSA C22.2 #188, UL 467 Listed, RoHS |
| UPC | 781789453675 |
| GTIN | 00781789453675 |
| Environmental Conditions | Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F) |
