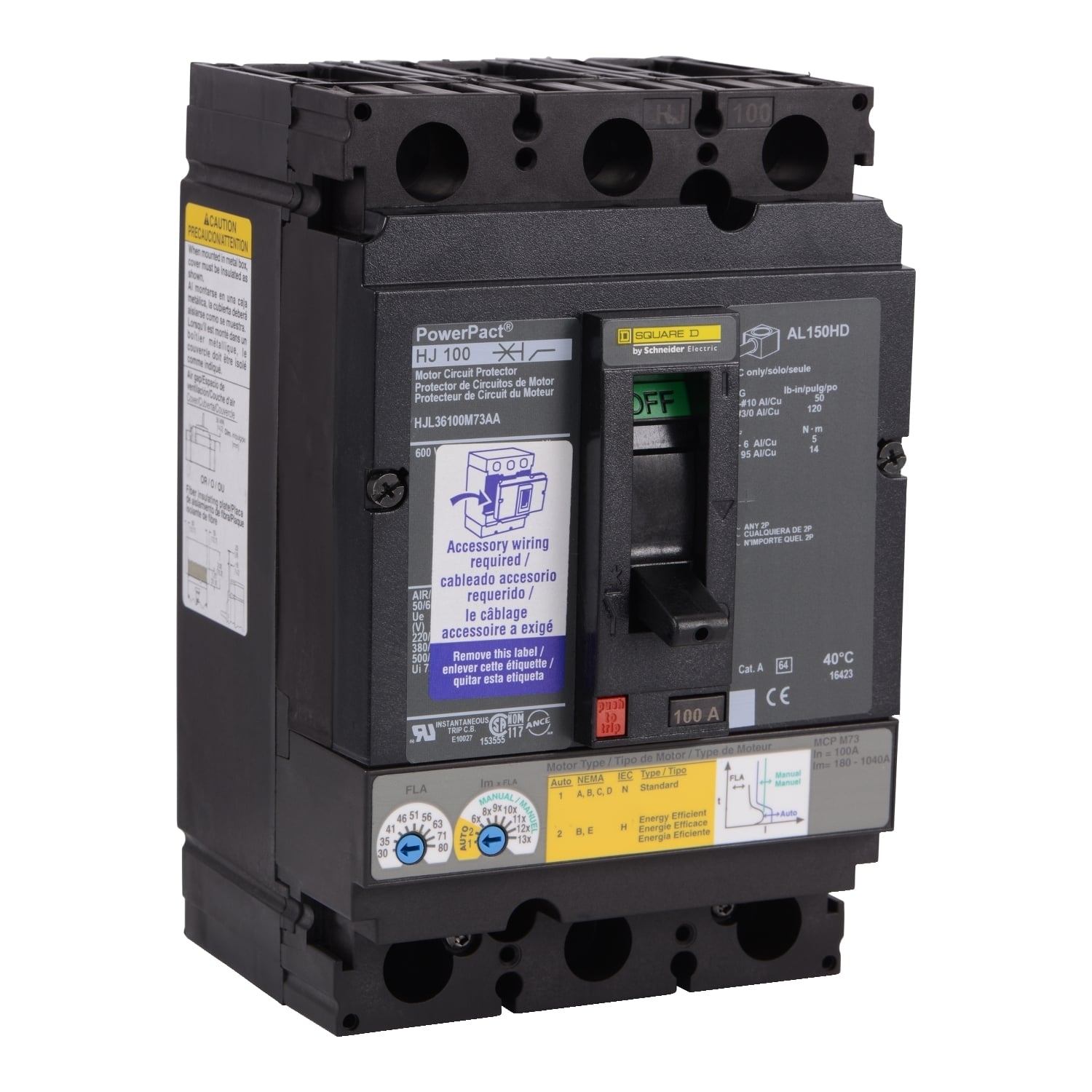

Motor circuit protector, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%, aux switch
- MFR:
- Schneider Electric
- MFR #:
- HJL36100M73AB
- UPC:
- 785901689843
- Item #:
- 1667330
Motor circuit protector, PowerPacT H, 100A, 3 pole, 600VAC, 25kA, lugs, thermal magnetic, 80%, aux switch
- MFR #:
- HJL36100M73AB
- UPC:
- 785901689843
- Item #:
- 1667330
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2,588.59
each
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. This unit includes a factory installed 2A/2B auxiliary switch. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Manuals and Documentation
| Catalog Number | HJL36100M73AB |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Distribution |
| Color | Black |
| Connection | Lugs, line;lugs, load; AWG 14...AWG 3/0 aluminium/copper terminal |
| Control | Toggle |
| Number of Poles | 3 |
| Special Features | Auxiliary switch 24 V AC/DC 2 NO + 2 NC cover frame;Modbus;Ethernet |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=268666357&lang=en-us |
| UPC | 785901689843 |
| GTIN | 00785901689843 |
| Item Type | Motor Circuit Protector |
| Trip Type | Thermal-magnetic |
