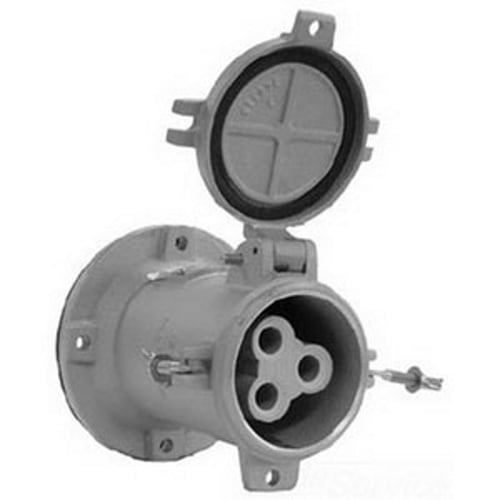

Pin and Sleeve Receptacle, 3-Phase S Grounding Style 1, Series: ADR, 600/250 VAC/VDC, 200 A, 50 hp, 50/400 Hz Frequency, 4 Pole, 4 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper-Free Aluminum, 6.63 in H x 8 in D Dimensions
MFR: Appleton Electric
MFR #: ADR20044RS
UPC: 781381711739
Item #: 166214
Pin and Sleeve Receptacle, 3-Phase S Grounding Style 1, Series: ADR, 600/250 VAC/VDC, 200 A, 50 hp, 50/400 Hz Frequency, 4 Pole, 4 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper-Free Aluminum, 6.63 in H x 8 in D Dimensions
MFR #: ADR20044RS
UPC: 781381711739
Item #: 166214
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$2860.51
each
Powertite Grounding Style 1 Receptacle, Number Of Poles: 4, Number Of Wires: 4, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT M
Manuals and Documentation
- Catalog Number
- ADR20044RS
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Amperage Rating
- 200
- Application
- For AP20044CD And AP20044E Plugs
- Connection
- Pressure Wire Terminal
- Material
- Copperfree (4/10 Of 1 PCT Maximum) Aluminum
- Mounting
- Box
- NEMA Rating
- 3, 3R, 4, 4X
- Number of Poles
- 4
- Number of Wires
- 4
- Phase
- 3
- Special Features
- For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 11/16 IN; Receptacle meets NEMA 3R with spring door closed and NEMA 3, 3R, 4, 4X with plug fully inserted and wing nuts fully tightened or cover closed with wing nuts fully tightened; Weatherproof spring door, raintight clamp cover
- Standard
- UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
- UPC
- 781381711739
- GTIN
- 00781381711739
- Item Type
- Grounding Style 1 Receptacle
- Temperature Rating
- -40 To 107 DEG C
- Voltage Rating
- 600 VAC At 50 - 400 HZ, 250 VDC
- Wire Size
- 2/0 AWG - 250 MCM
