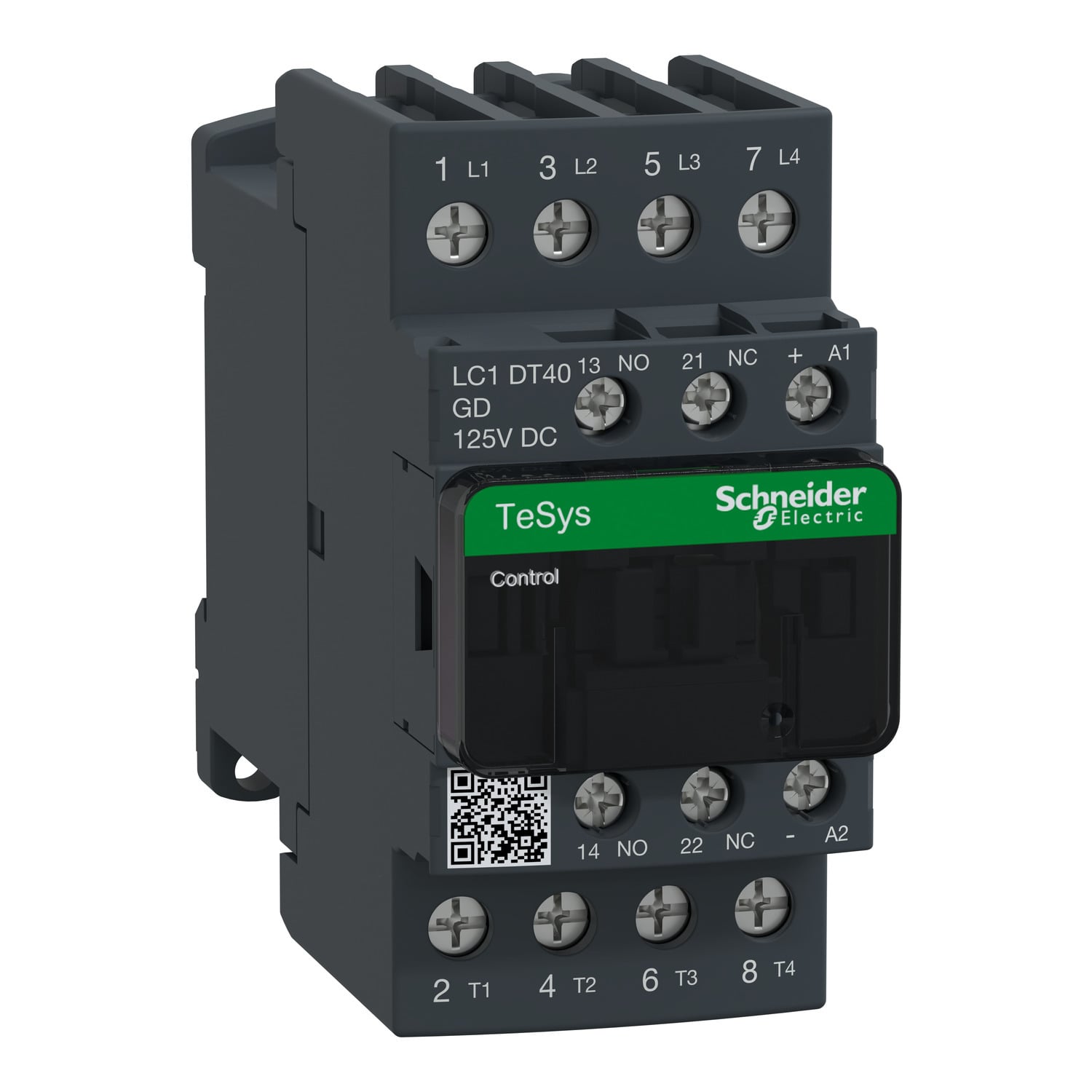

IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 4 NO, 125VDC coil, open style
IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 4 NO, 125VDC coil, open style
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 4 poles (4NO), for non-inductive load applications up to 40A/690V AC-1. They can be used to create motor starters for almost any type of application. It provides a 125V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Power contacts have a 40A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 4.21 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
- Catalog Number
- LC1DT40GD
- Manufacturer
- Schneider Electric
- Brand
- SCHNEIDER ELECTRIC
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Indonesia
- Made in USA
- No
- Application
- Resistive load
- Coil Voltage
- 125 V DC
- Connection
- Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end;power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end;power circuit: screw clamp terminals 1 2.5-16 mm² - cable stiffness: solid without cab
- Contact Configuration
- 1 NO + 1 NC;4 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
- Mounting
- Rail Plate
- Special Features
- Built-in bidirectional peak limiting diode suppressor
- GTIN
- 03389110330946
- Item Type
- Contactor
