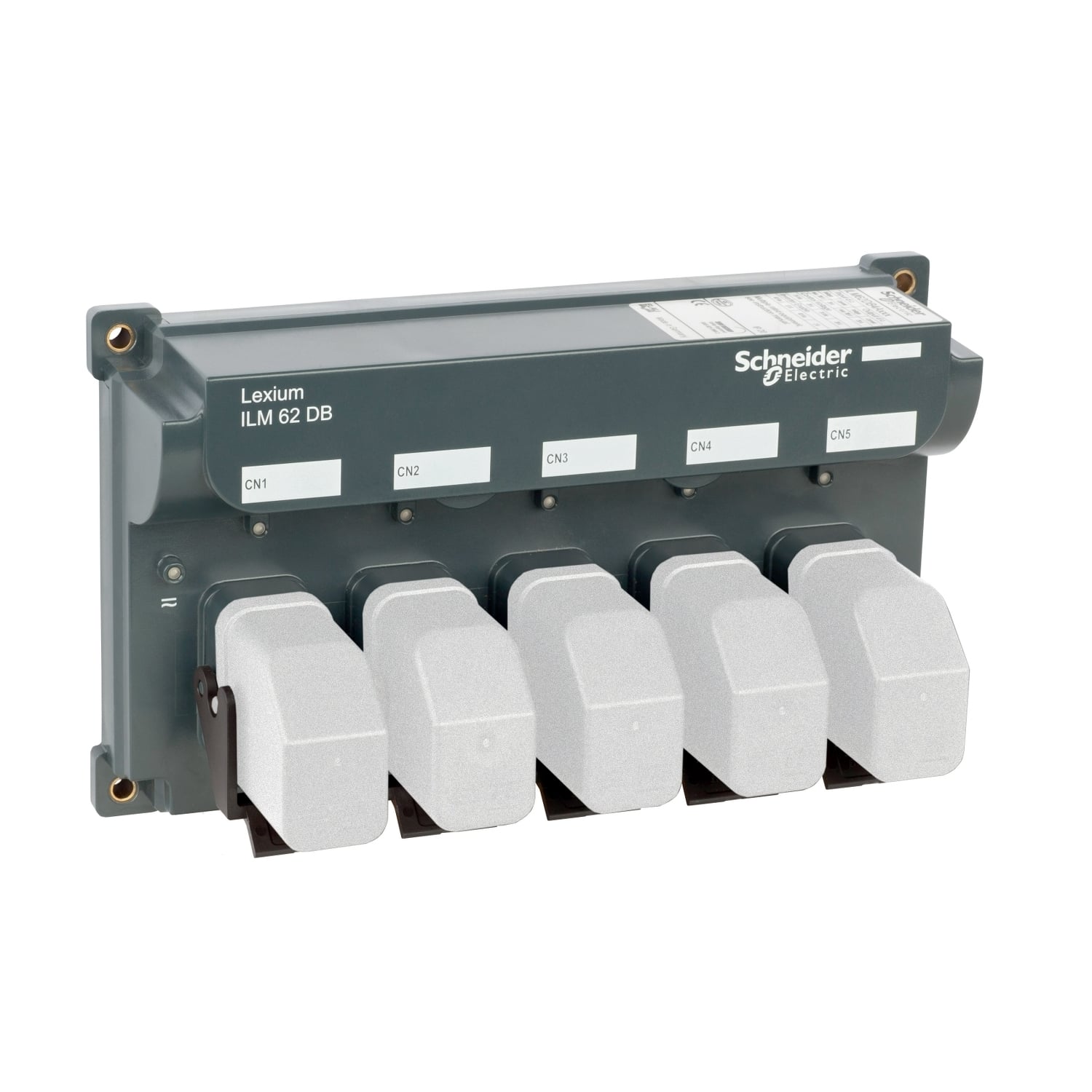

distribution box with 1 input and 4 outputs
- MFR:
- Schneider Electric
- MFR #:
- ILM62DB4A000
- Item #:
- 1655952
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the PacDrive 3 range, an offer of distribution boxes for Lexium 62 ILM daisy chains. This distribution block features 1 input and 4 outputs. The distribution block with SERCOS III physical interface at 100Mbit/s transmission rate. It is a distribution box with rated supply voltage of 250V to 700V, control circuit voltage of 24V DC and 20A input current. It is an IP65 rated product. The box is made of polycarbonate. Its dimensions are 230mm (width) x 151.4mm (depth) x 94mm (height). It weighs 0.85kg. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Manuals and Documentation
| Catalog Number | ILM62DB4A000 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Material | Polycarbonate |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=403579126&lang=en-us |
| GTIN | 03606485305530 |
