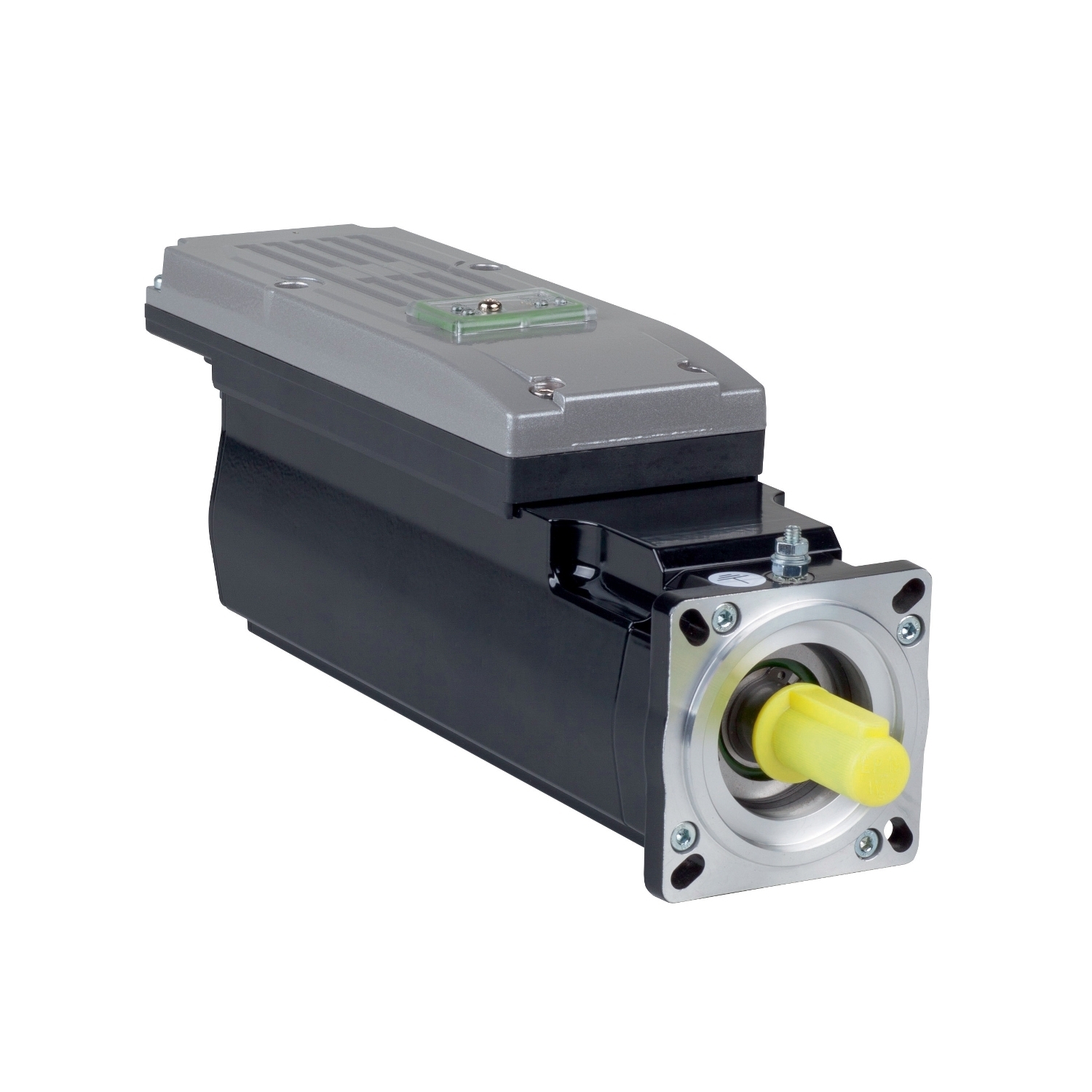

ILM0703P01A0000 ILM Series 3-Stack 6-Poles Untapped, 250 to 700 V, 1.5 A
- MFR:
- Schneider Electric
- MFR #:
- ILM0703P01A0000
- Item #:
- 1655948
ILM0703P01A0000 ILM Series 3-Stack 6-Poles Untapped, 250 to 700 V, 1.5 A
- MFR #:
- ILM0703P01A0000
- Item #:
- 1655948
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This product is part of the PacDrive 3 range, an offer of integrated servo motors for machines from 0.31kW to 1.91kW. The 6-pole integrated servo motor features 3 stacks with a maximum mechanical speed of 6000RPM, a continuous rated stall torque 2.2Nm and smooth shaft. It is an equipped with a single-turn SinCos Hiperface absolute encoder (128 periods per revolution) without holding brake. It is an integrated servo motor with a supply voltage of 250V to 700V, a continuous stall current of 3A and a maximum continuous power of 0.72kW. The shaft dimensions are 14mm (diameter) x 30mm (length). It is an IP54 rated product. The length of this product is 259mm and the centering collar dimensions are 2.5mm (depth) x 60mm (diameter) with 82mm mounting hole. It weighs 4.2kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. It supports international standard 70mm flange mount with a natural convection cooling system. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.
Manuals and Documentation
| Catalog Number | ILM0703P01A0000 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=415347475&lang=en-us |
| GTIN | 03606485293912 |
