NSYCRN108300T 1-Door Compact Enclosure, 800 mm W x 300 mm D x 1000 mm H, NEMA 1/2/3/3R/4/5/12/13, Steel
- MFR:
- Schneider Electric
- MFR #:
- NSYCRN108300T
- Item #:
- 1655900
NSYCRN108300T 1-Door Compact Enclosure, 800 mm W x 300 mm D x 1000 mm H, NEMA 1/2/3/3R/4/5/12/13, Steel
- MFR #:
- NSYCRN108300T
- Item #:
- 1655900
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

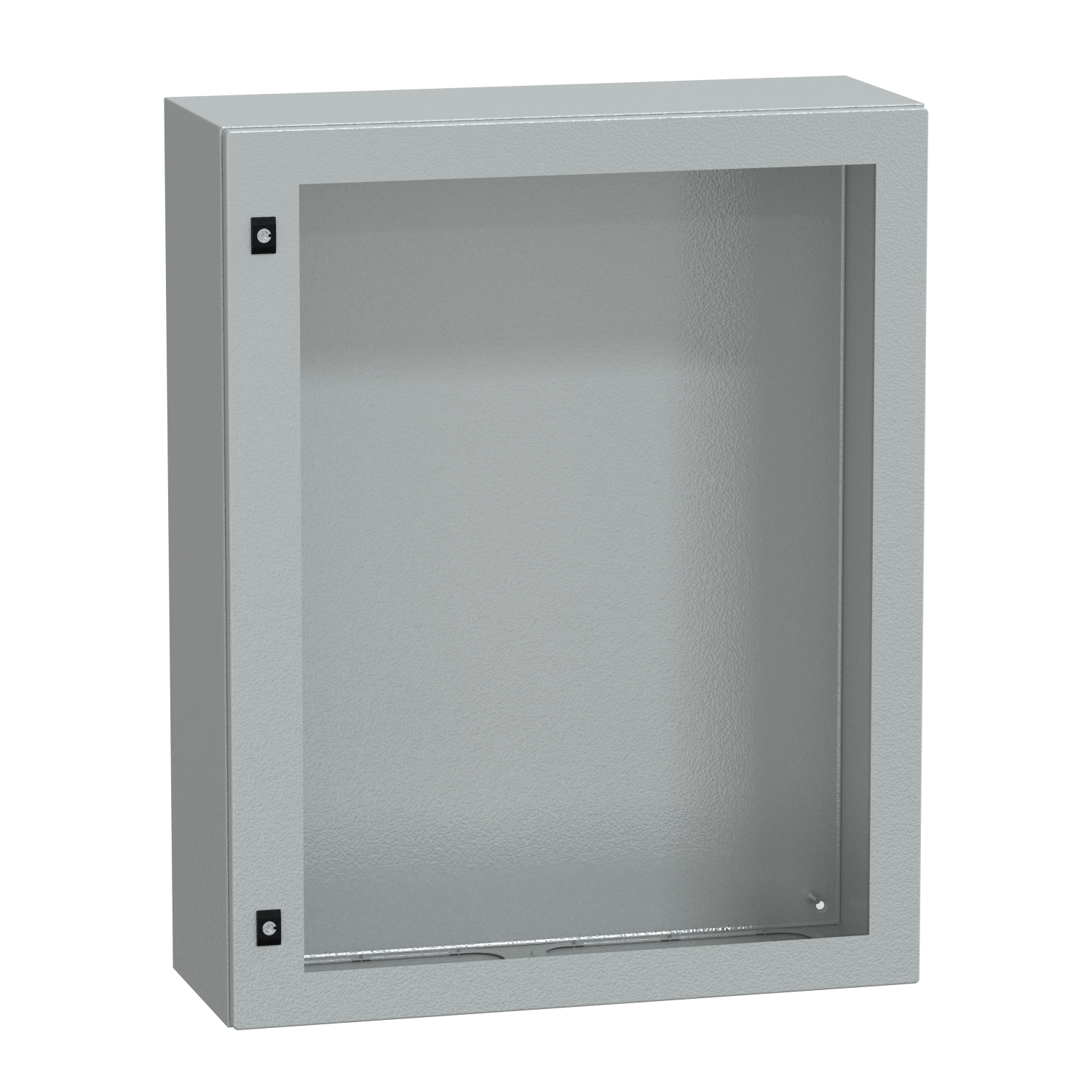

The Spacial CRN wall-mounting compact enclosure comes in grey colour and designed for multi-purpose application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 800 mm x (H) 1000 mm x (D) 300 mm. It features a back welded with double profile forming a protected sealed area, sides made from a single folded section. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 mm double-bar lock lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This compact enclosure is c.UL certified.
Manuals and Documentation
| Catalog Number | NSYCRN108300T |
| Manufacturer | Schneider Electric |
| Brand | Schneider Electric |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Spain |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=10176989&lang=en-us |
| GTIN | 03606480212666 |
