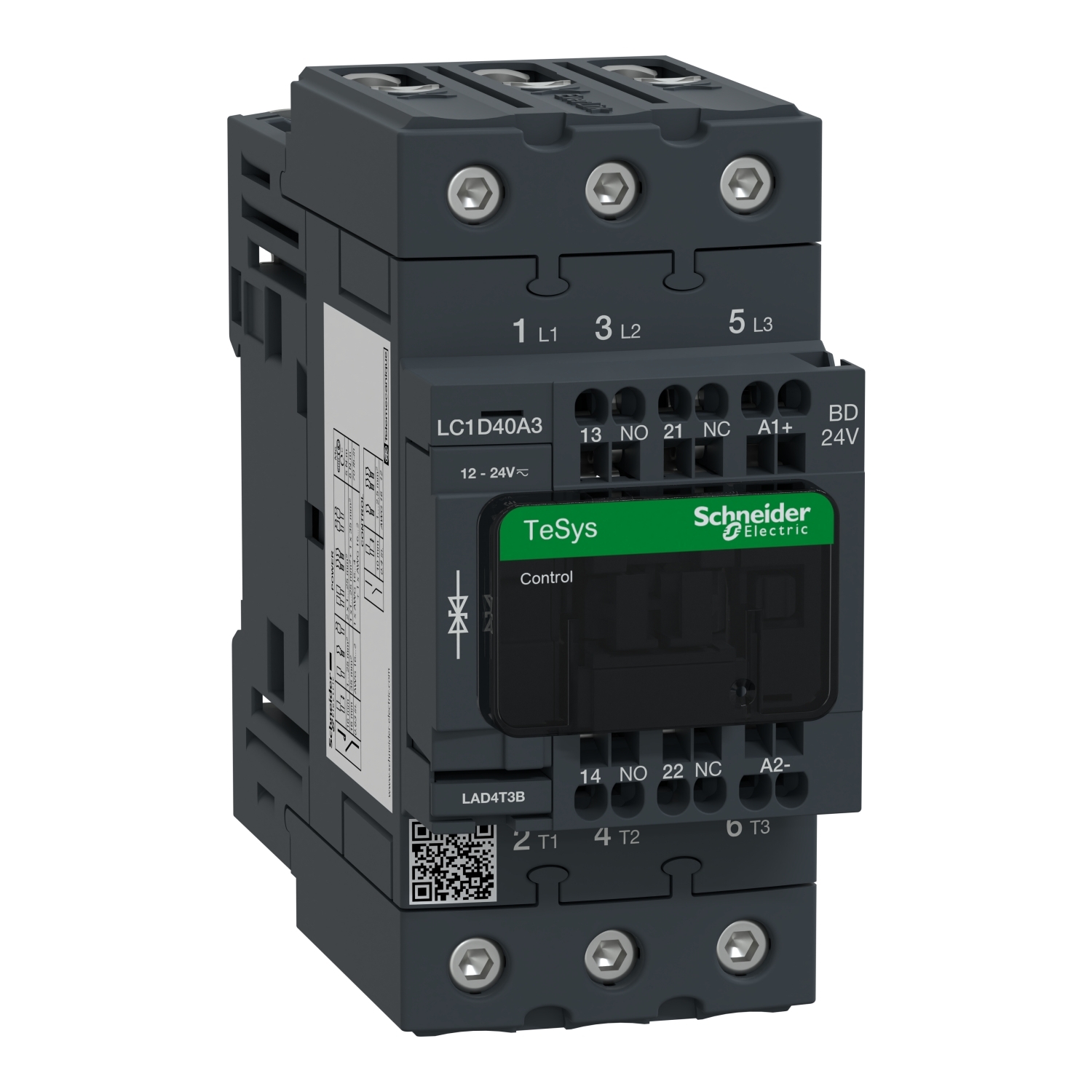

LC1D40A3BD TeSys D Contactor With Safety Cover, 24 V DC V Coil, 60 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D40A3BD
- Item #:
- 165239
LC1D40A3BD TeSys D Contactor With Safety Cover, 24 V DC V Coil, 60 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D40A3BD
- Item #:
- 165239
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3/3e (18.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by spring terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Contactor is rated for 10HP at 200 to 208VAC, 10HP at 240VAC, 30HP at 480VAC and 30HP at 600VAC three phase. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Spring terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.17 inches wide and 4.72 inches deep. It weighs 2.04 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1D40A3BD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 24 V DC |
| Connection | Control circuit: spring terminals 1 0.75-2.5 mm² - cable stiffness: flexible without cable end;control circuit: spring terminals 2 0.75-2.5 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end;power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end;power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Built-in bidirectional peak limiting diode suppressor |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472061&lang=en-us |
| GTIN | 03389119408608 |
| Item Type | Contactor |
