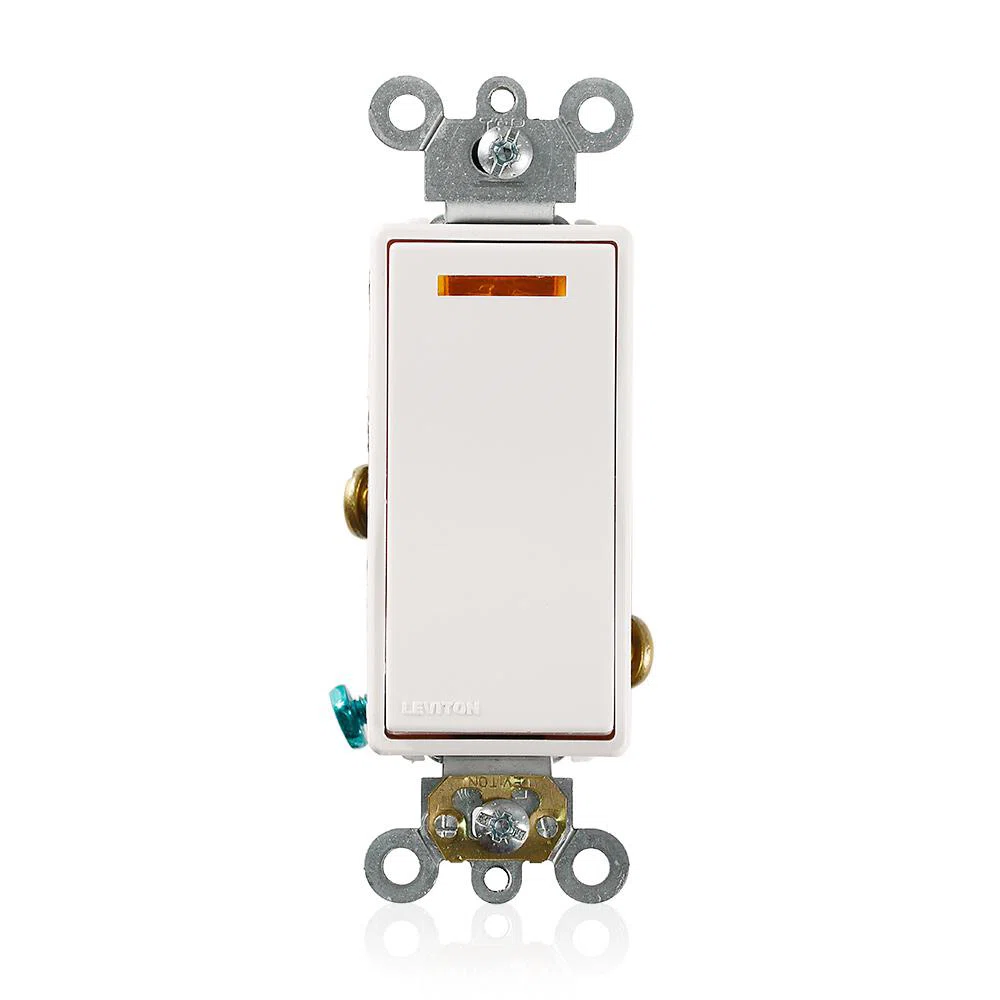

5649-2W Lighted Handle Self-Grounding Illuminated AC Quiet Switch, 277 V AC, 20 A, 2 hp Power Rating
- MFR:
- Leviton
- MFR #:
- 5649-2W
- UPC:
- 078477789100
- Item #:
- 165232
5649-2W Lighted Handle Self-Grounding Illuminated AC Quiet Switch, 277 V AC, 20 A, 2 hp Power Rating
- MFR #:
- 5649-2W
- UPC:
- 078477789100
- Item #:
- 165232
Availability
| Location | Available Qty |
|---|---|
| Available | 6 ea |
$44.39
each
Decora Plus™ devices combine designer styling with all the benefits of rugged commercial grade construction. The robust product offering includes single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
Manuals and Documentation
Features
- Illuminated when load is OFF
- Back and side wiring terminals accept both solid and stranded wire for easy installation
- Two ground connection options a green grounding screw and a self-grounding clip
| Manufacturer Part Number | 5649-2W |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477789100 |
| Country Of Origin | MX |
| Amperage Rating | 20 A |
| Color | White |
| Dimensions | 4.06 in H x 1.76 in W x 1.6 in D |
| Material | Thermoplastic |
| Type | Lighted Handle Self-Grounding Illuminated |
| Voltage Rating | 277 V AC |
| Alternative Part Number | 7324526 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 10 years Limited |
| Standards Approvals | ANSI C73 | UL 20 File No. E7458 | CSA C22.2 No. 111 File No. 152105/LR3413 | NOM 057 | Federal Specification WS896 | NEMA WD1/WD6 | UL94 V-2 Flammability Rating |
| Application | Commercial Applications |
| Action | Maintained/Momentary |
| Actuator | Rocker |
| Contact Rating | 20 A at 277 V AC |
| Environmental Conditions | -40 to 120 deg C Operating Temperature |
| Mounting | Surface |
| Number Of Poles | 1 |
| Operating Cycles | 50000 Cycles |
| Power Rating | 2 |
| Terminal Type | Back/Side Wire |
