SQUARE D

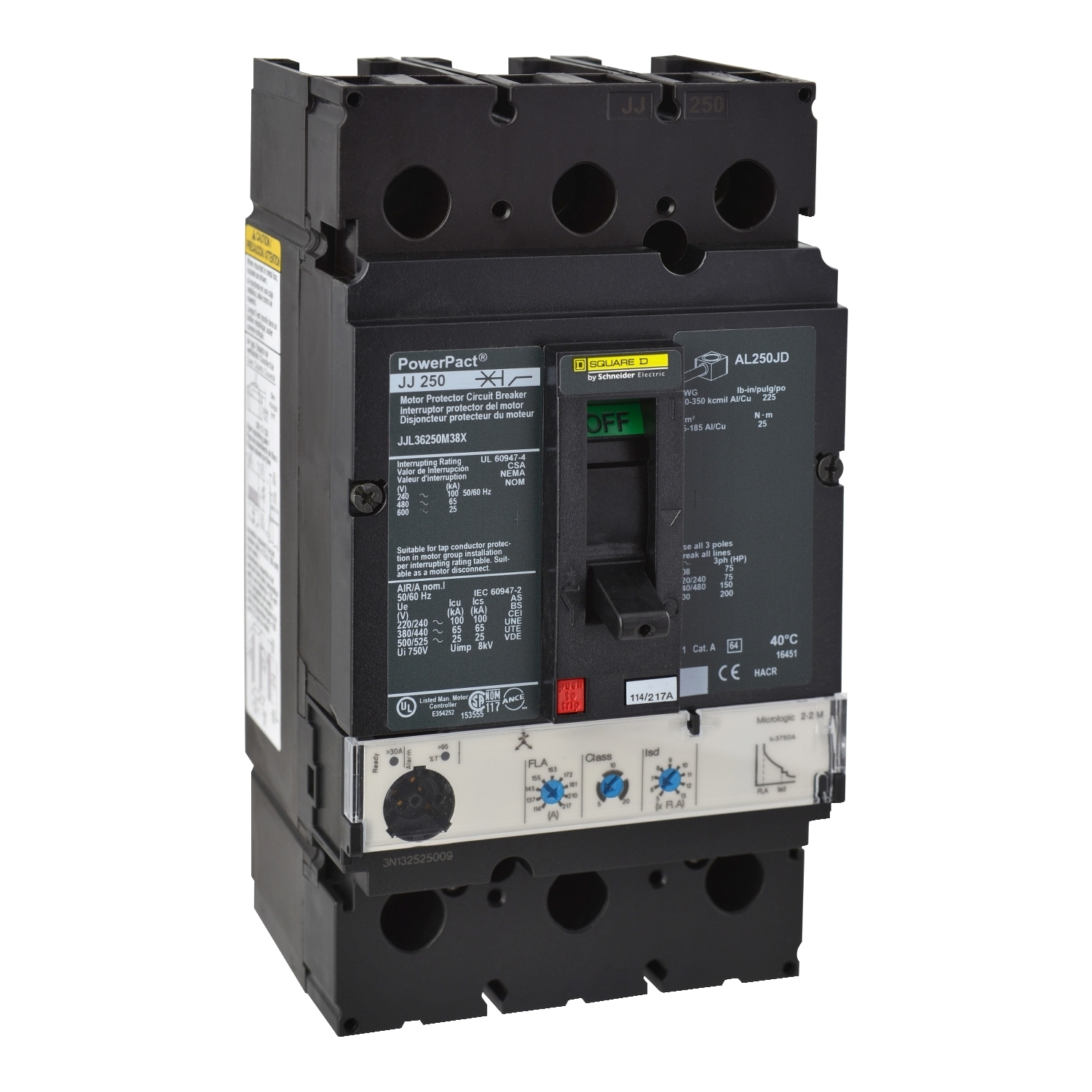

JJL36250M38X Motor Circuit Breaker, 250 Amp, 3 Pole, 600V

MFR:
Schneider Electric
MFR #:
JJL36250M38X
UPC:
785901950592
Item #:
165202

Availability

Location Available Qty
Available Available to Order
$3,467.75 each

PowerPacT J-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. Additionally, Micrologic 2.2M trip units provide thermal protection for overload and phase unbalance. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the PowerPacT J circuit breakers. This unit has lugs on both the line and load side. This PowerPacT J, 250A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. The breaker has a continuous current rating of 80%. PowerPacT J motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number JJL36250M38X
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Lugs, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals
Control Toggle
Number of Poles 3
Special Features Modbus
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=92980468&lang=en-us
UPC 785901950592
GTIN 00785901950592
Item Type Motor Circuit Protector
Trip Type Thermal-magnetic
