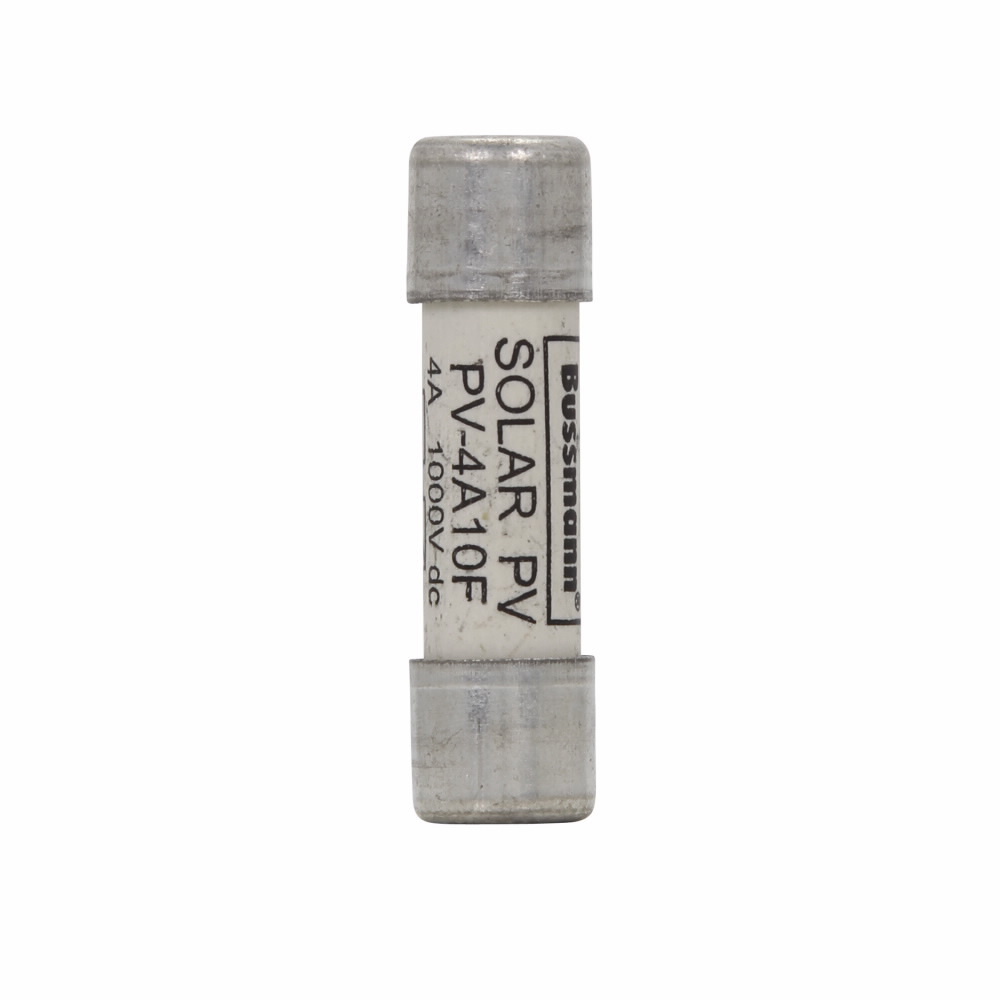

PV-4A10F High Speed Photovoltaic Fuse, 4 A, 1 kV AC, 50 kA Interrupt, Class: gPV
- MFR:
- Eaton Bussmann
- MFR #:
- PV-4A10F
- UPC:
- 051712245197
- Item #:
- 1651547
PV-4A10F High Speed Photovoltaic Fuse, 4 A, 1 kV AC, 50 kA Interrupt, Class: gPV
- MFR #:
- PV-4A10F
- UPC:
- 051712245197
- Item #:
- 1651547
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$93.62
each
Eaton's Bussmann series photovoltaic gPV solar fuses are specifically designed to protect DC system up to 1500 V d.c. They are suitable for the DC protection of solar panels, combiner boxes, recombiner units and battery storage.
| Catalog Number | PV-4A10F |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton |
| Sub Brand | Bussmann Series |
| Country of Origin | India |
| Made in USA | No |
| Amperage Rating | 4 |
| Application | Generation - Renewable Energy - Alternative Energy|Generation - Renewable Energy - Storage Systems|Generation - Renewable Energy - Solar |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 50 kAIC |
| Material | Ceramic |
| Special Features | Minimum interrupting rating 1.3 x In, Time constant: 1-3 ms |
| Standard | UL 2579 ,UL Listed file E121785 ,UL Listed ,CSA Certified ,IEC Rated ,CCC Marked ,UL Listed ,UL 2579 ,CSA Certified ,CCC Marked ,IEC-Einstufung ,UL Listed file E121785,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung |
| UPC | 051712245197 |
| GTIN | 00051712245197 |
| Item Type | High speed photovoltaic fuse |
| Dimensions | 1.4961 IN X 0.3937 IN X 0.3937 IN |
| Weight UOM | Grams |
| Size | 10.30 mm Diameter X 38.00 mm Length |
| Voltage Rating | 1000 Vdc |
