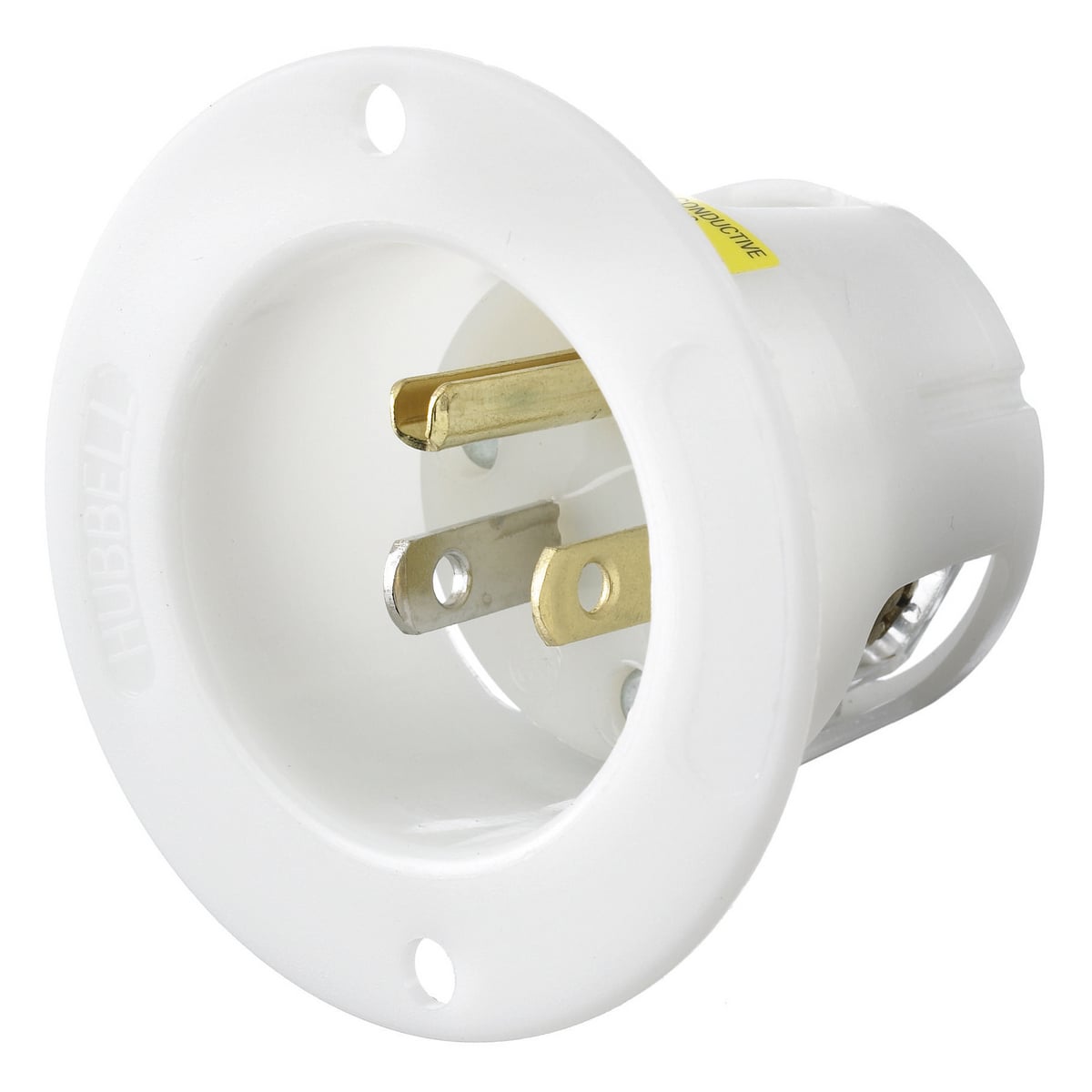

HBL5278C 1-Phase Male Grounding Straight Blade Screw Mount Flanged Inlet With Mounting Screw, 125 V AC, 15 A, 2 Poles, 3 Wires, White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL5278C
- UPC:
- 783585173504
- Item #:
- 164768
HBL5278C 1-Phase Male Grounding Straight Blade Screw Mount Flanged Inlet With Mounting Screw, 125 V AC, 15 A, 2 Poles, 3 Wires, White
- MFR #:
- HBL5278C
- UPC:
- 783585173504
- Item #:
- 164768
Availability
| Location | Available Qty |
|---|---|
| Available | 15 ea |
$31.83
each
Manuals and Documentation
| Catalog Number | HBL5278C |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 15 |
| Application | Extra Heavy Duty Industrial |
| Color | White |
| Connection | Screw Terminals |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Screw |
| NEMA Rating | 5 |
| Number of Poles | 2 |
| Number of Wires | 3-Wire |
| Phase | 1 |
| Special Features | Standard Product |
| Standard | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186 |
| UPC | 783585173504 |
| GTIN | 00783585173504 |
| Item Type | Flanged Inlet |
| Size | 1.71 in x 1.69 in x 1.71 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 125 |
| Wattage | 1,875 W |
| Wire Size | #18 AWG to #12 AWG |
| Cross Reference Products | 5278SS, 5278-C, 5278-C |
