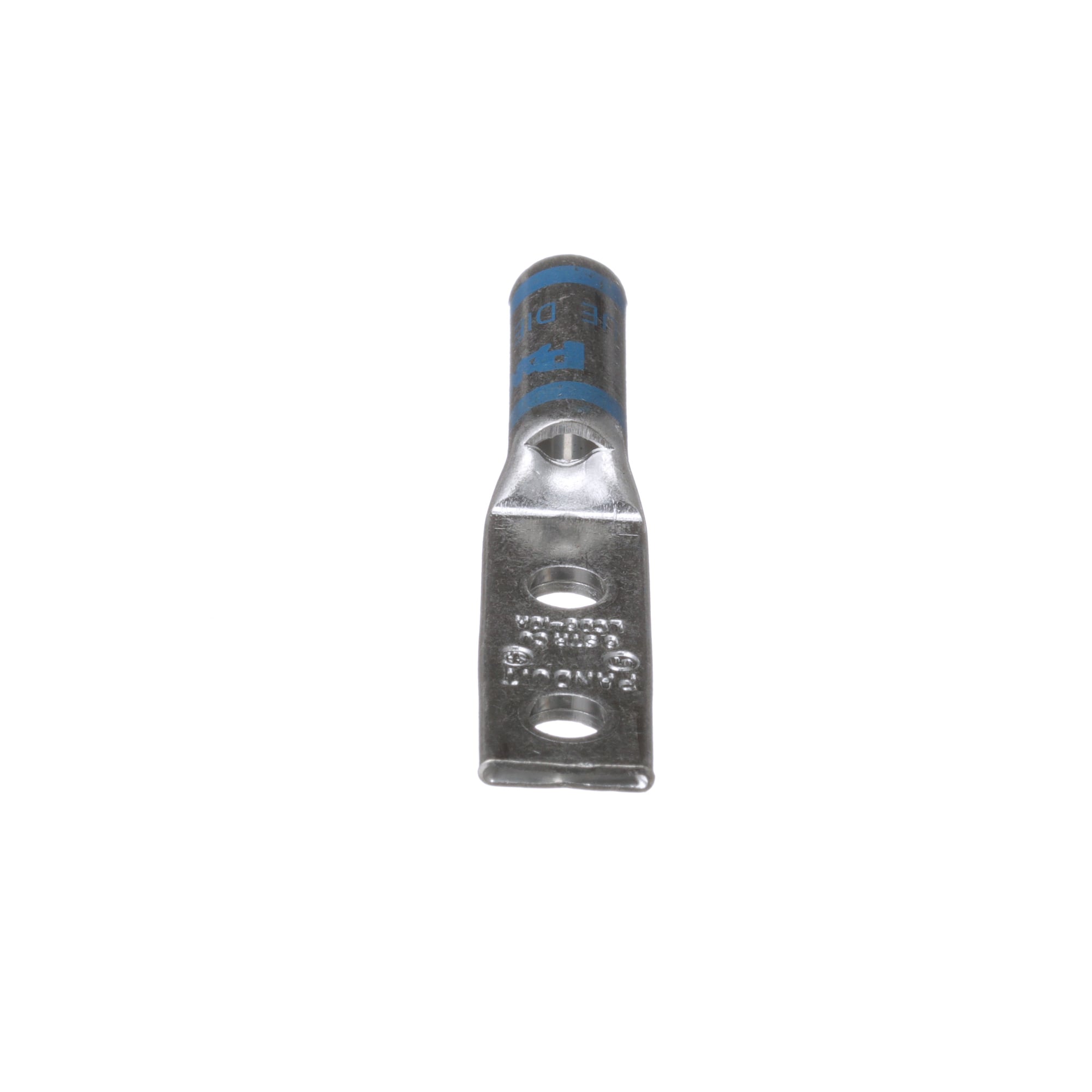

LCD6-10A-L Pan-Lug 2-Hole Compression Lug Connector With Inspection Window, 6 AWG Stranded Copper Conductor, Die Code: P24, 0.19 in Stud, Tin Plated Copper
- MFR:
- Panduit
- MFR #:
- LCD6-10A-L
- UPC:
- 074983383085
- Item #:
- 164595
LCD6-10A-L Pan-Lug 2-Hole Compression Lug Connector With Inspection Window, 6 AWG Stranded Copper Conductor, Die Code: P24, 0.19 in Stud, Tin Plated Copper
- MFR #:
- LCD6-10A-L
- UPC:
- 074983383085
- Item #:
- 164595
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$9.8841
each
The LCD6-10A-L Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
| Catalog Number | LCD6-10A-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Material | Tin-Plated Copper |
| Number of Holes | 2 |
| Special Features | Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Standard | UL listed to 486A-486B File #E52164 and CSA certified C22.2 No. 65-13 |
| UPC | 074983383085 |
| GTIN | 00074983383085 |
| Item Type | Compression Lug |
| Size | #6 AWG Code |
| Stud Size | #10 IN |
