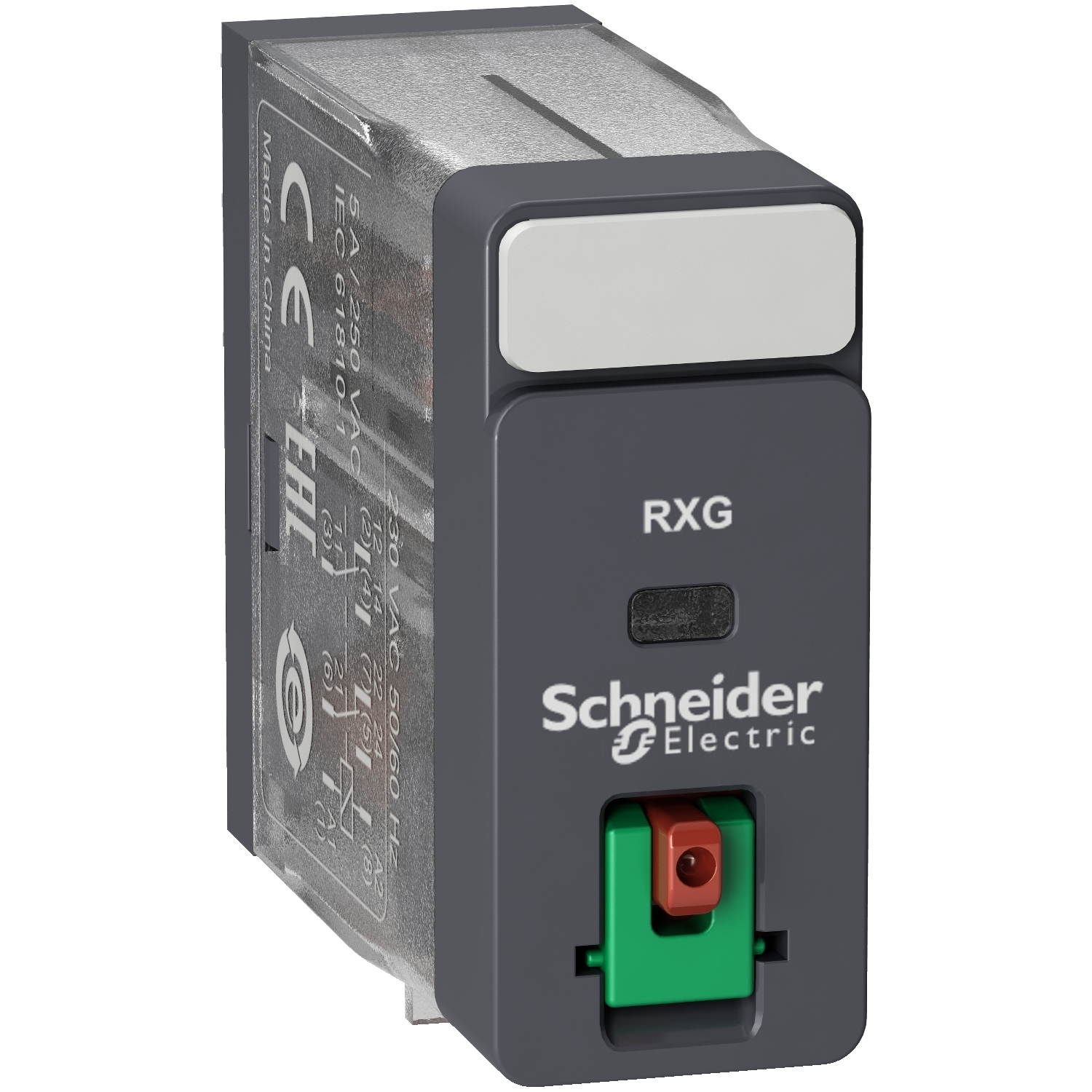

RXG21B7 Zelio RXG Series General Purpose Interface Plug-In Relay With Lockable Test Button, Standard Cover, 5 A, 2CO 2 Form C DPDT Contact, 24 VAC V Coil
- MFR:
- Schneider Electric
- MFR #:
- RXG21B7
- Item #:
- 1644935
RXG21B7 Zelio RXG Series General Purpose Interface Plug-In Relay With Lockable Test Button, Standard Cover, 5 A, 2CO 2 Form C DPDT Contact, 24 VAC V Coil
- MFR #:
- RXG21B7
- Item #:
- 1644935
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$11.85
each
This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A. """"""""""
Manuals and Documentation
| Catalog Number | RXG21B7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | United States |
| Made in USA | Yes |
| Contact Configuration | 2 C/O |
| Operating Cycles | <= 1800 cycles/hour under load;<= 18000 cycles/hour no-load |
| Resistance | 260 Ohm +/- 10 % |
| Standard | 20 gn in operation;100 gn not in operation |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=395923118&lang=en-us |
| GTIN | 03606480688997 |
| Item Type | Plug-in relay |
