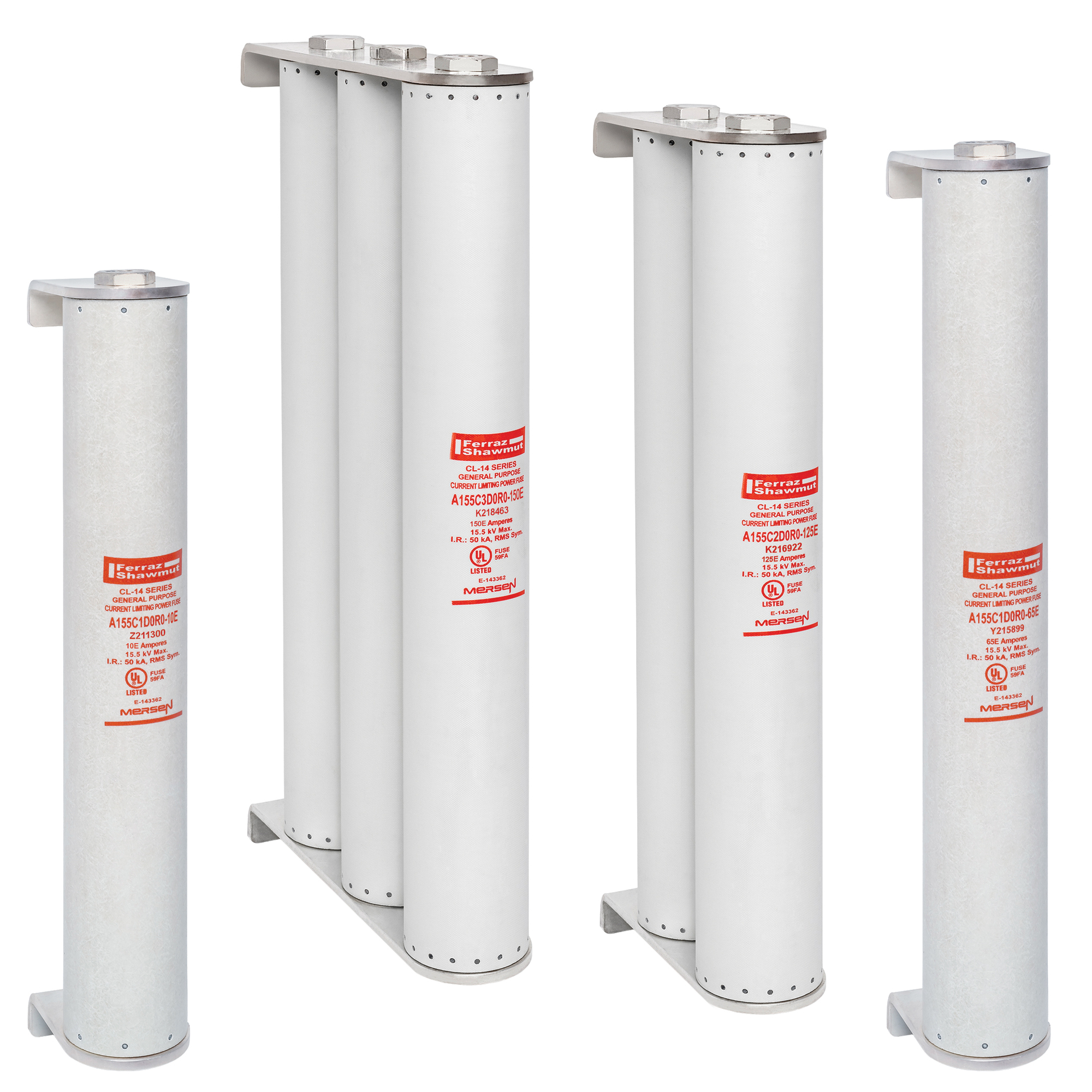

A155C2D0R0-200E Amp-Trap CL-14D0R0 2-Barrel General Purpose Medium Voltage Transformer Protection Fuse, 200 A, 15.5 kV AC, 50 kA Interrupt, Class: E, Ferrule Body
- MFR:
- Mersen
- MFR #:
- A155C2D0R0-200E
- UPC:
- 782001802707
- Item #:
- 164392
A155C2D0R0-200E Amp-Trap CL-14D0R0 2-Barrel General Purpose Medium Voltage Transformer Protection Fuse, 200 A, 15.5 kV AC, 50 kA Interrupt, Class: E, Ferrule Body
- MFR #:
- A155C2D0R0-200E
- UPC:
- 782001802707
- Item #:
- 164392
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Medium Voltage E-Rated Fuse 15500VAC 200A Clip-lock Series: D0R0 2 Barrels Visual Indicator Amp-Trap
Manuals and Documentation
| Catalog Number | A155C2D0R0-200E |
| Manufacturer | Mersen |
| Brand | Mersen |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 200 |
| Application | Protection for 5.5kV to 15.5kV transformers or distribution systems |
| Connection | Blade |
| Interrupt Rating | 50 KA |
| Mounting | Clip |
| Special Features | UL listed for compatibility with UL listed equipment Clip-lock mounting for reliable high integrity connection into circuit Current-limiting for superior equipment protection Non-venting for silent operation Metal embossed catalog number and manufacturing date for lasting identification Blown-fuse indicator to give positive identification of open fuse 2 lb tripped force - 0.50 Inch |
| Standard | Some UL Listed to standard File E143362 |
| UPC | 782001802707 |
| GTIN | 00782001802707 |
| Item Type | General Purpose Clip-Lock Fuses for Transformer Protection |
| Size | 22.81 x 3 x 7.94 |
| Type of Indicators | Visual Indicator |
| Voltage Rating | 15500 |
