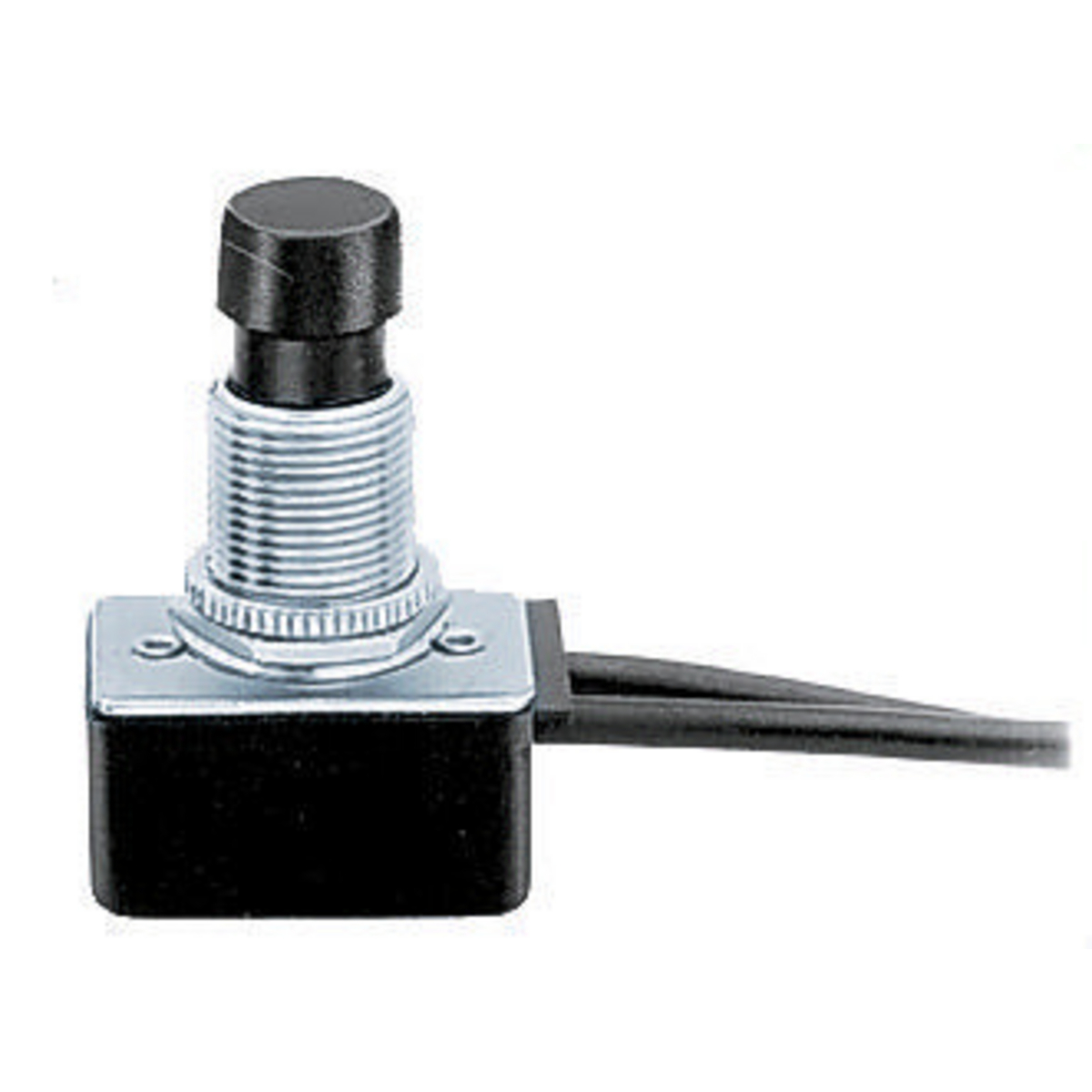

HBL11PBWL HBL General Purpose Non-Metallic Single Throw Standard Pushbutton Switch, 120/125/250 V AC, 4/8/10 A, 1000 W Power Rating, 2-Position Contact
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL11PBWL
- UPC:
- 783585016696
- Item #:
- 164385
HBL11PBWL HBL General Purpose Non-Metallic Single Throw Standard Pushbutton Switch, 120/125/250 V AC, 4/8/10 A, 1000 W Power Rating, 2-Position Contact
- MFR #:
- HBL11PBWL
- UPC:
- 783585016696
- Item #:
- 164385
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$18.21
each
Manuals and Documentation
| Catalog Number | HBL11PBWL |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Actuator | Push Button |
| Application | On/Off |
| Color | Metallic |
| Connection | Wire Leads |
| Contact Configuration | Two Position |
| Contact Rating | As Indicated |
| Interrupt Rating | 4A 250V AC, 8A 125V, 10A 120V AC |
| Material | Non-Metallic Button |
| Mounting | Panel Mount |
| Number of Poles | 1 |
| Operating Cycles | Not Rated |
| Special Features | Standard Product |
| Standard | UL Listed |
| UPC | 783585016696 |
| GTIN | 00783585016696 |
| Item Type | General Purpose |
| Size | 1.5 in x 0.98 in x 0.64 in |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| Operating Temperature | Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact |
| Voltage Rating | 250/125/120 |
| Wattage | 1000 W |
