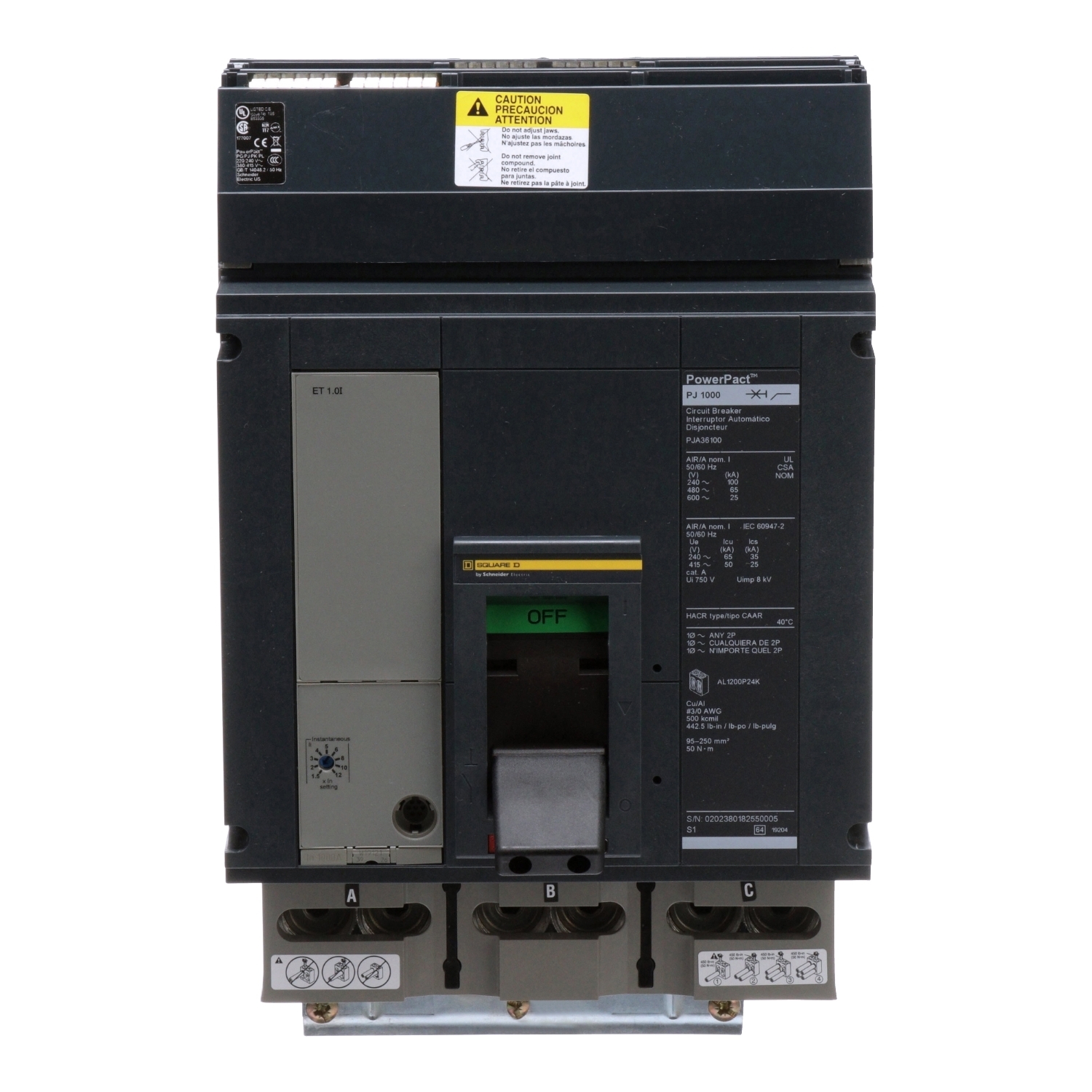

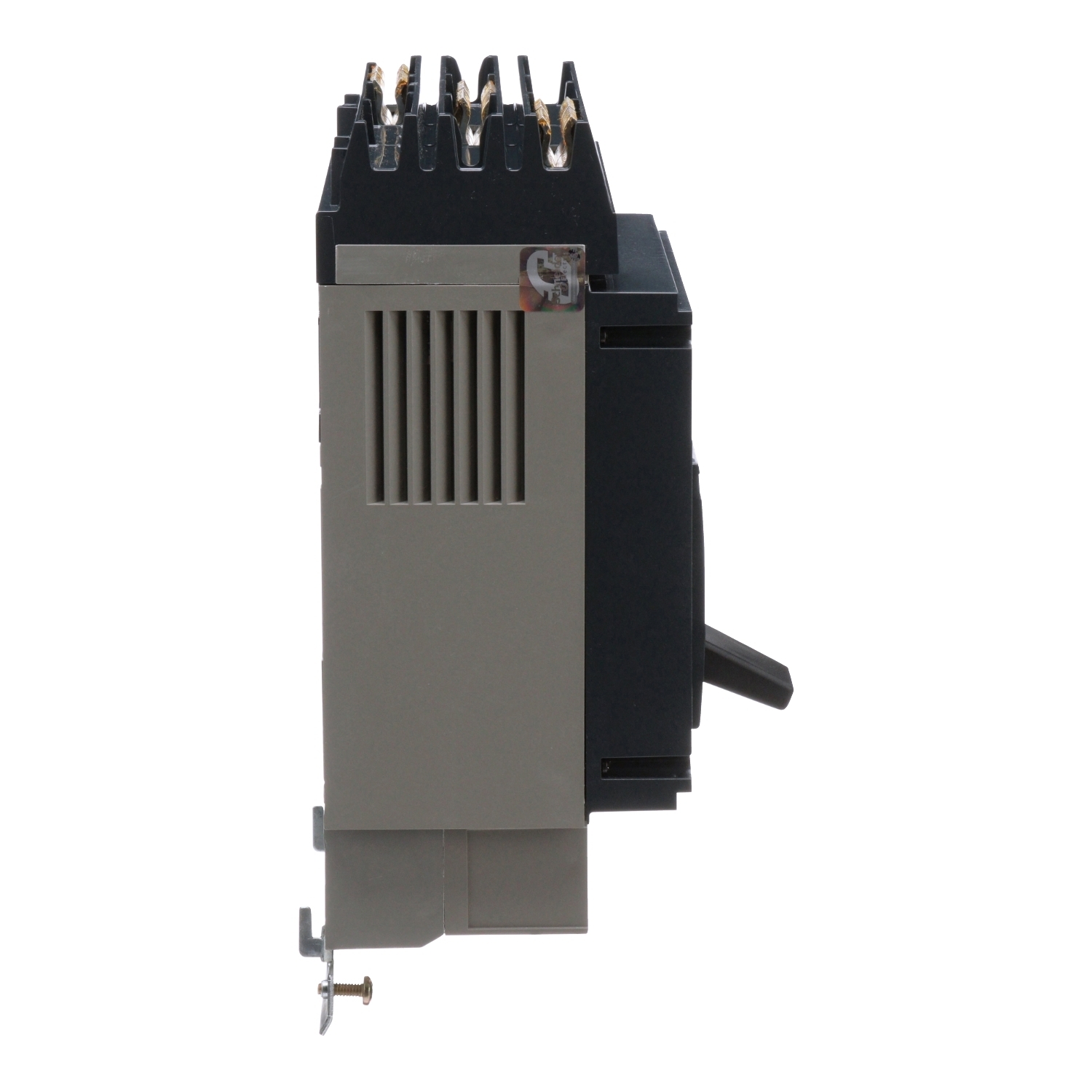

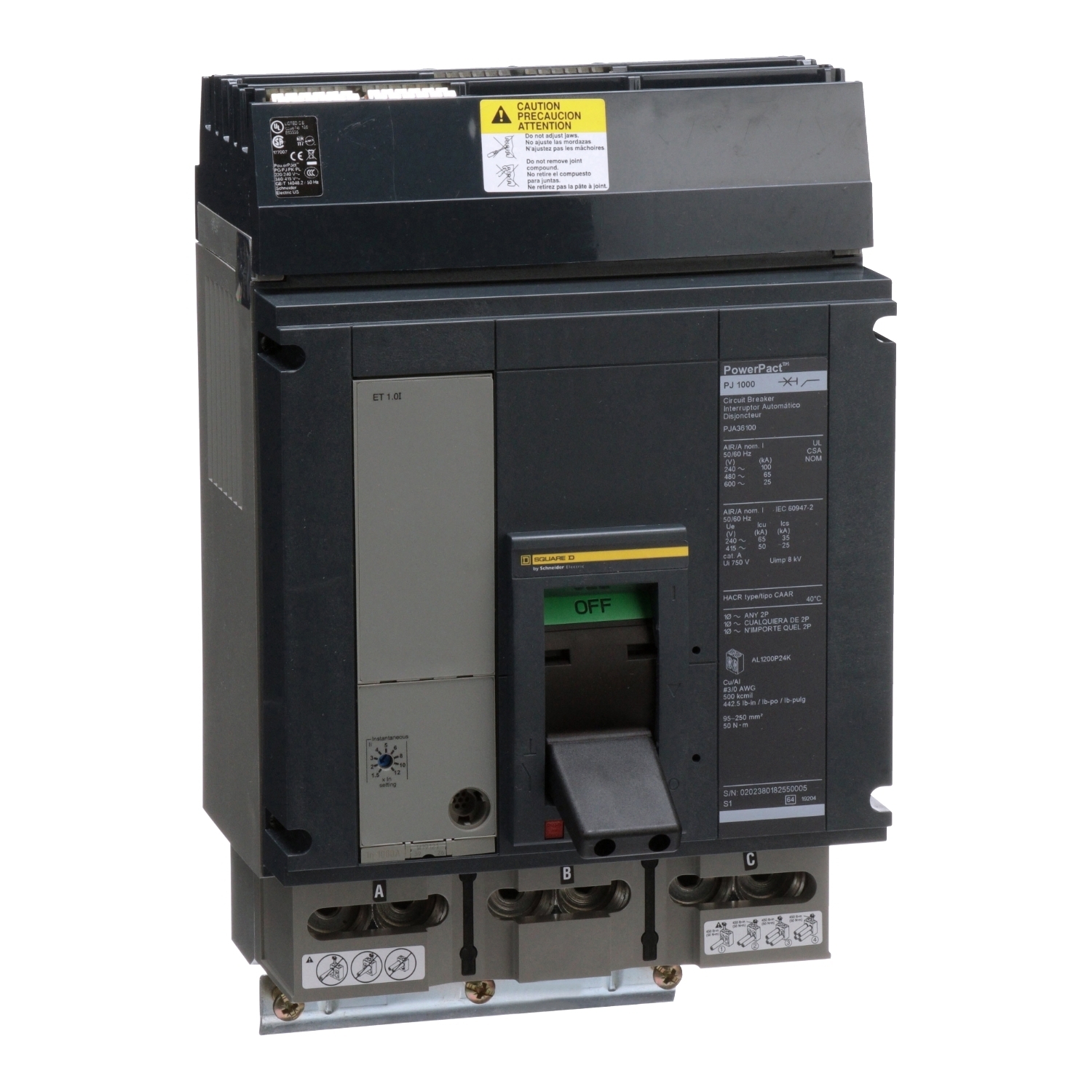

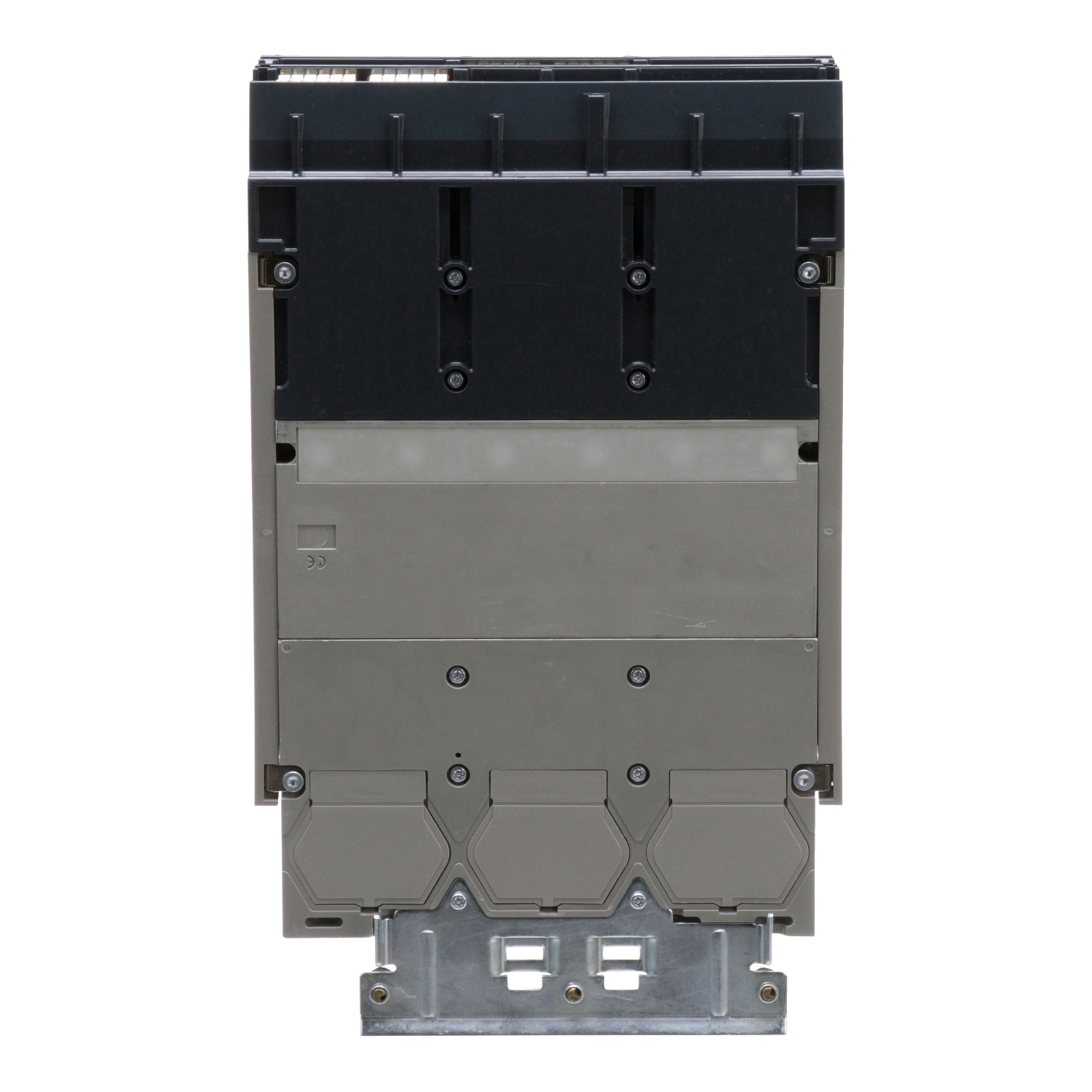

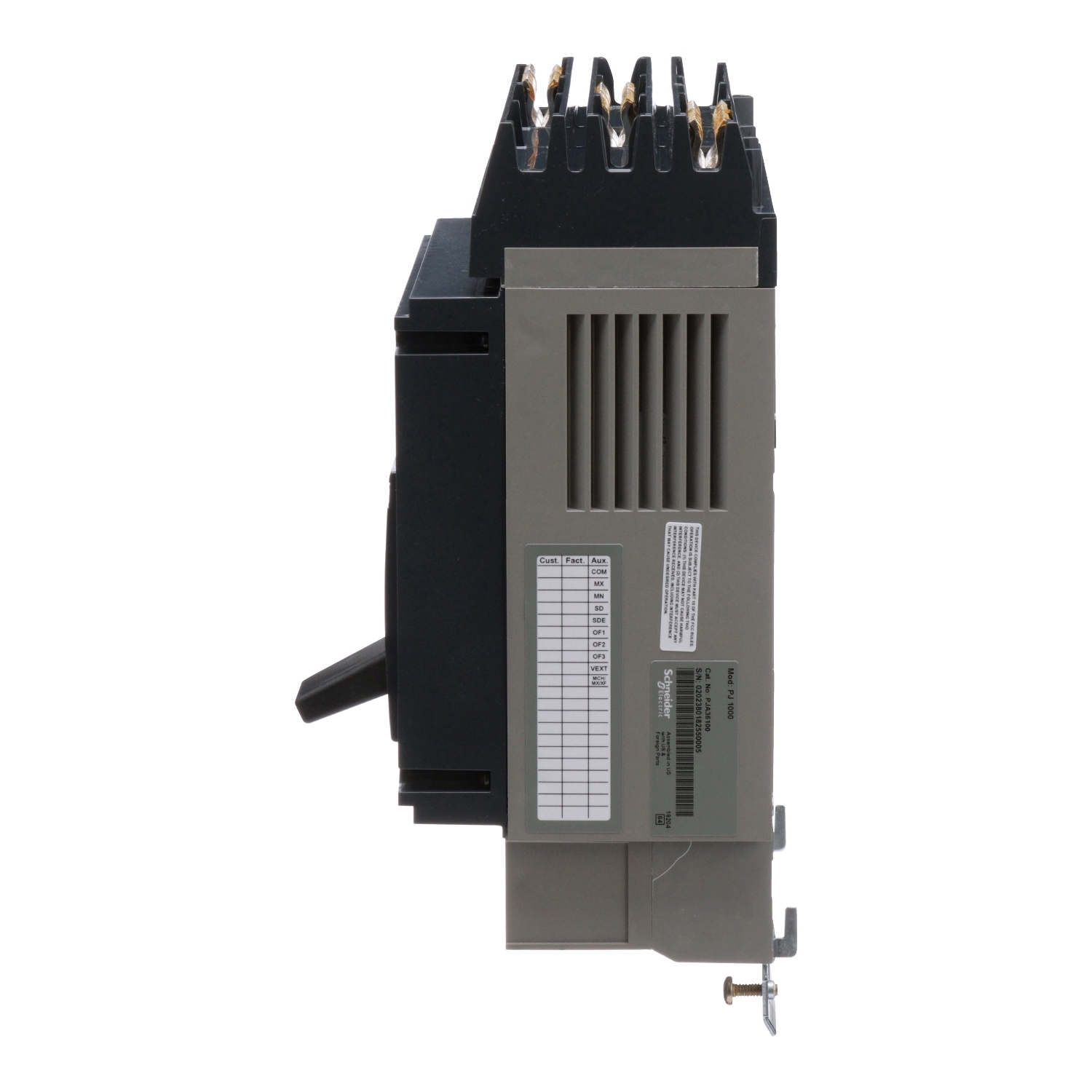

PJA36100 Molded Case Circuit Breaker, 1000 Amp, 3 Pole, 600V
PJA36100 Molded Case Circuit Breaker, 1000 Amp, 3 Pole, 600V
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacTP-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT P circuit breakers are available in 2, 3, and 4-pole unit mount, I-Line, or drawout construction. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT P circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals and Documentation
- Catalog Number
- PJA36100
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Mexico
- Made in USA
- No
- Actuator
- Toggle
- Application
- Distribution;HACR rated
- Connection
- I-Line connection, line;lugs, load; 4 x AWG 3/0...500 kcmil aluminium/copper
- Frequency Rating
- 50/60 Hz
- Number of Poles
- 3
- Special Features
- 1
- UPC
- 785901280903
- GTIN
- 00785901280903
- Item Type
- Circuit breaker
- Width
- 8.27
- Width UOM
- Inch
- Height
- 16.16
- Height UOM
- Inch
- Depth
- 8.05 IN
- Trip Type
- Electronic, basic, ET 1.0I, I
