Appleton

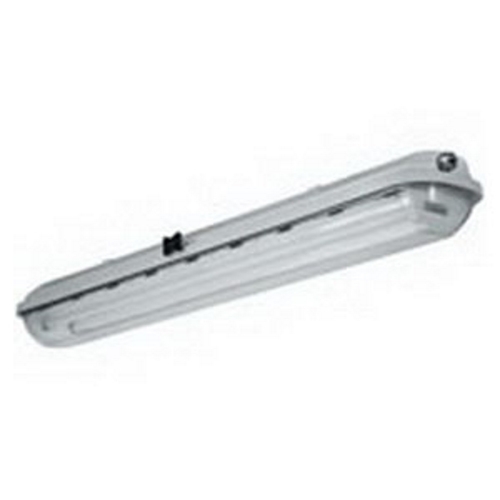

FVR240BU Non-Metallic Luminaire, (2) T8 Lamp, 80 W Fixture, 120 to 277 V

MFR:
Appleton Electric
MFR #:
FVR240BU
UPC:
781381184731
Item #:
164062

Availability

Location Available Qty
Available Available to Order
$2,987.76 each

Appleton FV Series Nonmetallic Fluorescent Luminaire, Lamp Type: (2) 40 WTT 3050 LM T12 Rapid Start, Lamp Wattage: 40 WTT, Voltage Rating: 120 - 277 V, Number Of Lamps: 2, Material: Stainless Steel Hub, Polycarbonate Lampholder, Fixture Wattage: 80 WTT, Length: 55 IN, Width: 8.6 IN, Height: 5.7 IN, Housing Material: Fiberglass Reinforced Polyester, Ambient Temperature Range: 40 DEG C, Temperature Range: 18 DEG C (Minimum Starting), 75 DEG C (Supply Wire), Lens Material: Polycarbonate, Hub Size: 3/4 IN, Reflector/Refractor: Highly Reflective White Polycarbonate Internal Reflector, Frequency Rating: 50/60 HZ, Standard: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Group IIC, Class II, Division 2, Groups F, G, Type 4X, UL Listed: E10794, 1598, 1598A, 844, 60079-0, 60079-15, CSA Certified: C22.2 No. 250, C22. 2 No. 137, CAN E60079-0, CAN E60079-15, cUL Listed: E10794, For Use In Marine And Wet Locations, Hazardous And Adverse Locations, Indoor Or Outdoor Use Where Protection Against Dirt, Water And Moisture Is Necessary, Oil Refineries, Petrochemical Facilities, Pulp And Paper Mills, Food Processing Plants, Warehouses, Underground Tunnels And General Manufacturing Facilities

Manuals and Documentation
Catalog Number FVR240BU
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use In Marine And Wet Locations, Hazardous And Adverse Locations, Indoor Or Outdoor Use Where Protection Against Dirt, Water And Moisture Is Necessary, Oil Refineries, Petrochemical Facilities, Pulp And Paper Mills, Food Processing Plants, Warehouses, Underground Tunnels And General Manufacturing Facilities
Lamp Type (2) 40 WTT 3050 LM T12 Rapid Start
Material Stainless Steel Hub, Polycarbonate Lampholder
Special Features Low operating costs provide more LM/WTT than incandescent fixtures; Impact-resistant polycarbonate lens is hinged to allow easy access to lamp compartment; Corrosion-resistant fiberglass reinforced polyester housing; Actuator allows access to lamps and ballast compartment - no tools required; Latch assembly and elastomer type gasket provide positive seal from water ingress; Safety switch (supplied as standard) disconnects power to lamps and ballast when lens is open; Reflector is hinged for easy single-handed entry to ballast compartment; Actuator can be removed for tamper-resistant applications; For use in locations where a high degree of corrosion resistance is required
Standard Class I, Division 2, Groups A, B, C, D; Class I, Zone 2, Group IIC; Class II, Division 2, Groups F, G; Type 4X; UL Listed: E10794, 1598, 1598A, 844, 60079-0, 60079-15; CSA Certified: C22.2 No. 250, C22. 2 No. 137, CAN E60079-0, CAN E60079-15; cUL Listed: E10794
UPC 781381184731
GTIN 00781381184731
Item Type FV Series Nonmetallic Fluorescent Luminaire
Length 55
Length UOM Inch
Width 8.6
Width UOM Inch
Height 5.7
Height UOM Inch
Voltage Rating 120 - 277
