Discontinued

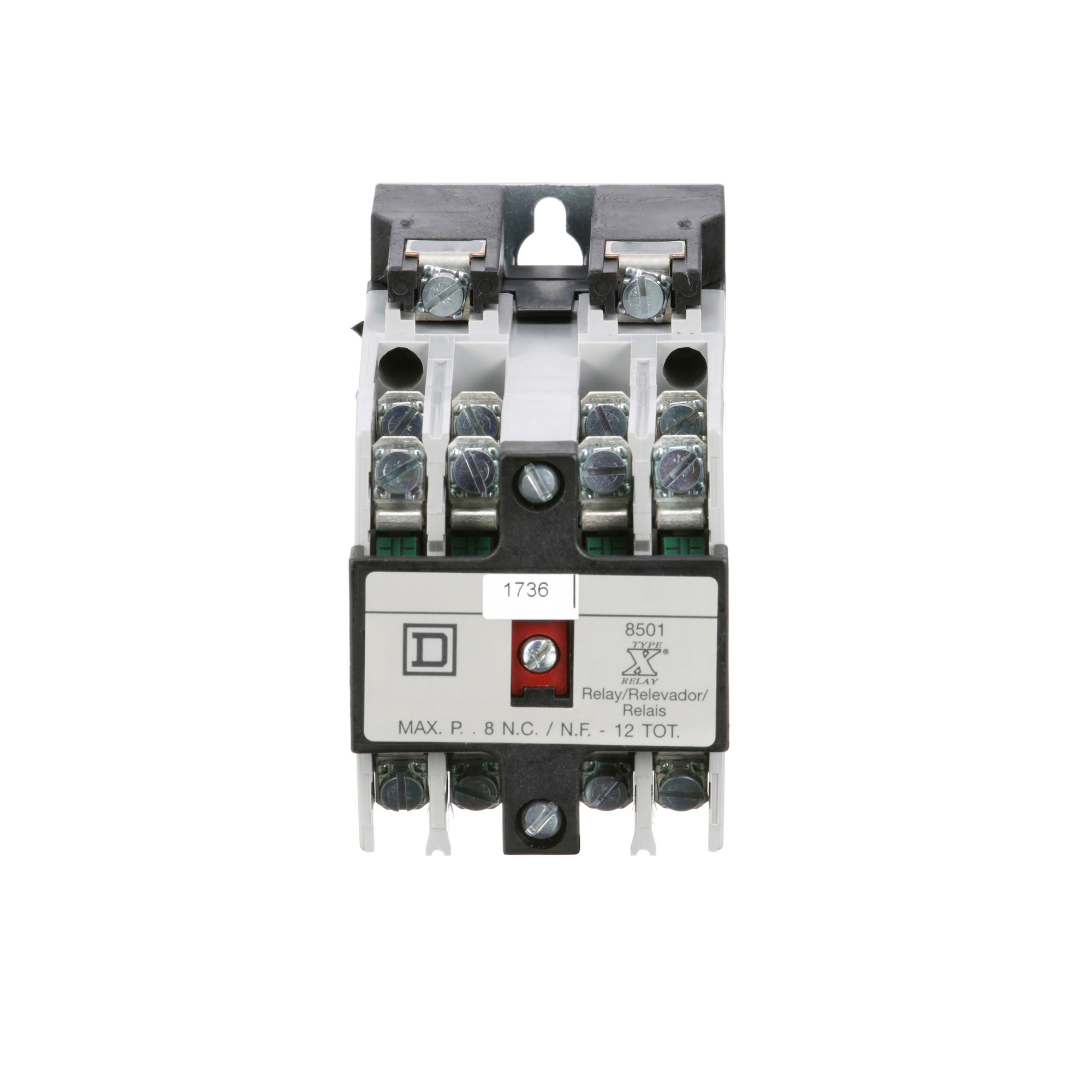

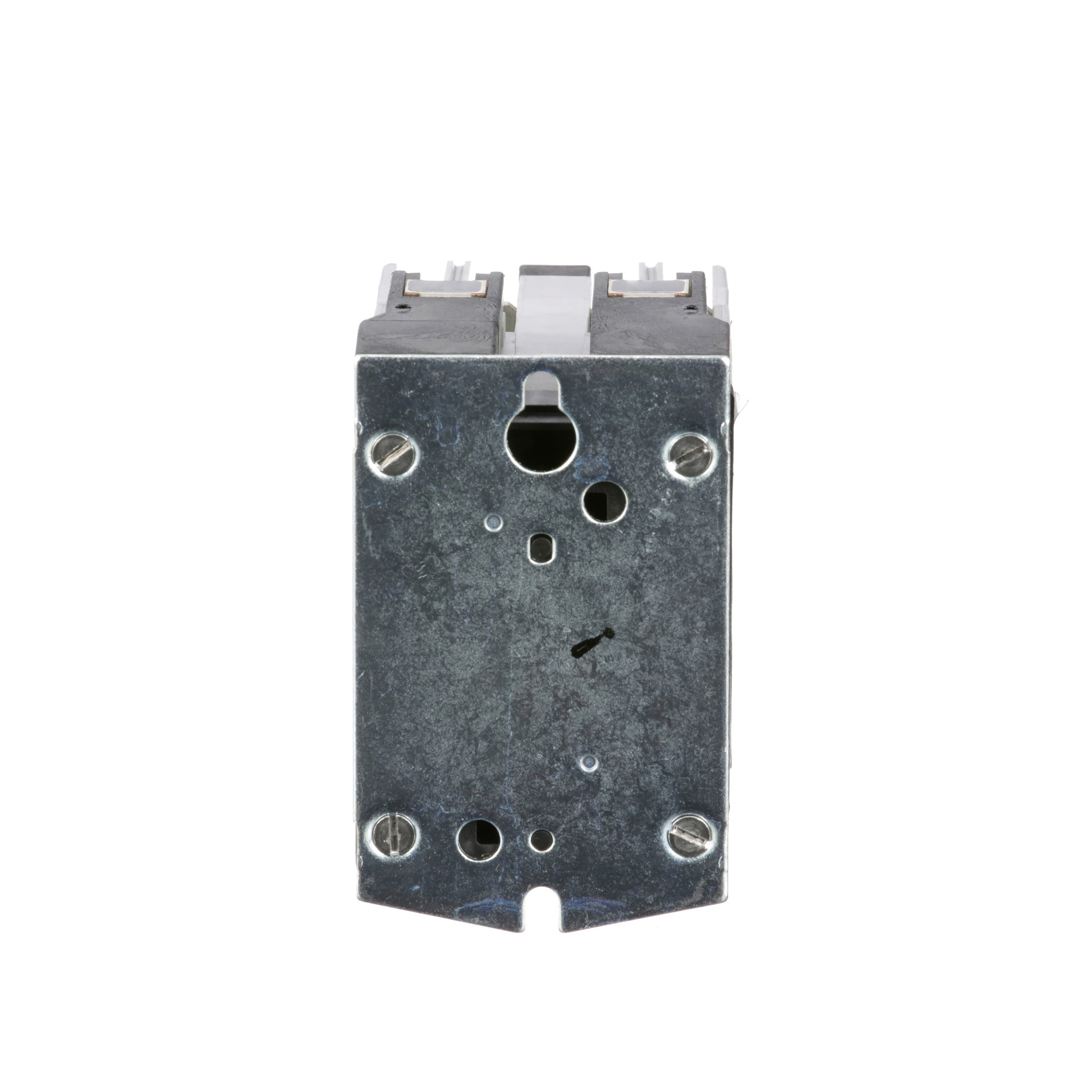

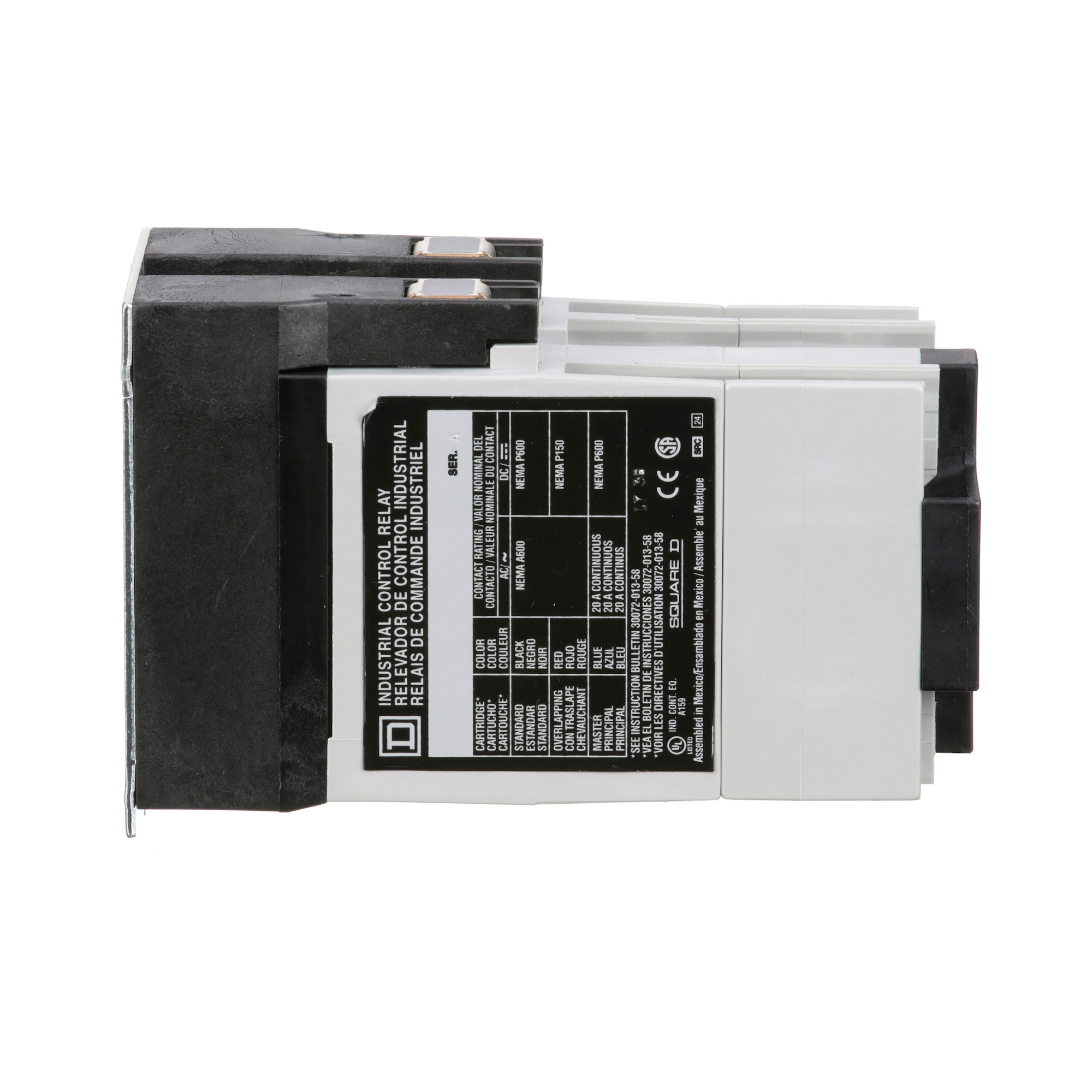

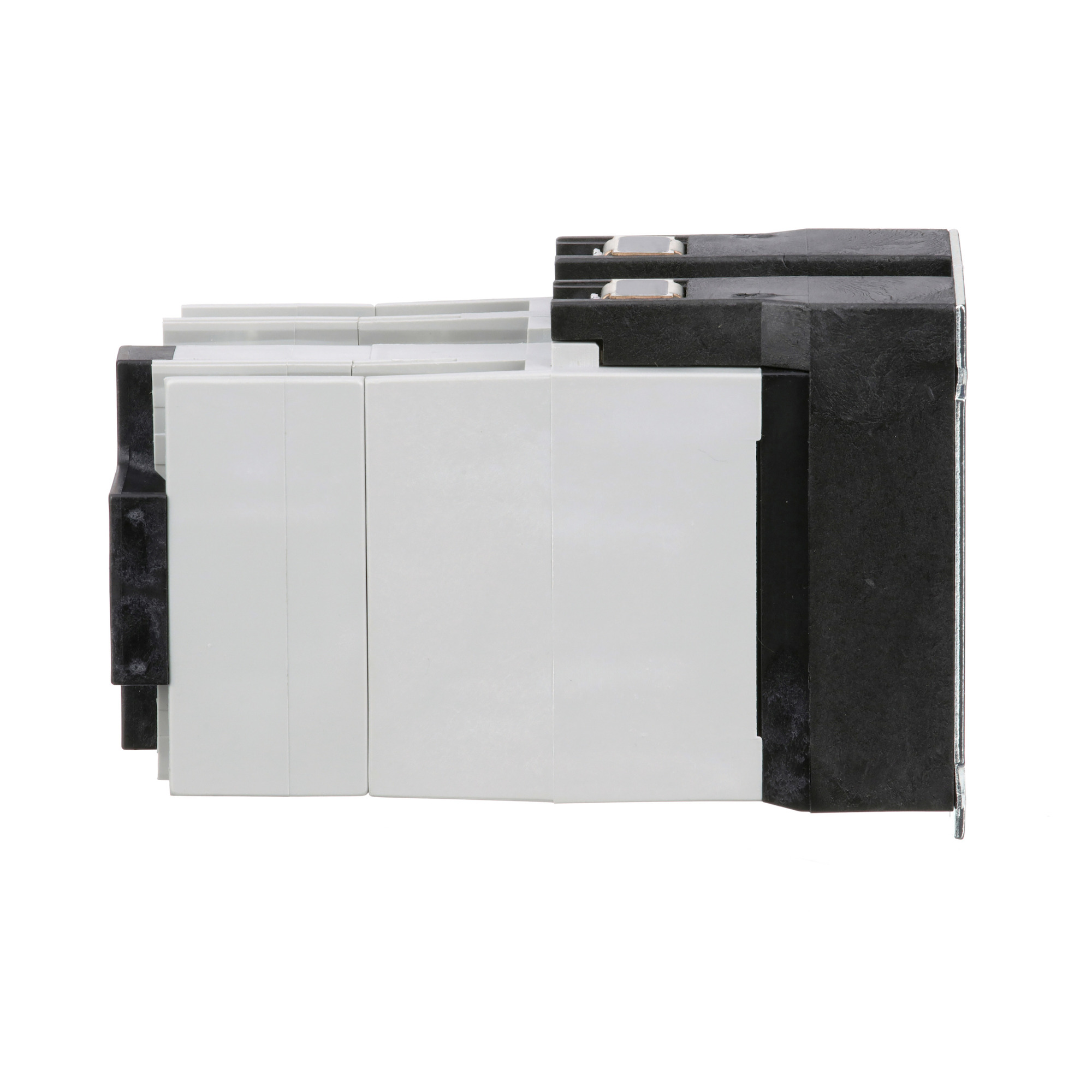

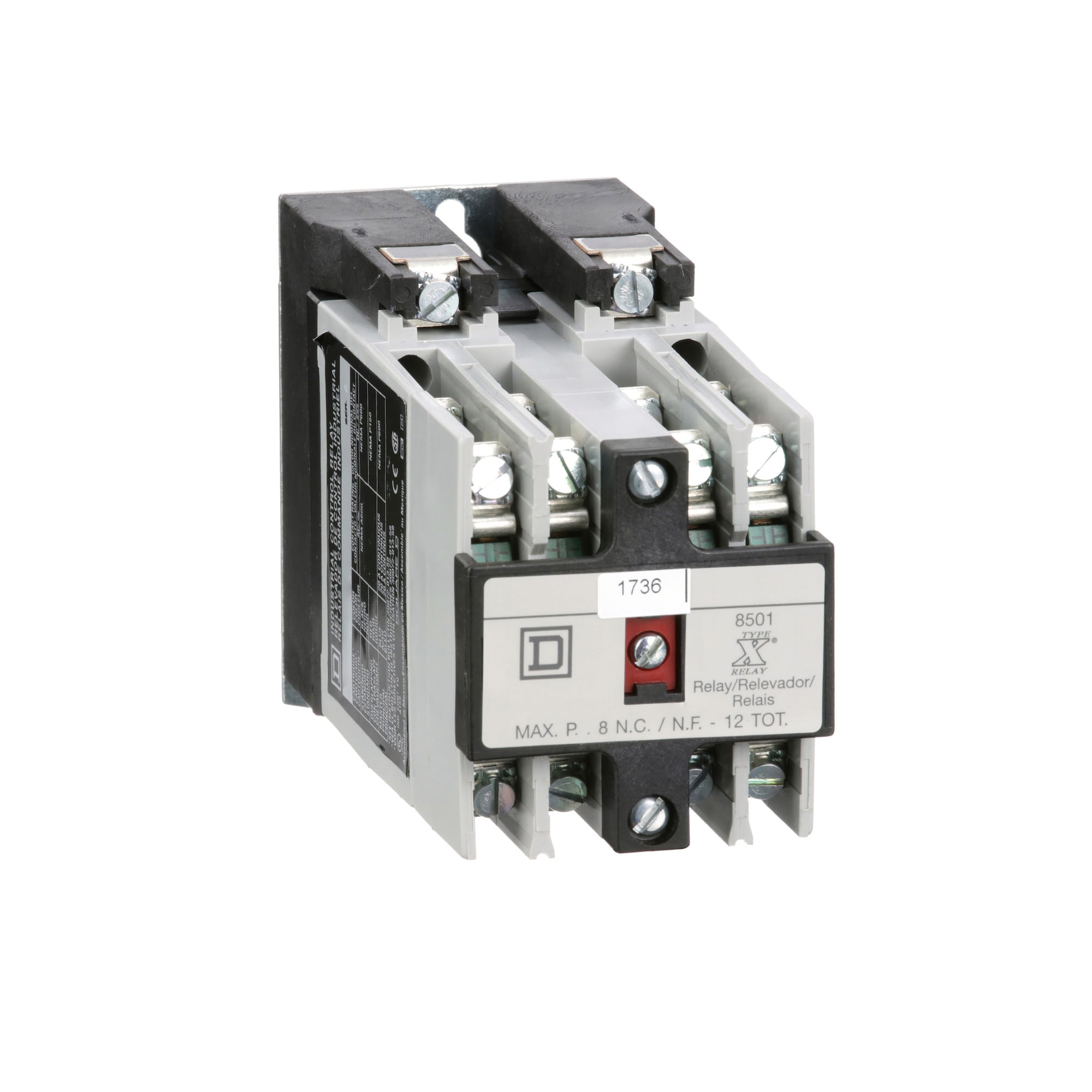

8501XO62V02 Type X Control Relay, 10 A AC/5 A DC, 110 V AC at 50 Hz to 120 V AC at 60 Hz V Coil
- MFR:
- Schneider Electric
- MFR #:
- 8501XO62V02
- UPC:
- 785901435198
- Item #:
- 163910
Discontinued
8501XO62V02 Type X Control Relay, 10 A AC/5 A DC, 110 V AC at 50 Hz to 120 V AC at 60 Hz V Coil
- MFR #:
- 8501XO62V02
- UPC:
- 785901435198
- Item #:
- 163910
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
NEMA Control Relay, machine tool, 6 NO and 2 NC, 110/120 VAC 50/60 Hz coil
Manuals and Documentation
| Catalog Number | 8501XO62V02 |
| Manufacturer | Schneider Electric |
| Brand | Square D by Schneider Electric |
| Country of Origin | Mexico |
| Made in USA | No |
| Connection | AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS |
| Contact Configuration | 6 NO + 2 NC 8 STANDARD CONTACT CARTRIDGES |
| Contact Rating | 10 A AC-5 A DC |
| Mounting | Panel Mount |
| Number of Poles | 8 |
| Special Features | SCREW CLAMP TERMINALS |
| Standard | CSA LR60905 CLASS 3211 03-UL LISTED FILE E78403 CCN NKCR |
| UPC | 785901435198 |
| GTIN | 00785901435198 |
| Item Type | CONTROL,RELAY |
| Size | 2.23 IN,3.5 IN,5.16 IN |
| Operating Temperature | -40-160 A Degrees F |
