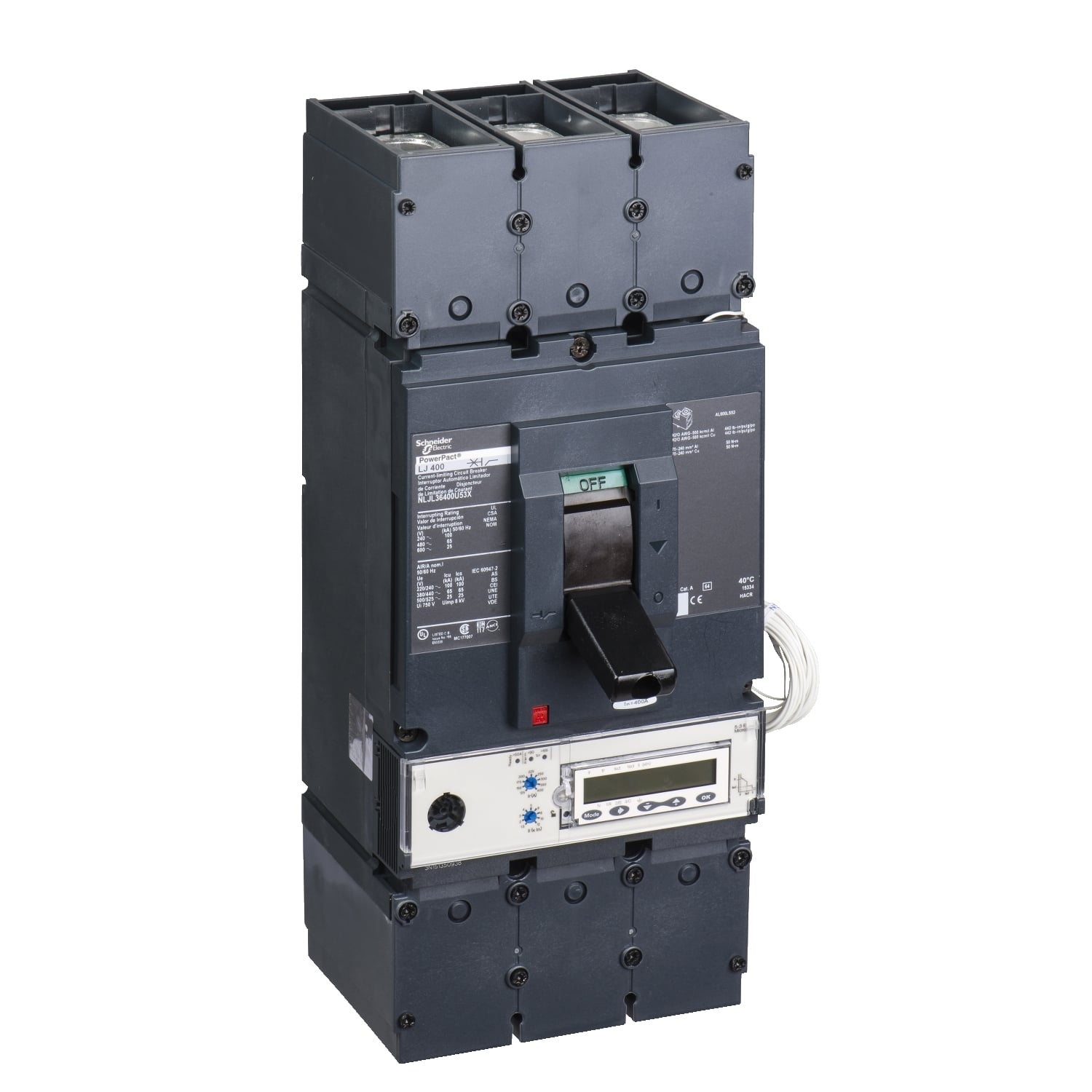

LLL37030D27 Power Pact Circuit Breaker, 500 V DC, 300 A, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 V DC/50 kA at 500 V DC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- LLL37030D27
- Item #:
- 1637180
LLL37030D27 Power Pact Circuit Breaker, 500 V DC, 300 A, 125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/20 kA at 250 V DC/50 kA at 500 V DC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- LLL37030D27
- Item #:
- 1637180
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 300A, 3 pole, circuit breaker has an interrupting rating of 50kA at 500VDC. This circuit breaker has a fixed long time electronic trip unit. This unit has lugs on both the line and load sides. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals and Documentation
| Catalog Number | LLL37030D27 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | Black |
| Connection | Lugs, line;lugs, load; 2 x AWG 2/0...500 kcmil aluminium/copper |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=466990403&lang=en-us |
| GTIN | 03606486284094 |
