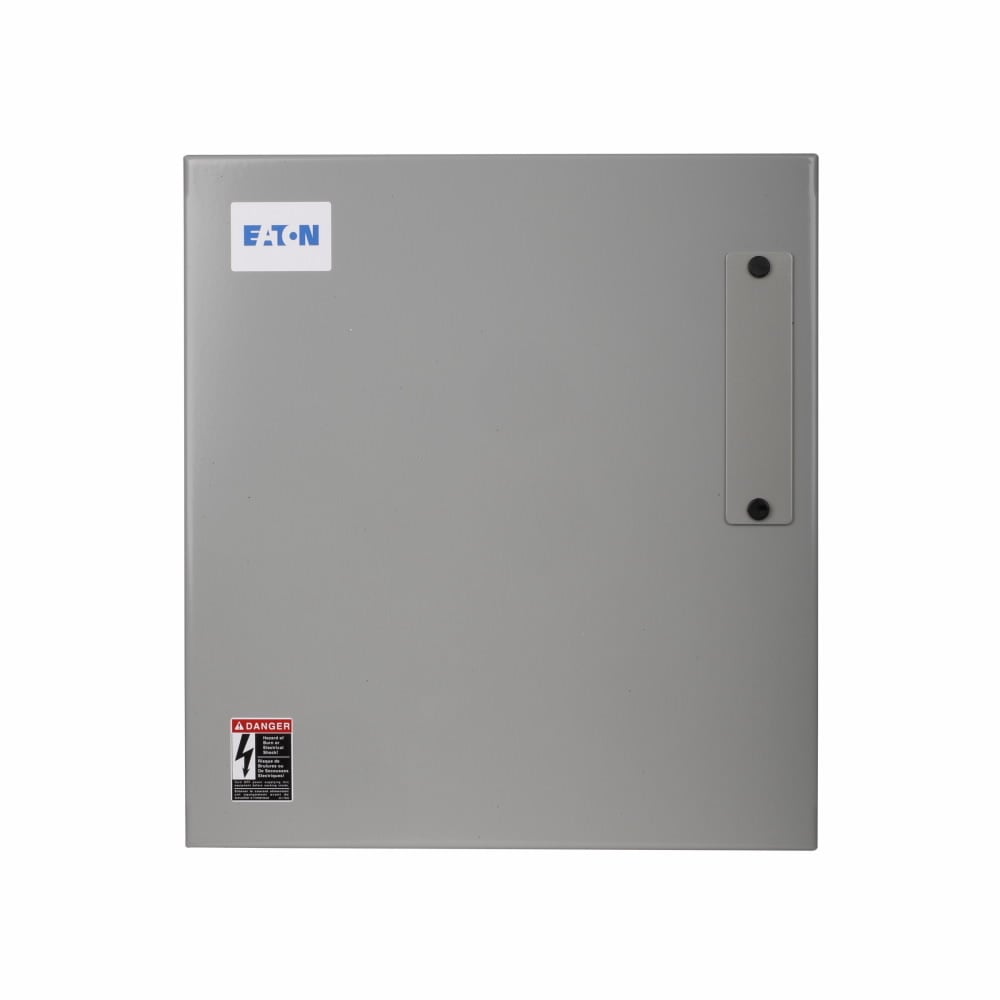

Eaton CN35 electrically held lighting contactor, 30 A, 110 V/50 Hz, 120 V/60 Hz, 30 A, NEMA 1, Painted steel, 45 mm, 12-pole, Electrically held, A202 Series, Non-combination electrically held
- MFR:
- Eaton
- MFR #:
- ECL03C1ABA
- UPC:
- 782114016909
- Item #:
- 1634424
Eaton CN35 electrically held lighting contactor, 30 A, 110 V/50 Hz, 120 V/60 Hz, 30 A, NEMA 1, Painted steel, 45 mm, 12-pole, Electrically held, A202 Series, Non-combination electrically held
- MFR #:
- ECL03C1ABA
- UPC:
- 782114016909
- Item #:
- 1634424
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$5,299.68
each
Type CN35 electrically held lighting contactors are designed to handle the switching of tungsten (incandescent) or ballast (fluorescent and mercury arc) lamp loads as well as other non-motor (resistive) loads. Ideal applications include industrial plants, stadiums, parks and any new construction requiring lighting control. Ballast lamps equate to fluorescent, mercury vapor, sodium vapor and quartz loads and will operate at a maximum of 600V. Filament lamps equate to incandescent, infrared, sodium iodine and heating loads and will operate at a maximum of 480V. Resistance heating equates to radiant and convection heating, furnace and oven loads.
| Catalog Number | ECL03C1ABA |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other|Commercial / Institutional Buildings / Structures - Lighting and Lighting Controls|Elec Assemblies, Panels & EOEM - Electrical Assemblies and EOEMs - Other|Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs|Ind Facilities & Factories - Facility: Lighting and Lighting Controls |
| Coil Voltage | 110-120 Vac, 50/60 Hz |
| Contact Rating | 30 A |
| Enclosure Type | NEMA 1 |
| Standard | UL Listed,cUL Listed |
| UPC | 782114016909 |
| GTIN | 00782114016909 |
| Item Type | Electrically held lighting contactor |
| Dimensions | 7.7300 IN X 5.8400 IN X 13.2100 IN |
