Square D

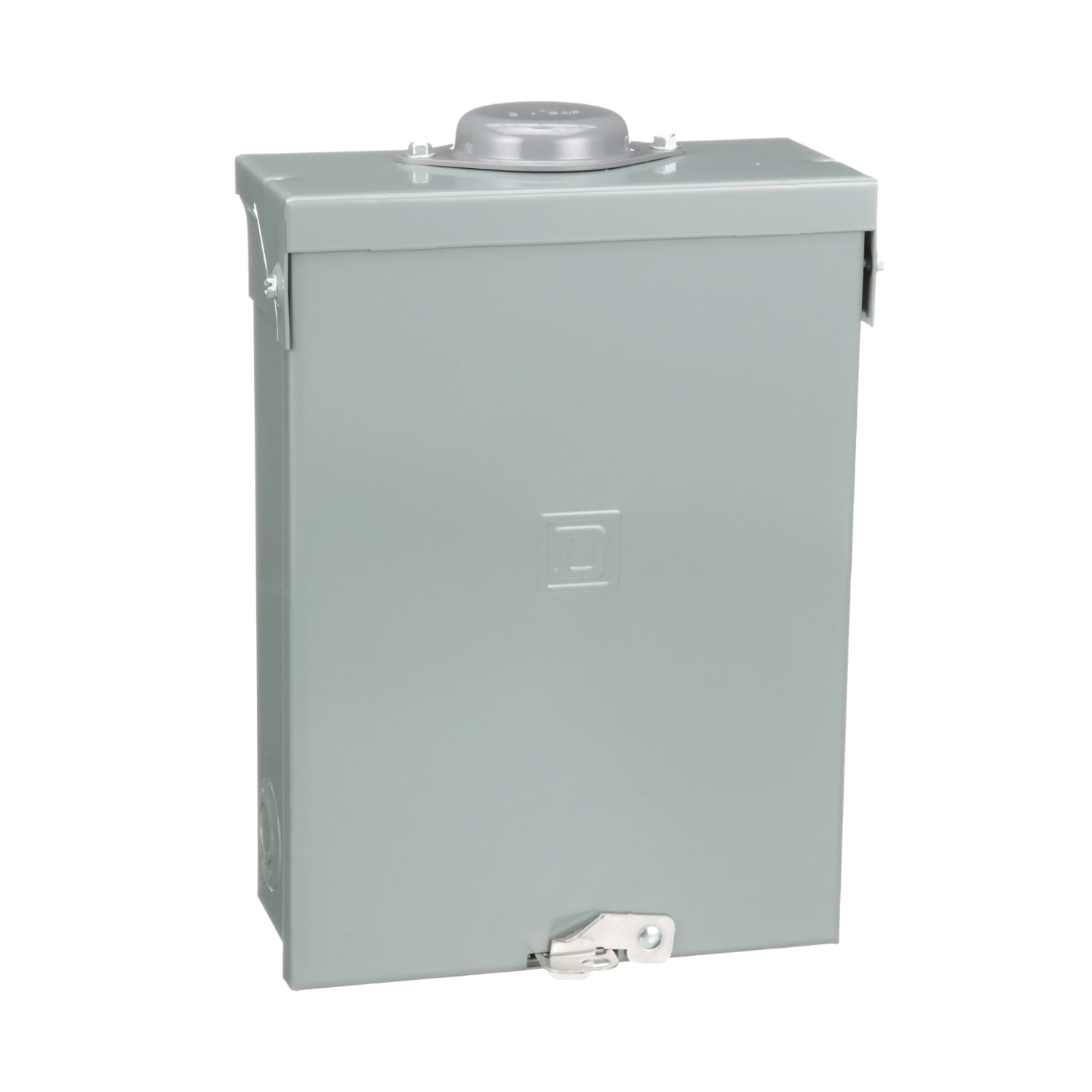

HOM612L100RBCP 1-Phase Load Center, 120/240 V AC, 100 A, 1 Poles, 10 kA Interrupt

MFR:
Schneider Electric
MFR #:
HOM612L100RBCP
UPC:
047569071256
Item #:
1632359

Availability

Location Available Qty
Available Available to Order
$100.68 each

The Square D Homeline Load Centers and Circuit Breakers, HOM612L100RBCP are part of a comprehensive family of circuit protection solutions. Plug on neutral load main breakers centers with lug connections. US and Canadian UL Listed to the UL 1449 standard. Complies with requirements of NEC Article 285 and CSA 22.2 No. 8- M1986 as appropriate. Complies with UL 96A 12th Edition Master Label requirements for Lightning Protection Systems.

Manuals and Documentation
Catalog Number HOM612L100RBCP
Manufacturer Schneider Electric
Brand Square D
Country of Origin Mexico
Made in USA No
Connection Lugs;AWG 8...AWG 1 copper or aluminium
Cover Type Surface cover
Enclosure Baked enamel Gray;Welded galvannealed steel;2R
Material Tin plated aluminium: busbar
Phase 1
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=359231&lang=en-us
UPC 047569071256
GTIN 00047569071256
Item Type Load Center

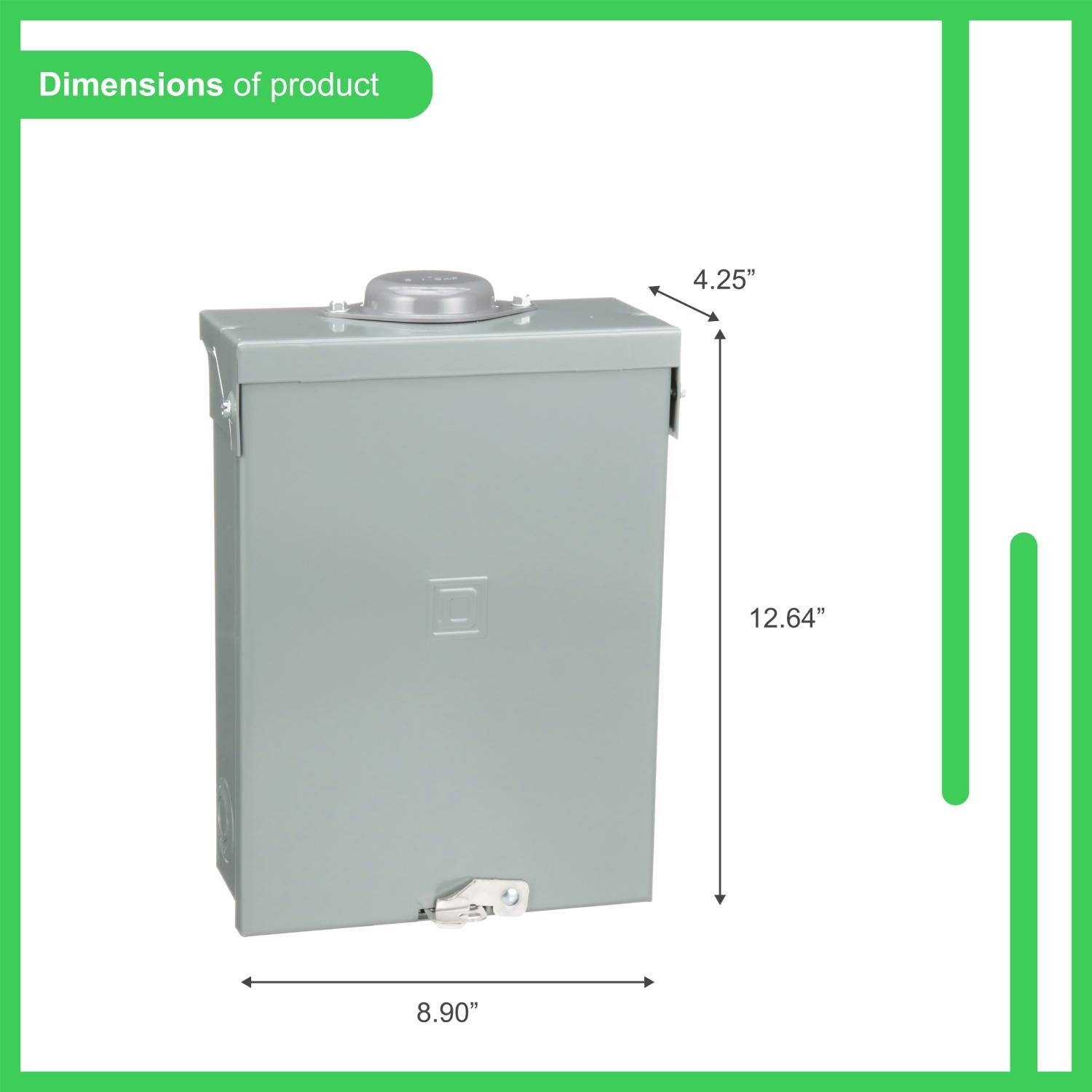

Width 8.89760
Width UOM Inch
Height 12.63780
Height UOM Inch
Voltage Rating 120/240 V AC
