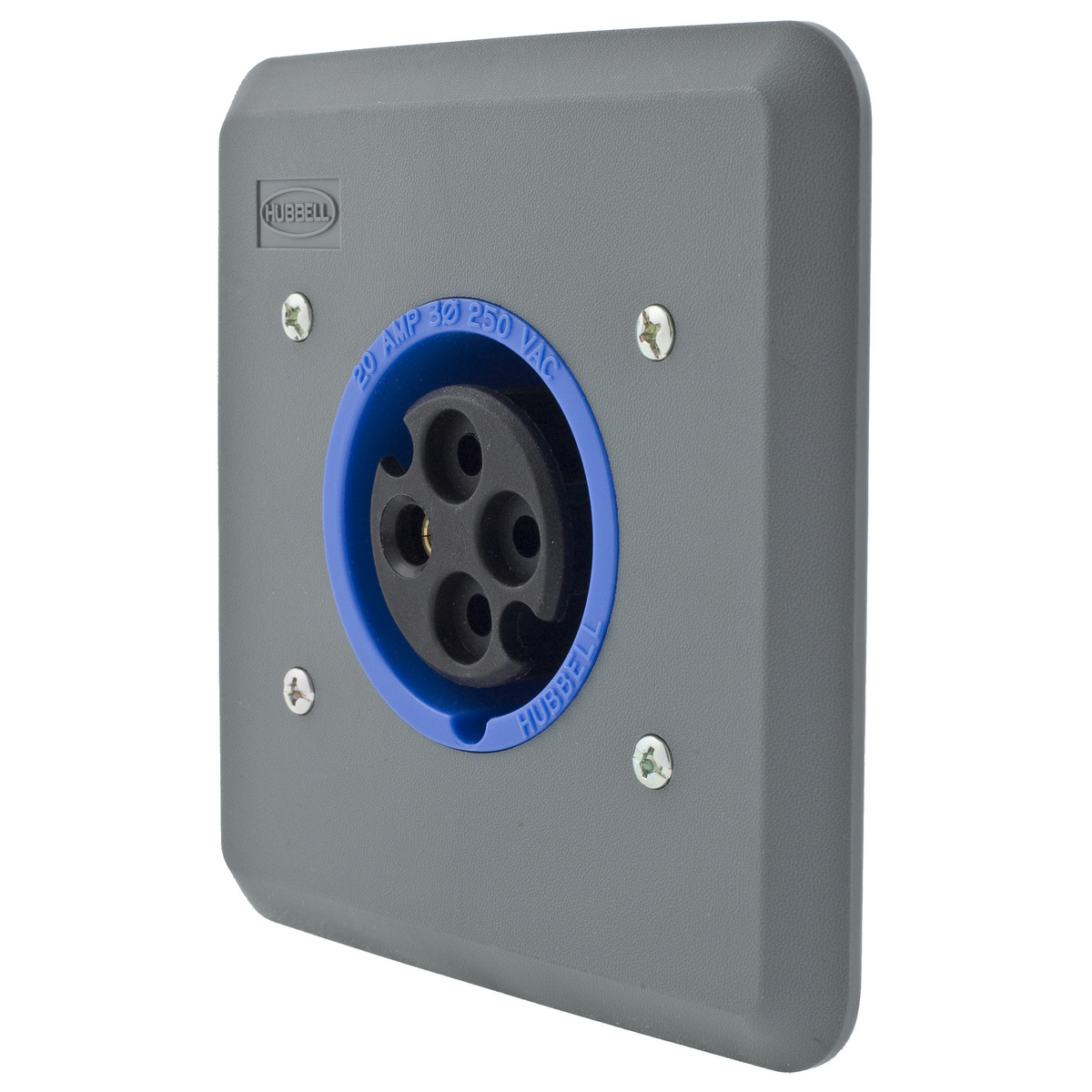

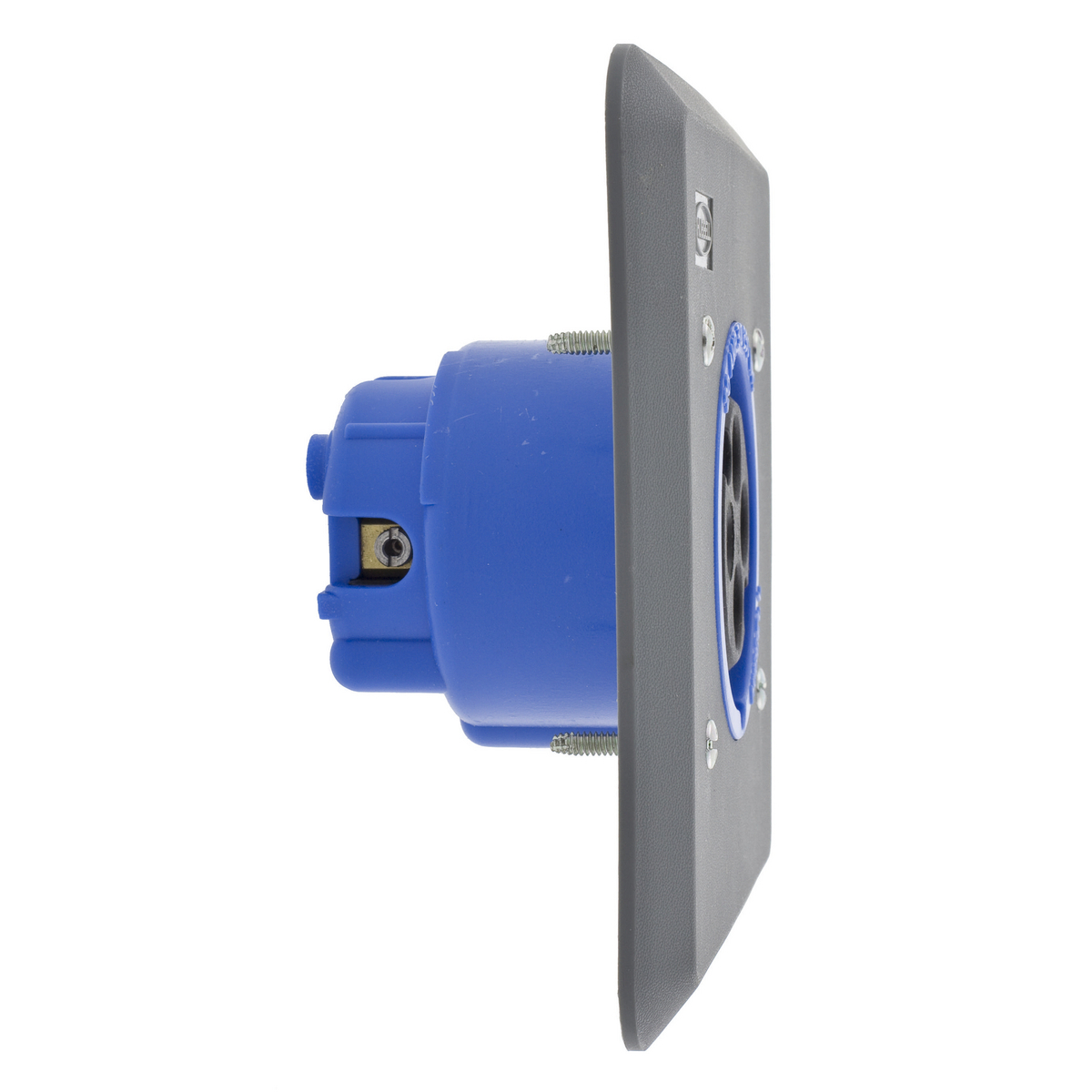

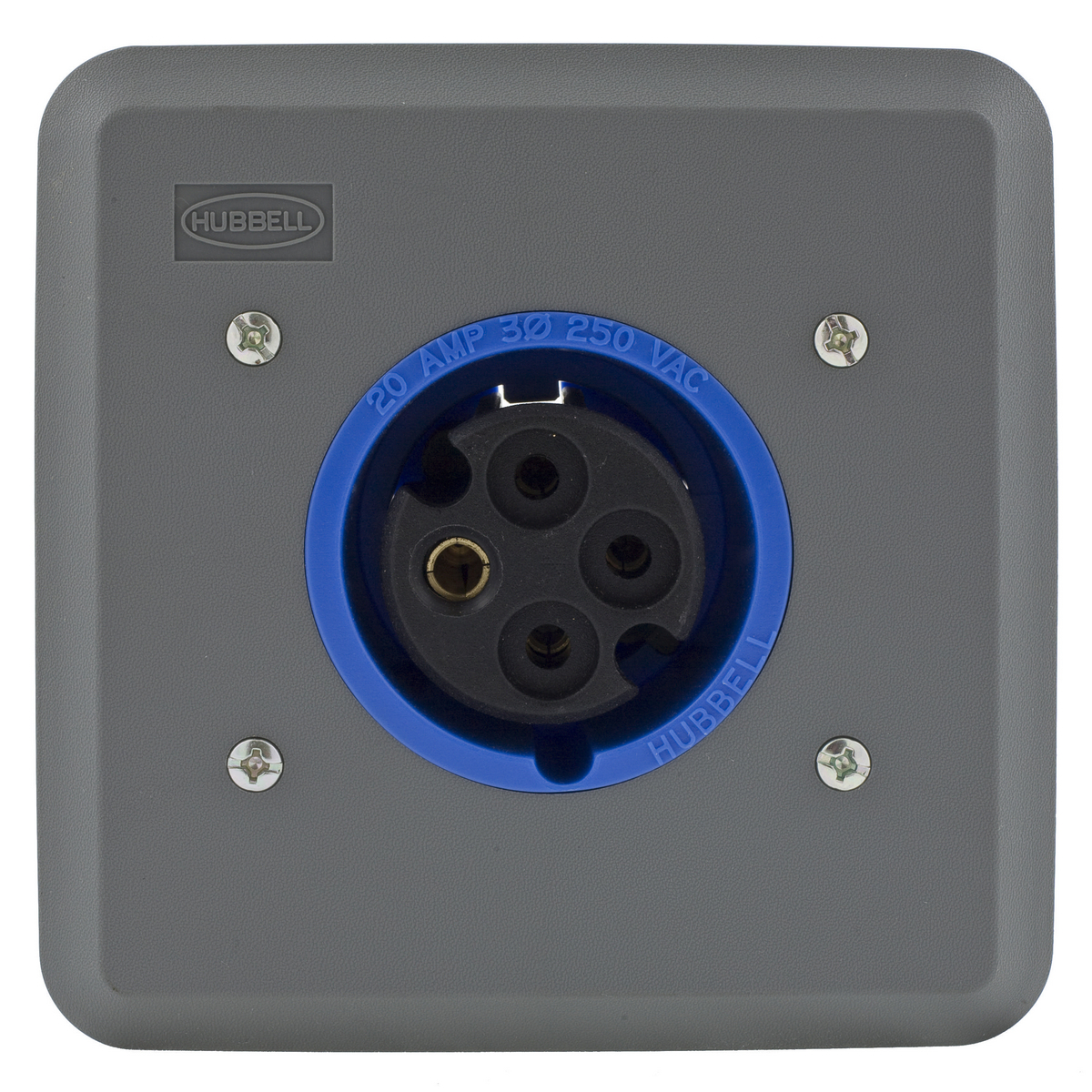

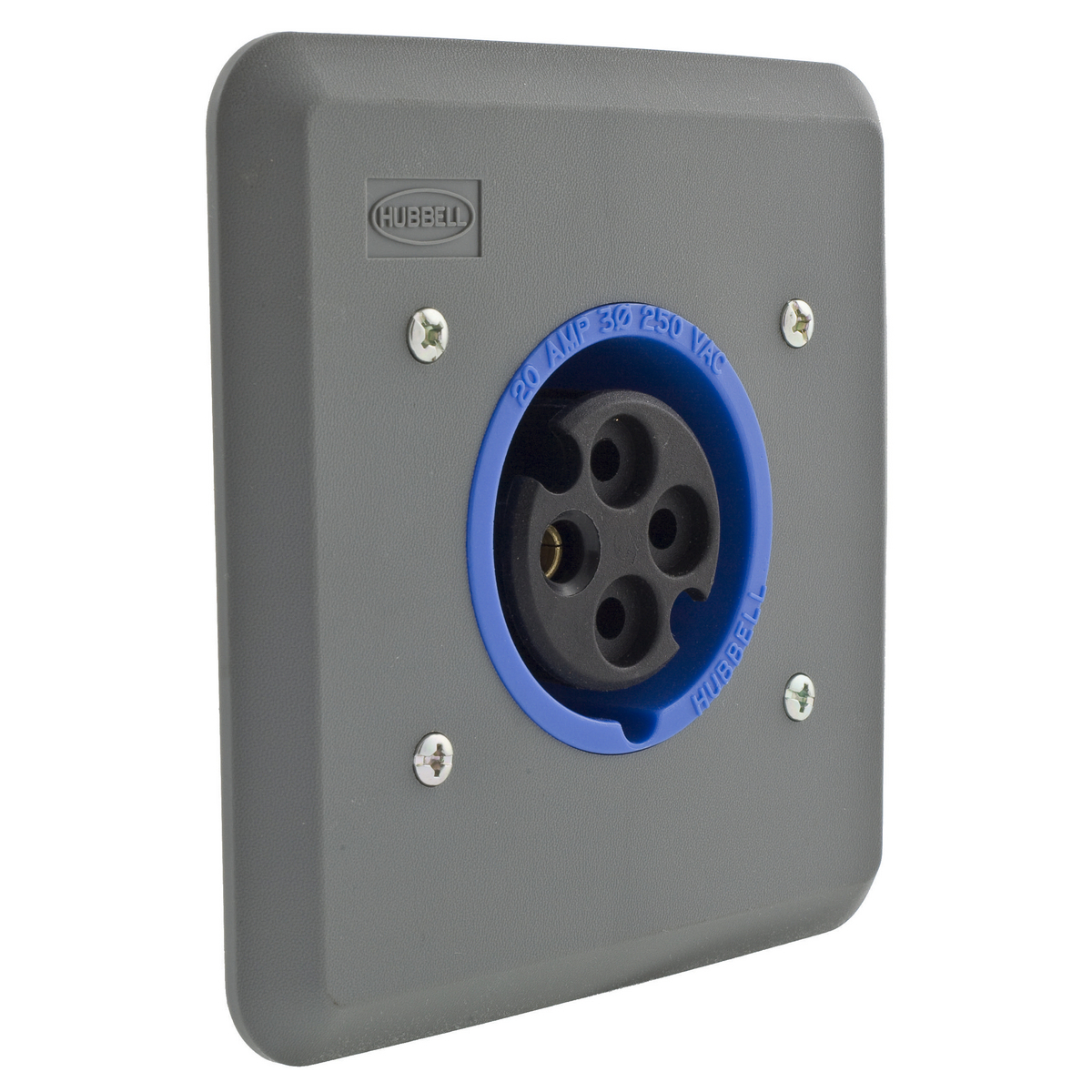

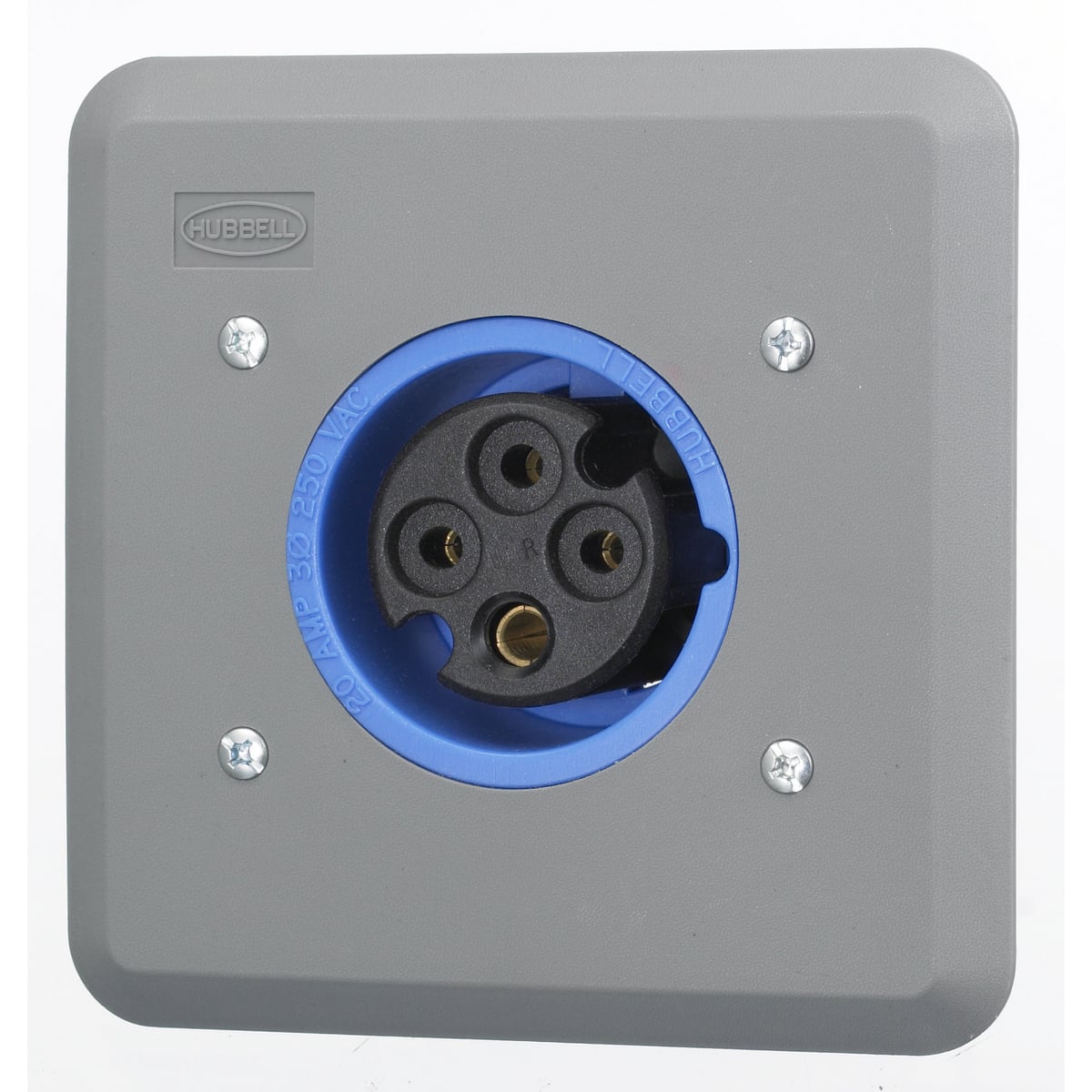

L420R9 3-Phase Female Low Profile Single Standard Screw Mount Watertight Pin and Sleeve Receptacle, 250 VAC, 20 A, 3 Poles, 4 Wires, Blue
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- L420R9
- UPC:
- 783585507743
- Item #:
- 162899
L420R9 3-Phase Female Low Profile Single Standard Screw Mount Watertight Pin and Sleeve Receptacle, 250 VAC, 20 A, 3 Poles, 4 Wires, Blue
- MFR #:
- L420R9
- UPC:
- 783585507743
- Item #:
- 162899
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Hubbells Low Profile Pin and Sleeve devices were designed to save space without sacrificing pin and sleeve strength, safety and convenience. The small compact design of these plugs is ideal for indoor applications where space is at a premium. These devices are fully interchangeable with standard IEC 60309 pin and sleeve. They are a perfect fit for tight situations frequently found in hotels, restaurants, convention centers, warehouses, assembly benches and offices.
Manuals and Documentation
| Catalog Number | L420R9 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | High Ampacity Watertight Connections |
| Color | Blue |
| Connection | Pressure Screw Terminals |
| Material | Thermoplastic |
| Mounting | Screw |
| Number of Poles | 3 |
| Number of Wires | 4-Wire |
| Phase | 3 |
| Special Features | Standard |
| Standard | UL 498, IEC 309-1 and 309-2 |
| UPC | 783585507743 |
| GTIN | 00783585507743 |
| Item Type | IP22 Receptacle |
| Size | Standard Sized Product |
| Environmental Conditions | Watertight |
| Voltage Rating | 3 Phase 250 |
| Wattage | 5,000 |
| Wire Size | #14 AWG to #10 AWG |
