Square D

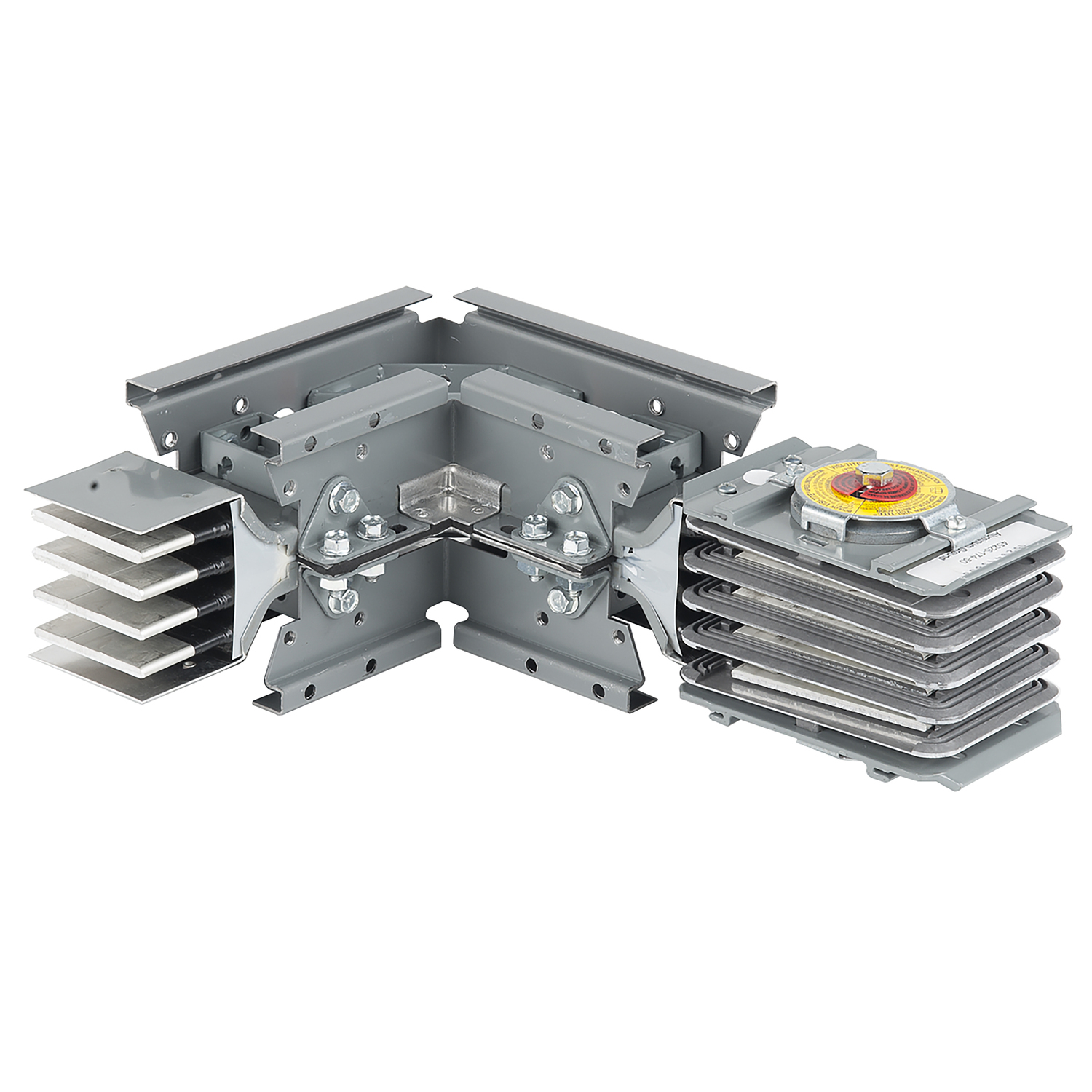

CFH2516GLEM11 3-Phase 4-Wire Edgewise Busway Elbow, 1600 A, For Use With I-Line II 600 V AC Busway, Copper

MFR:
Schneider Electric
MFR #:
CFH2516GLEM11
UPC:
785901777304
Item #:
1628733

Availability

Location Available Qty
Available Available to Order

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line's plug-in busway has options from 225A to 5000A with aluminum or copper conductors; its feeder busway from 800A to 5000A. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This edgewise elbow has a copper bus rated at 1600A at 600VAC. This busway component is configured for a 3 phase, 4 wire system and has a 50 percent capacity integral ground bus and high short circuit bracing.

Manuals and Documentation
Catalog Number CFH2516GLEM11
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Material Copper: busbar
Number of Wires 4-wire
Phase 3
Special Features 50 percent capacity integral ground bus;high short-circuit bracing
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=352099&lang=en-us
UPC 785901777304
GTIN 00785901777304
Item Type Elbow;Edgewise
Length 11.0
Length UOM Inch
Height 11.0
Height UOM Inch
