SQUARE D

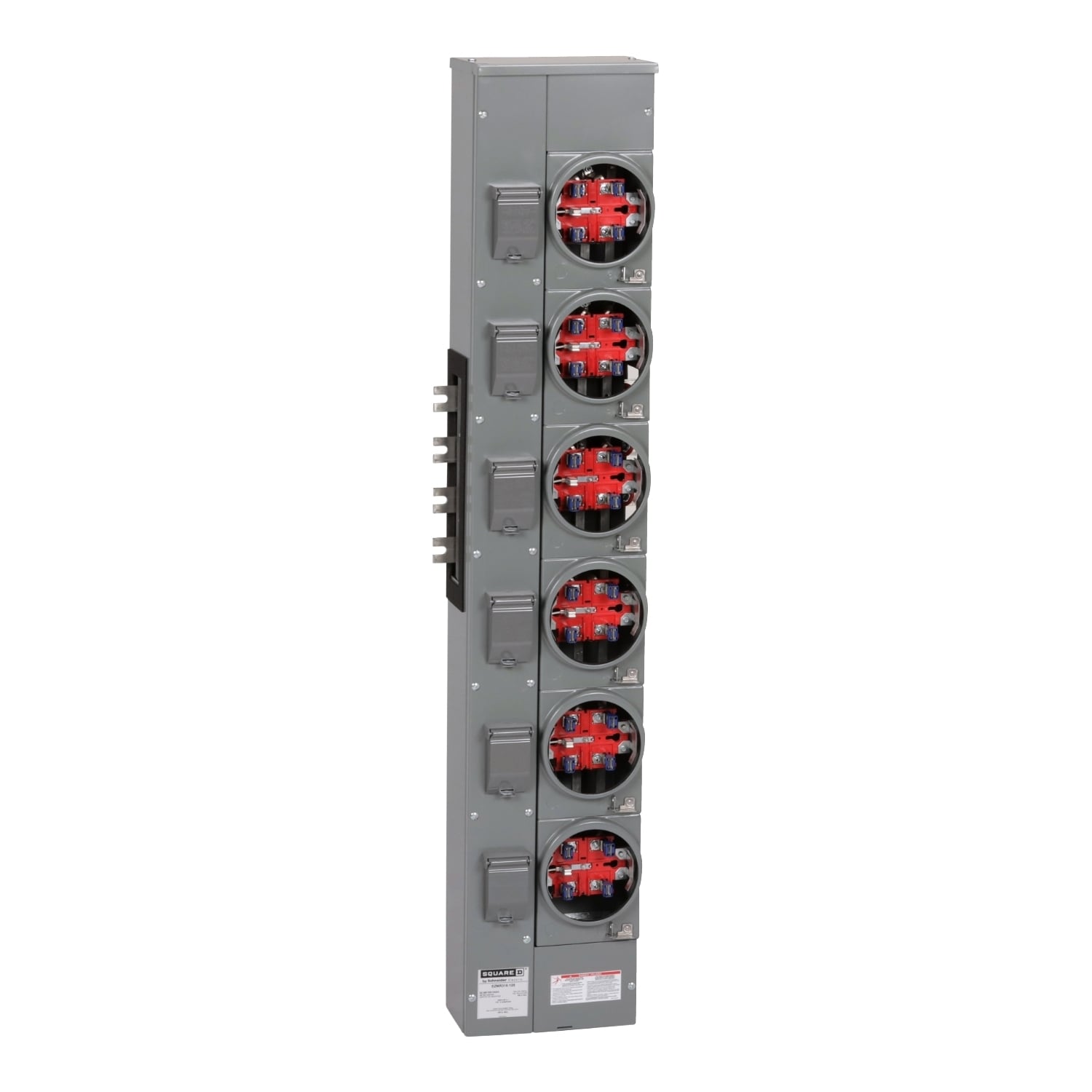

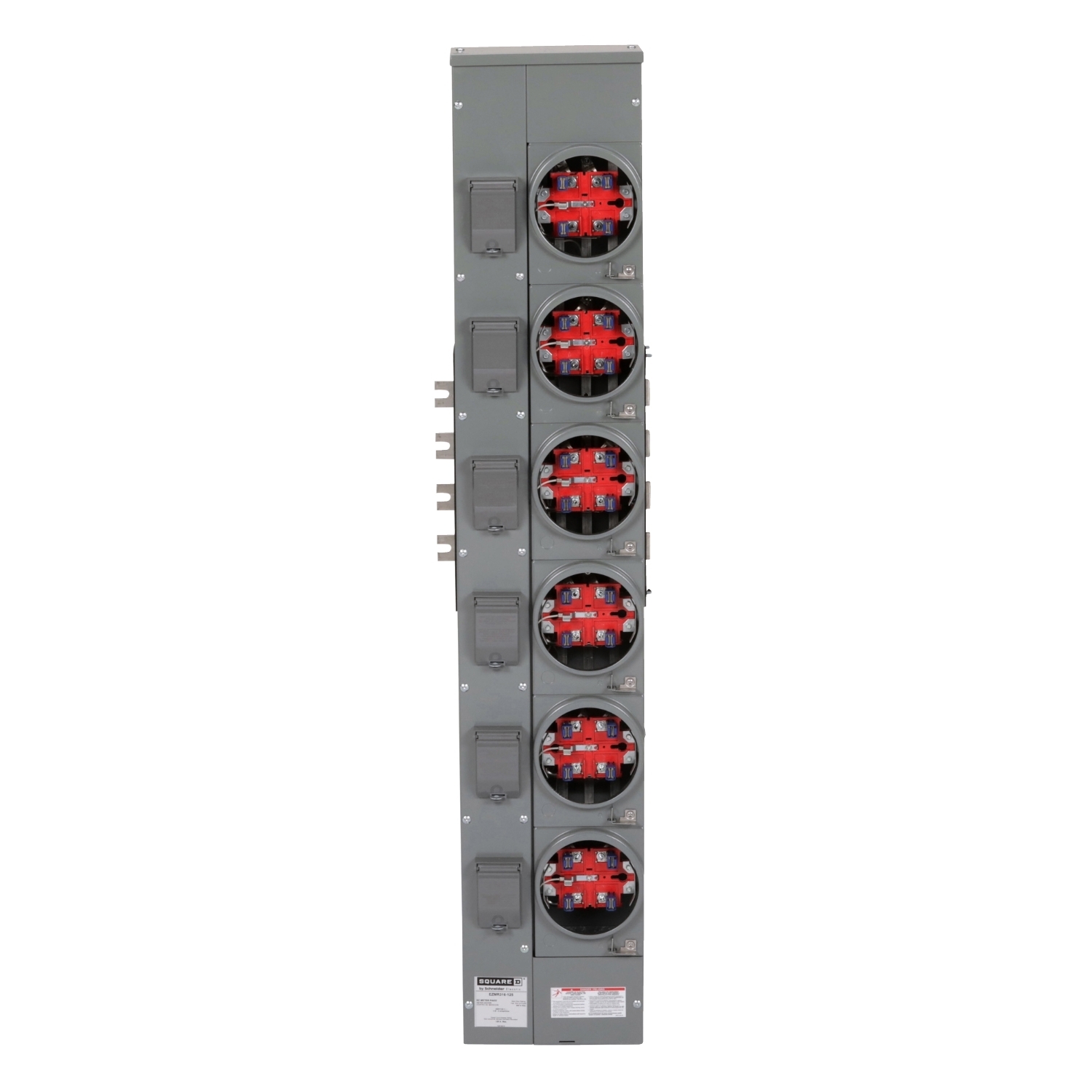

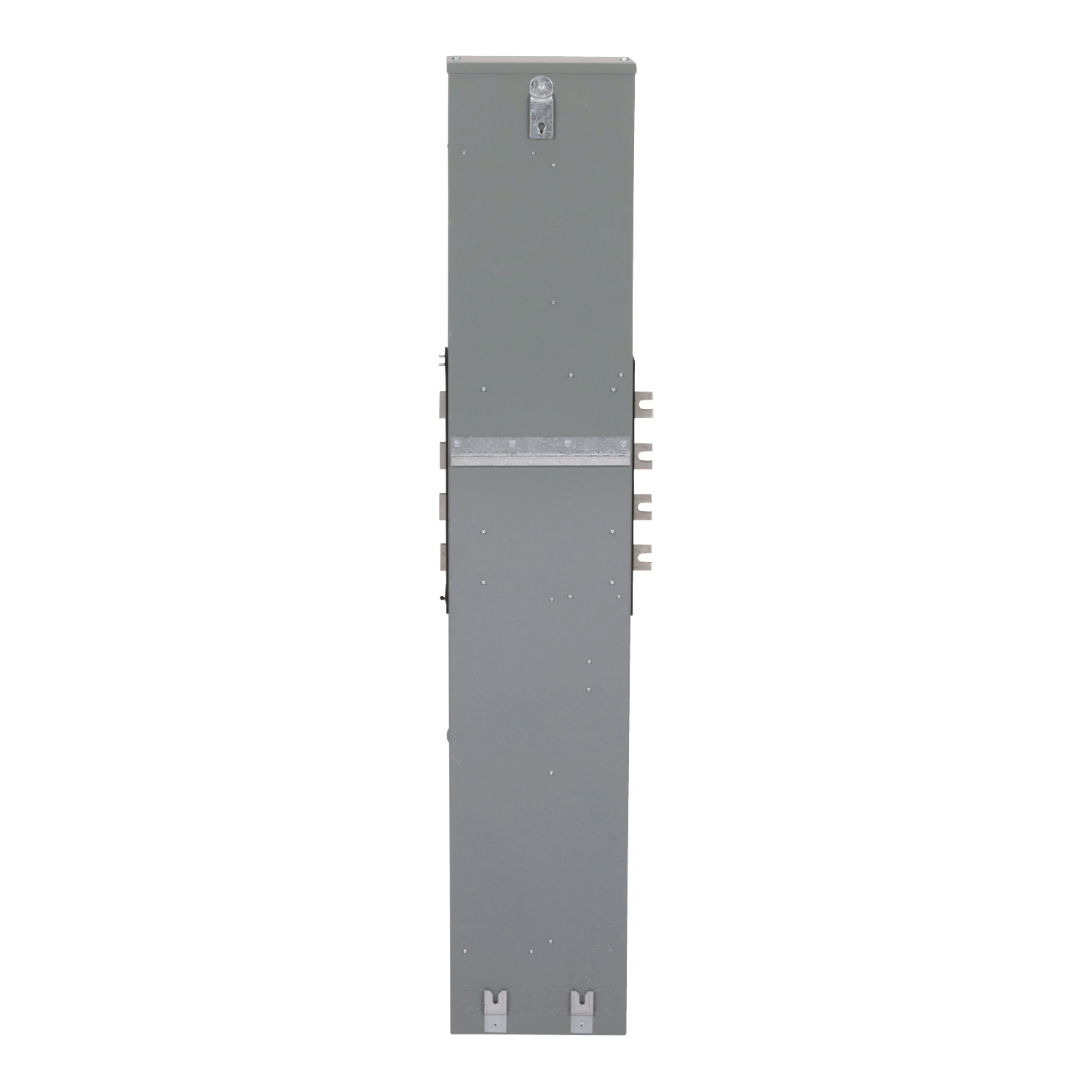

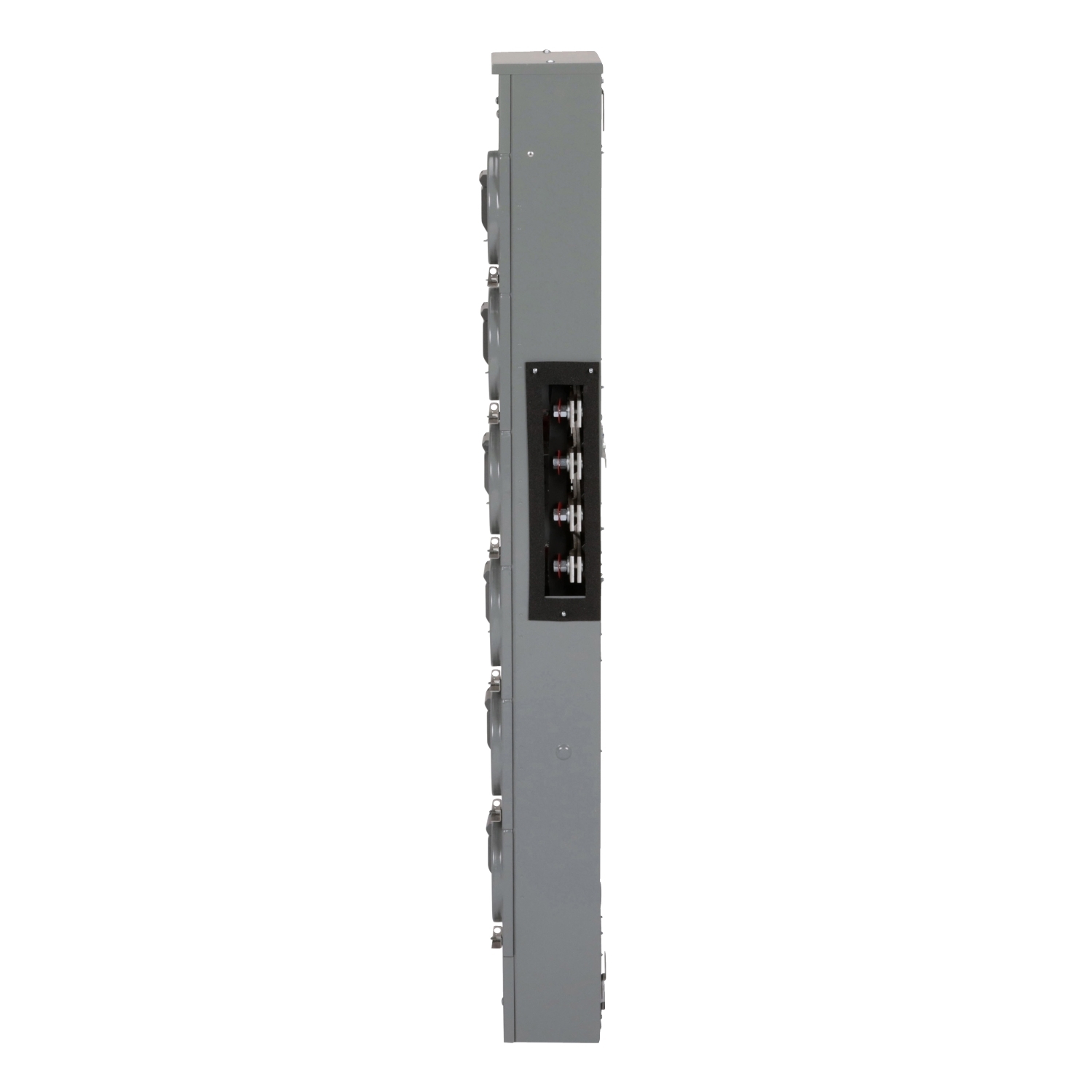

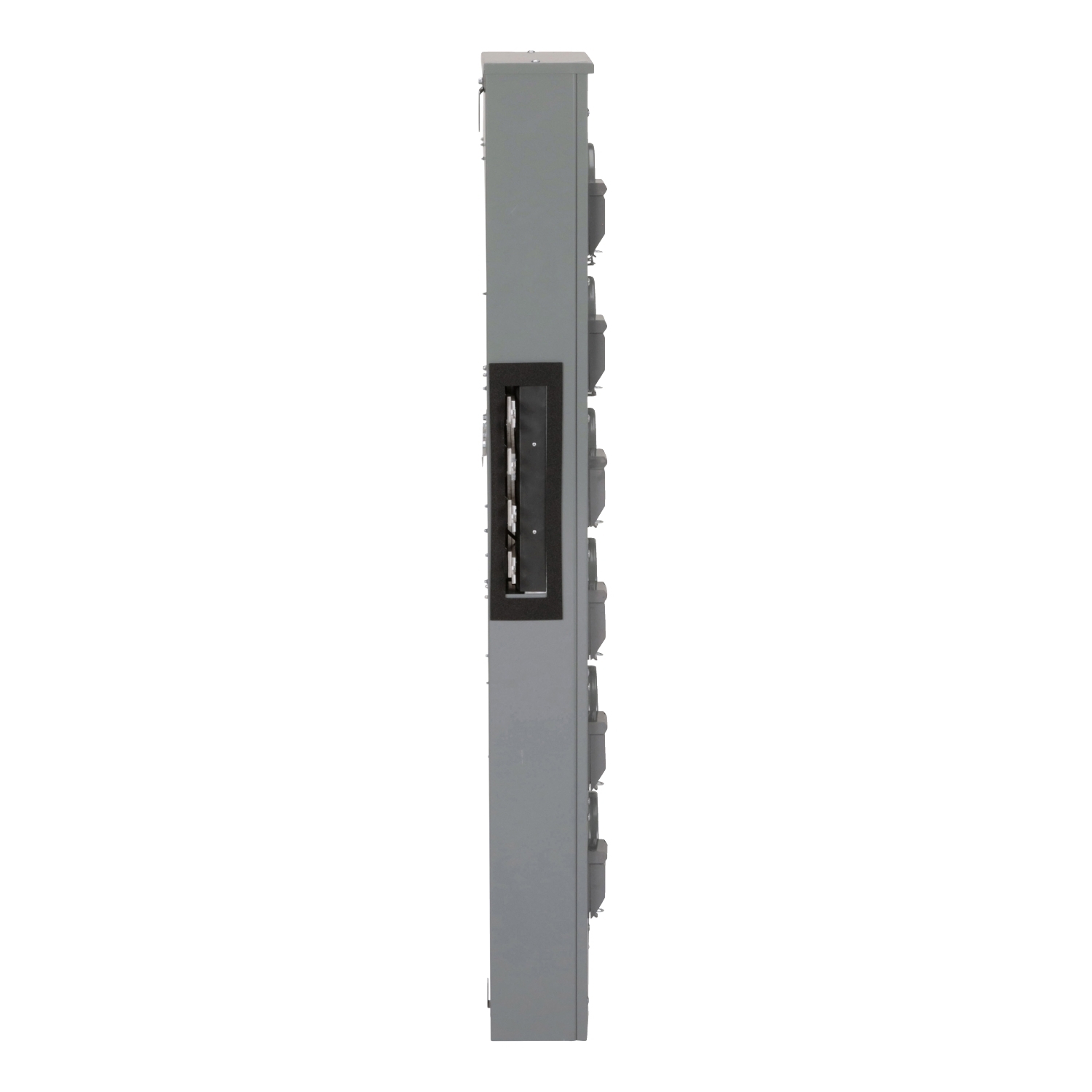

EZMR316125 Meter-Pak EZM 6-Position Meter Center Branch Unit, 208Y/120 V AC, 125 A, 1/3 Phase , NEMA 3R Enclosure

MFR:
Schneider Electric
MFR #:
EZMR316125
UPC:
785901308973
Item #:
1626531

Availability

Location Available Qty
Available Available to Order
$4,249.53 each

Square D EZ Meter-Pak devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 125A. It has 6 five jaw sockets for use. The system voltage is 208Y/120 VAC and has no bypass. It includes a 800 A aluminium busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Manuals and Documentation
Catalog Number EZMR316125
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Enclosure Steel
Mounting Surface
Phase 3
Special Features Aluminium: busbar
Standard UL Listed
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358645&lang=en-us
UPC 785901308973
GTIN 00785901308973
Item Type Meter Center Branch Unit;Ringless
Width 12.25
Width UOM Inch
Height 66.12
Height UOM Inch
Depth 7.09 IN
