9001BW240 Harmony Type BW Complete Push Button Control Station, 600 V AC, 5 A, 1NO-1NC Contact, 2 Operators, NEMA 4 Rating
- MFR:
- Schneider Electric
- MFR #:
- 9001BW240
- UPC:
- 785901458753
- Item #:
- 162456
9001BW240 Harmony Type BW Complete Push Button Control Station, 600 V AC, 5 A, 1NO-1NC Contact, 2 Operators, NEMA 4 Rating
- MFR #:
- 9001BW240
- UPC:
- 785901458753
- Item #:
- 162456
Availability
| Location | Available Qty |
|---|---|
| Available | 3 ea |
$291.51
each

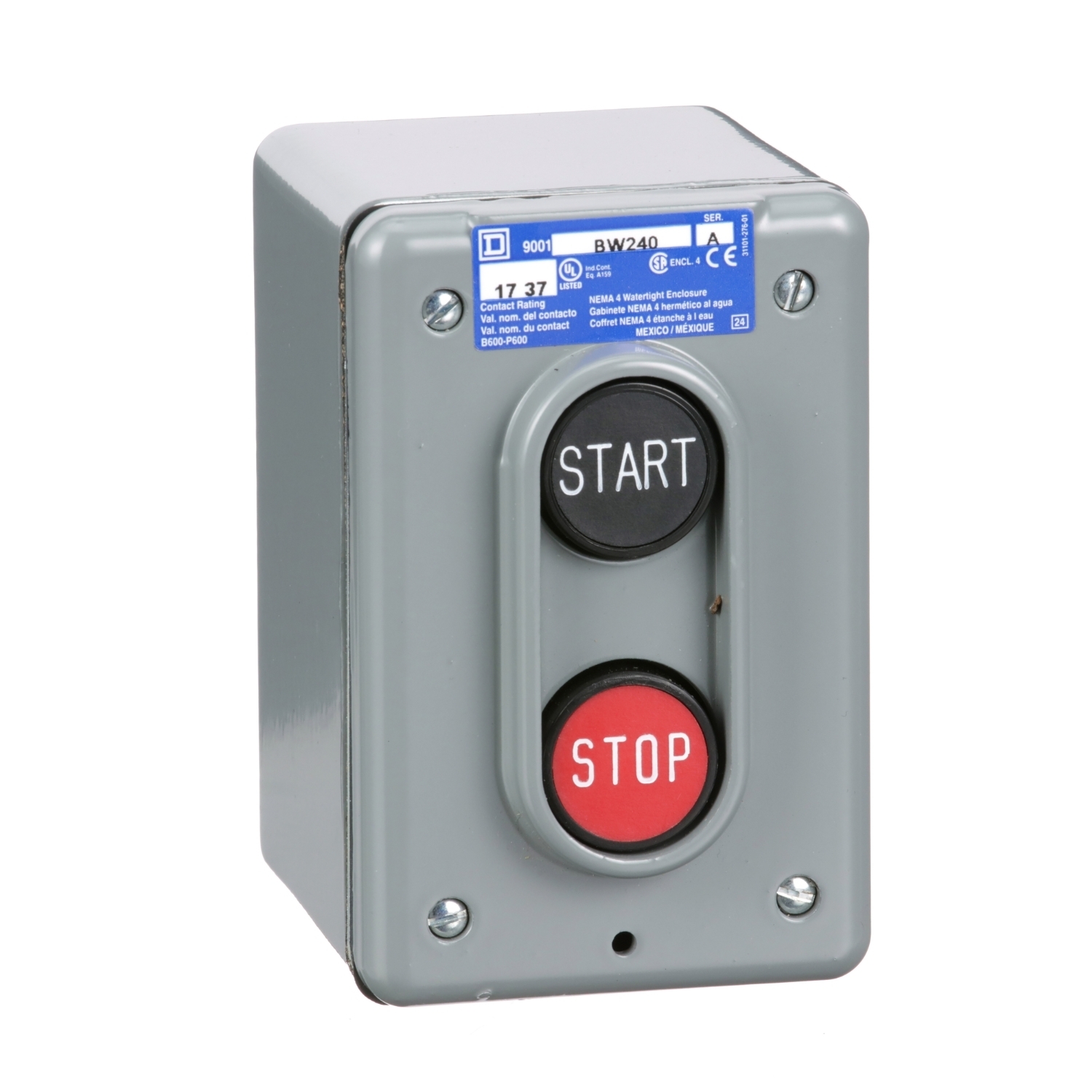

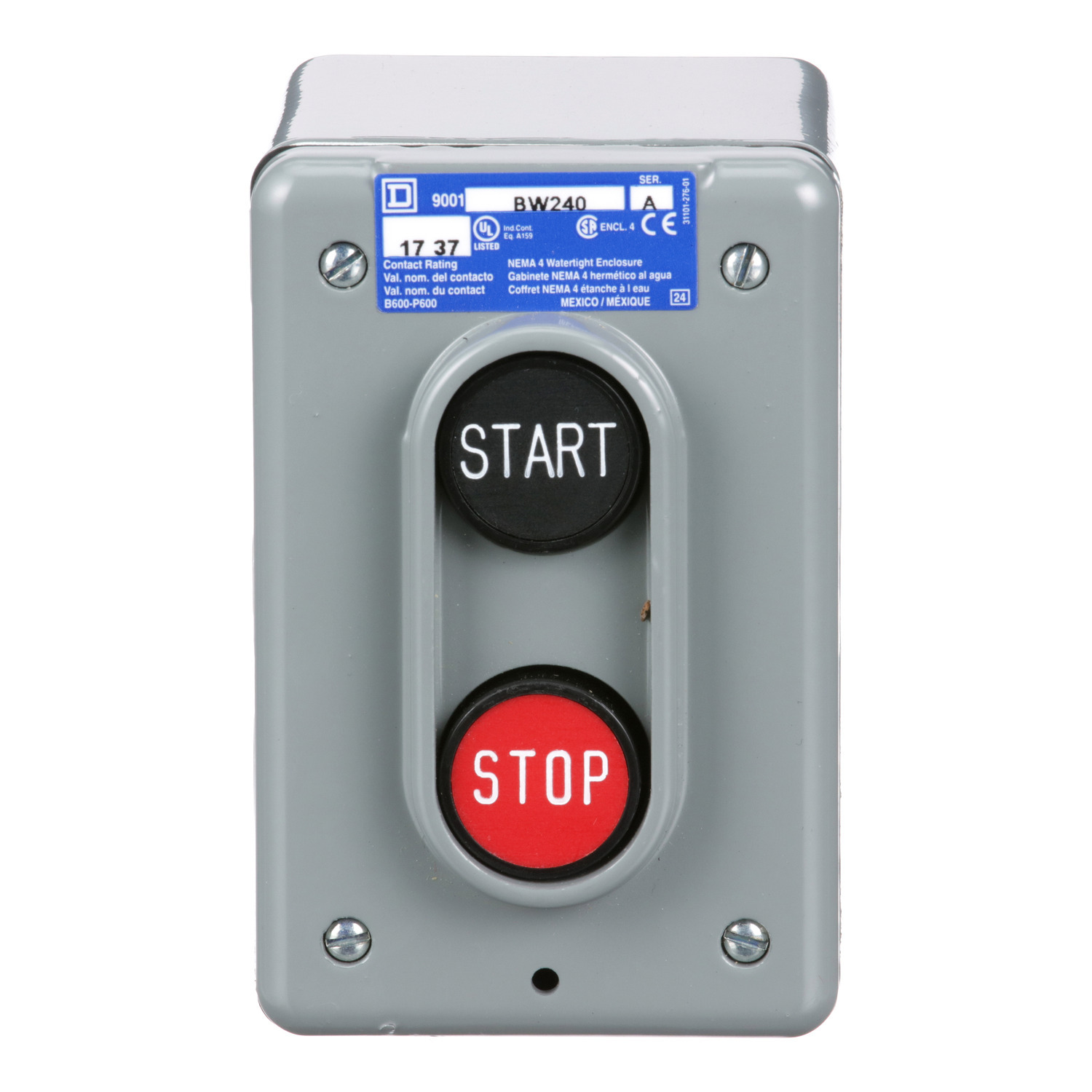

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has two round momentary push buttons. It has a START push button with a normally open contact. It has a STOP push button with a normally closed contact. This NEMA 4 watertight and dusttight control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Manuals and Documentation
| Catalog Number | 9001BW240 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=460183&lang=en-us |
| UPC | 785901458753 |
| GTIN | 00785901458753 |
