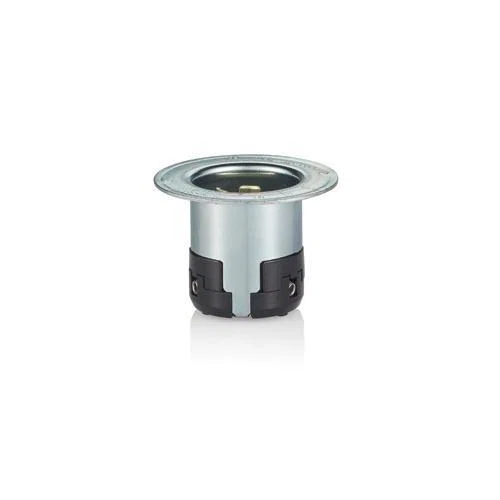

CS6377 Grounding Non-NEMA Locking Flanged Inlet, 125 V AC, 50 A, 2 Poles, 3 Wires, Gray Metal
- MFR:
- Leviton
- MFR #:
- CS6377
- UPC:
- 078477326046
- Item #:
- 161948
CS6377 Grounding Non-NEMA Locking Flanged Inlet, 125 V AC, 50 A, 2 Poles, 3 Wires, Gray Metal
- MFR #:
- CS6377
- UPC:
- 078477326046
- Item #:
- 161948
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Leviton® Black & White® 50 A non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid 1-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
Manuals and Documentation
Features
- Current interrupting certified for current interrupting at full rated current
| Manufacturer Part Number | CS6377 |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477326046 |
| Country Of Origin | MX |
| Amperage Rating | 50 A |
| Color | Gray Metal |
| Dimensions | 3.5 in Dia x 2.6 in H x 0.1 in THK |
| Material | Nylon |
| Temperature Rating | -40 to 75 deg C |
| Type | Grounding Non-NEMA |
| Voltage Rating | 125 V AC |
| Alternative Part Number | 10069829 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | Lifetime |
| Standards Approvals | RoHS Compliant | ANSI C-73 | CSA C22.2 No.42 152105 | NOM 057 | UL 498 File No. E13399 |
| Grade | Industrial |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Terminal Type | Screw |
