SCHNEIDER ELECTRIC

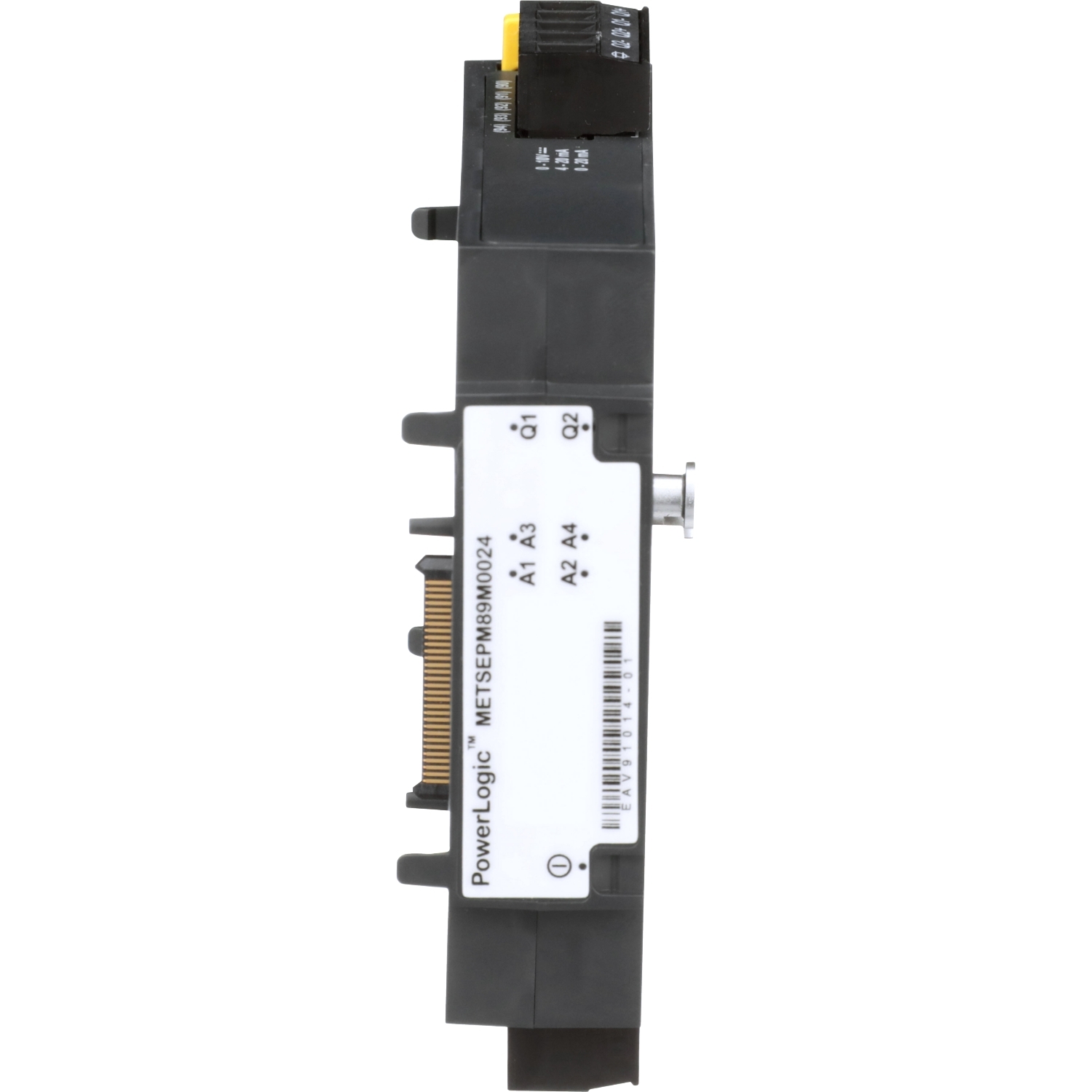

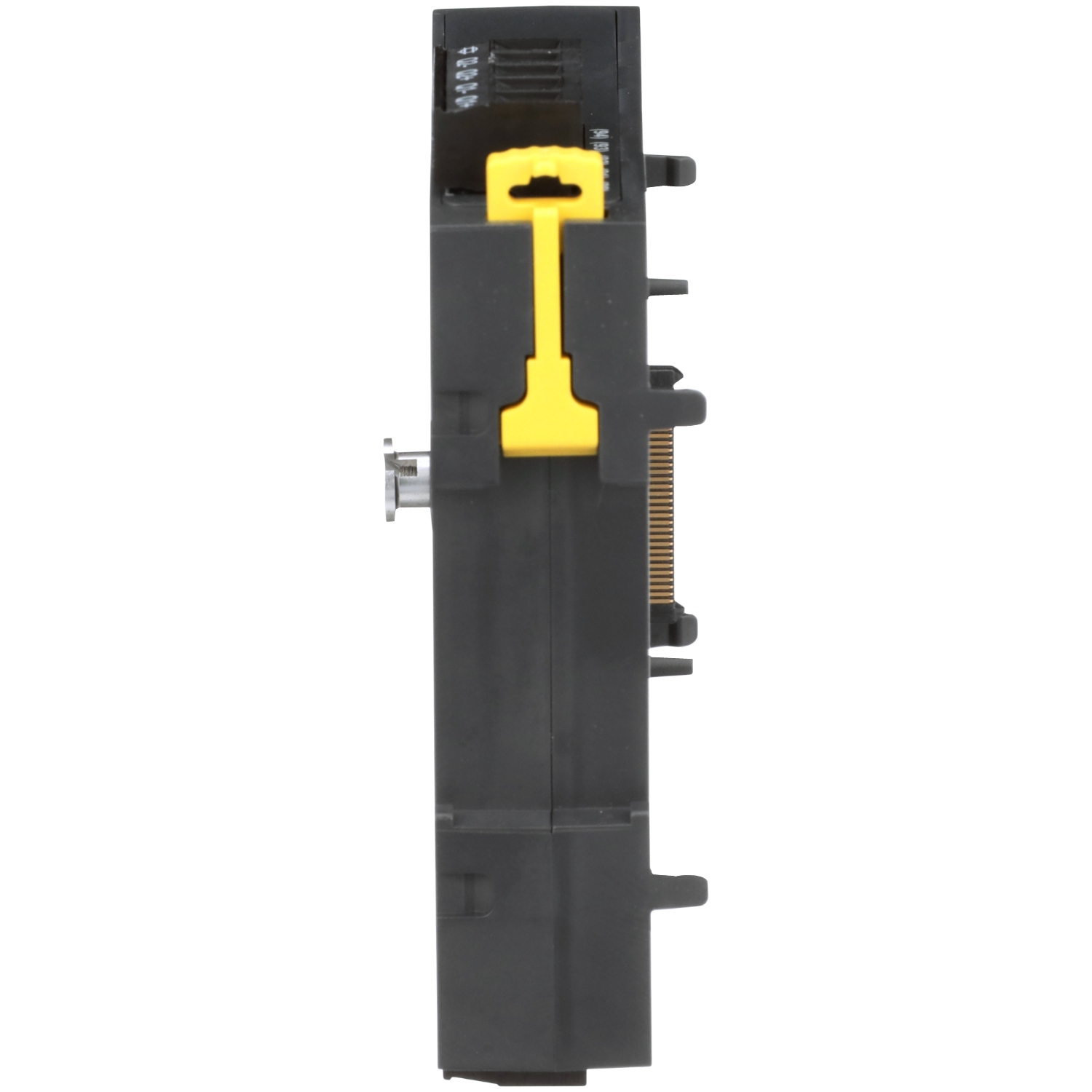

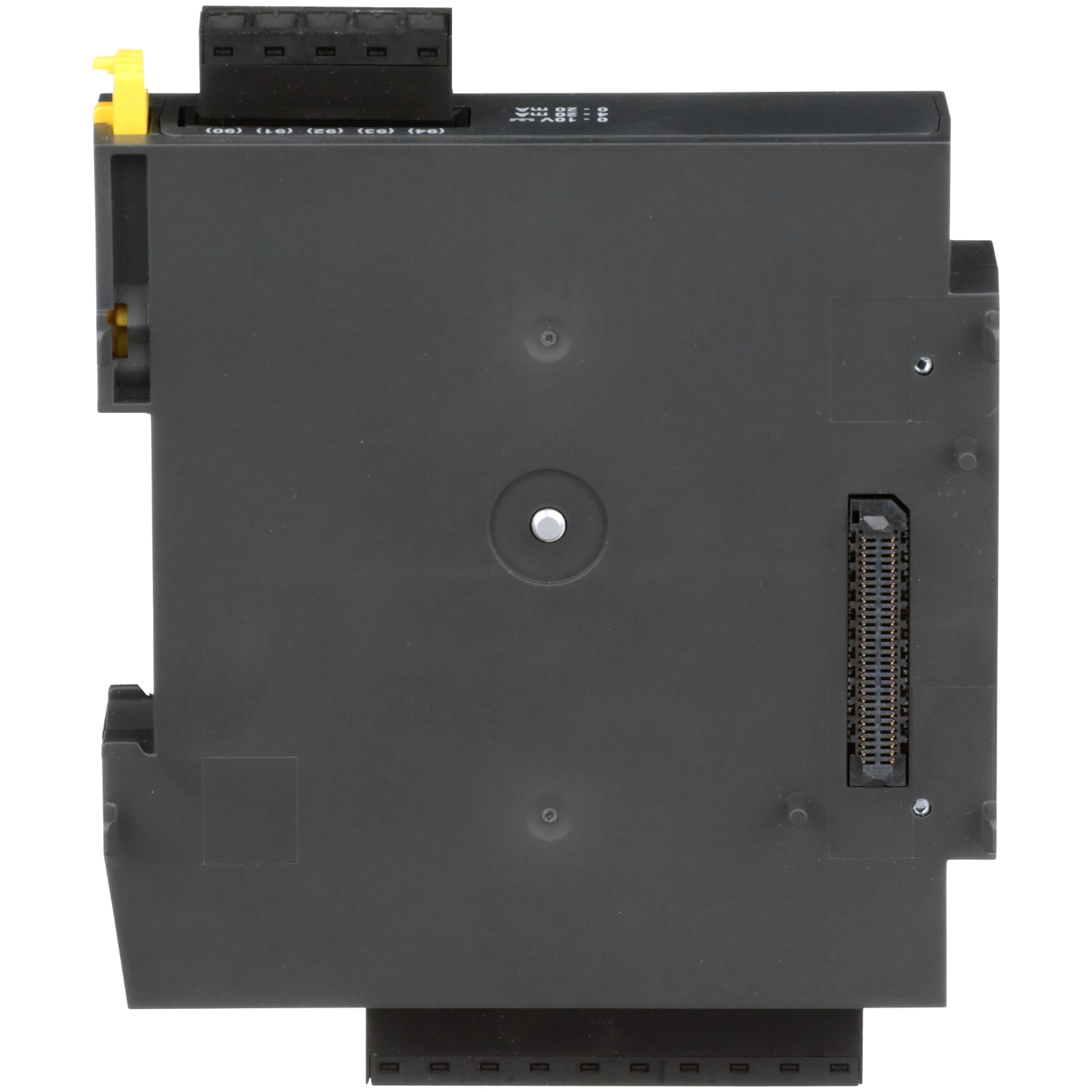

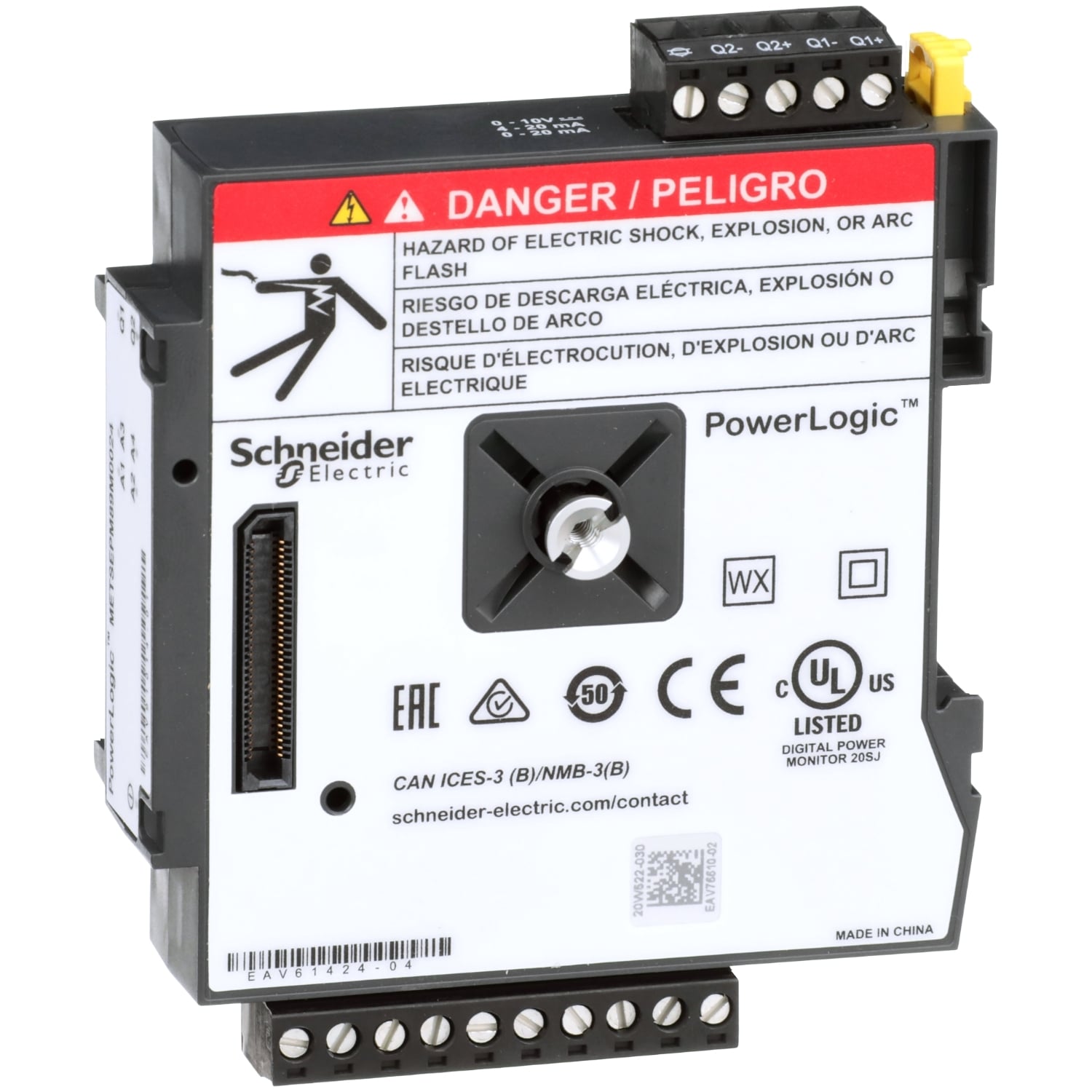

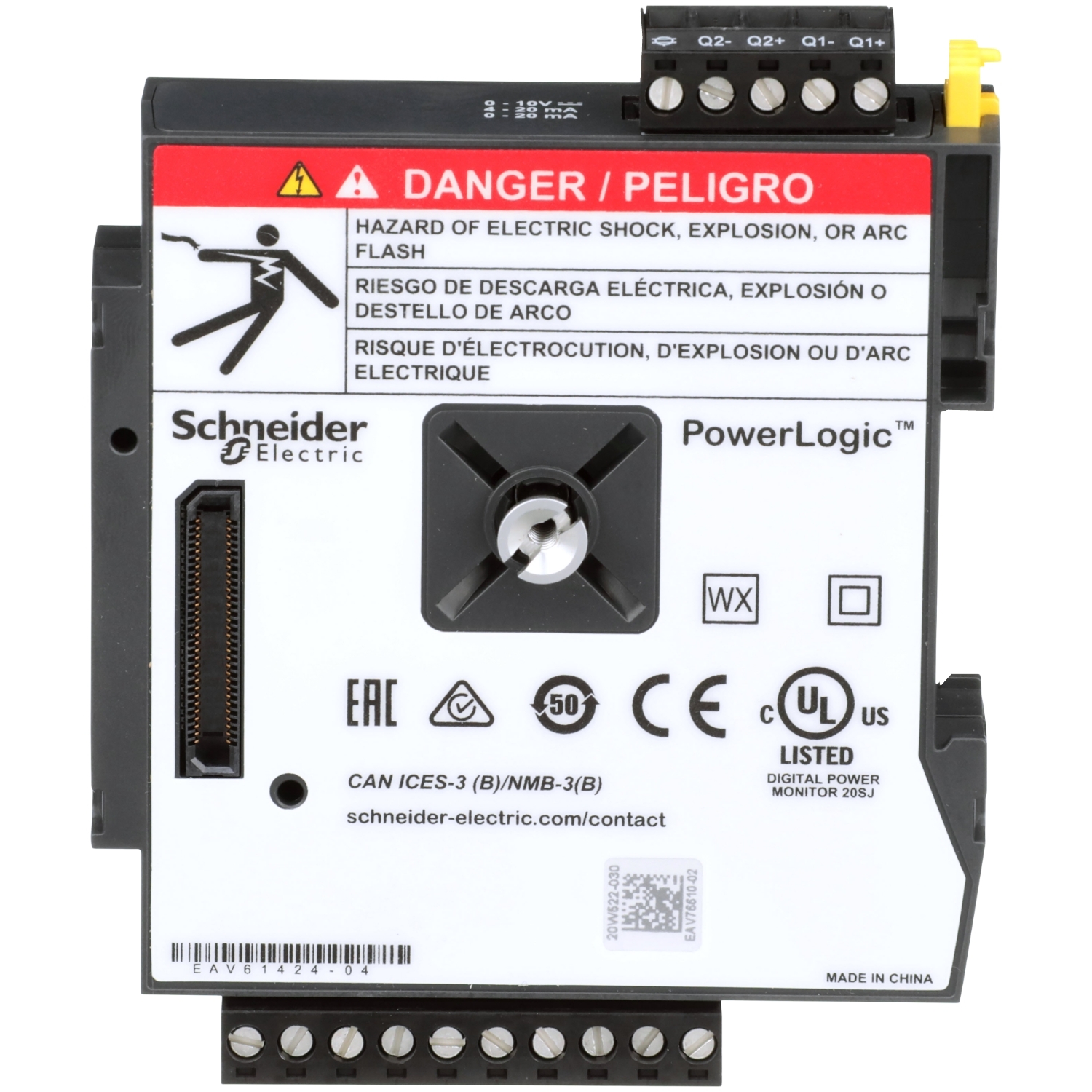

METSEPM89M0024 Input/Output Module, 4-Analog Input, 2-Analog Output

MFR:
Schneider Electric
MFR #:
METSEPM89M0024
Item #:
1616439

Availability

Location Available Qty
Available Available to Order
$2,399.11 each

Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional analog inputs and analog outputs. This analog module provides 4 analog inputs that support 0 to 20mA, 4 to 20mA and 0 to 30V. Plus 2 analog outputs to interface with BMS and other systems. The analog outputs support 0 to 20mA, 4 to 20mA and 0 to 10V. Analog inputs and outputs are sampled by the host meter at a 1/2 cycle (8-10ms) rate. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.

Manuals and Documentation
Catalog Number METSEPM89M0024
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin China
Made in USA No
Application Optional expansion module
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421346298&lang=en-us
GTIN 03606480702006
Item Type I/O module
Width 0.86610
Width UOM Inch
Height 3.56300
Height UOM Inch
