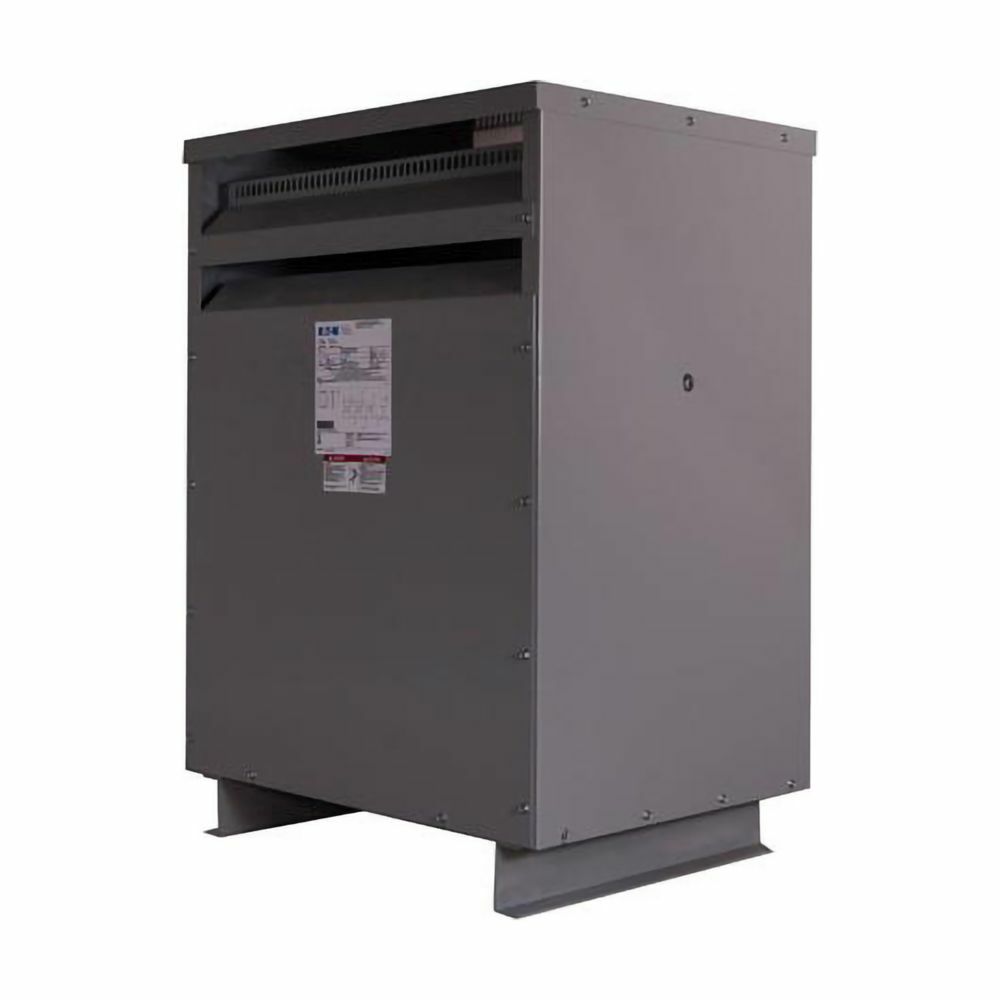

V29M48T1516 Type DT-3 Energy Efficient Ventilated Transformer, 208 V Primary, 480 V Secondary, 15 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Eaton
- MFR #:
- V29M48T1516
- UPC:
- 786680220890
- Item #:
- 1616181
V29M48T1516 Type DT-3 Energy Efficient Ventilated Transformer, 208 V Primary, 480 V Secondary, 15 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- V29M48T1516
- UPC:
- 786680220890
- Item #:
- 1616181
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$10,839.59
each
Eaton types DS-3 (single-phase) and DT-3 (three-phase) general purpose ventilated dry-type transformers are two-winding, self-cooled, and available in a wide variety of primary and secondary voltage combinations. General purpose transformers are designed for continuous operation at rated kVA. They are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards.
Manuals and Documentation
| Catalog Number | V29M48T1516 |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Frequency Rating | 60 Hz |
| Insulation Class | 220 Degrees C |
| Mounting | Wall |
| Phase | 3 |
| Primary Voltage | 208 V |
| Secondary Voltage | 480 V |
| Special Features | Fungus-resistent varnished core and coil |
| Standard | UL Listed,DOE2016 Efficient |
| UPC | 786680220890 |
| GTIN | 00786680220890 |
| Item Type | Ventilated transformer |
| Dimensions | 17.7500 IN X 21.8800 IN X 28.0000 IN |
| Temperature Rating | 150 Degrees C rise |
