Appleton

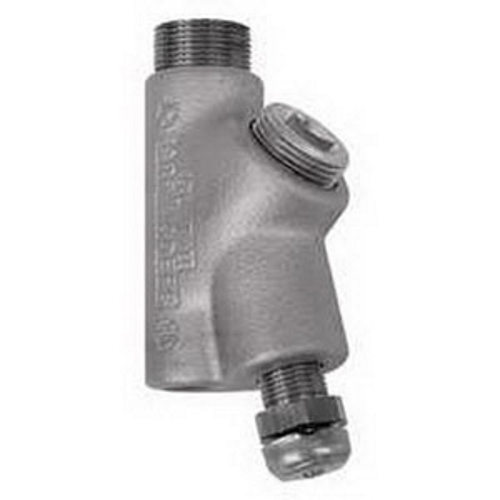

Vertical Drain Seal Fitting with Removable Nipple, 1 inch, FNPT x FNPT, Malleable Iron

MFR:
Appleton Electric
MFR #:
EYDM100
UPC:
781381230094
Item #:
161590

Availability

Location Available Qty
Available Available to Order
$199.78 each

UNILETS EYDM Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting With Removable Nipple, Size: 1 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered MNPT X Tapere

Manuals and Documentation

Features

  • Explosion proof, dust-ignition proof and raintight
  • Smooth, rounded integral bushing
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity
  • UL listed
  • CSA certified
Catalog Number EYDM100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit and IMC
Connection Tapered MNPT X Tapered FNPT
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Material Malleable Iron
Special Features For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; U
Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D; Class II, Groups E, F, G; And Class III
RoHS Indicator Contact Manufacturer
UPC 781381230094
GTIN 00781381230094
Item Type EYDM Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting With Removable Nipple
Length 14.4000
Length UOM Inch
Width 13.5000
Width UOM Inch
Height 0.2720
Height UOM Inch
Weight 2.550
Weight UOM Pounds
Size 1
