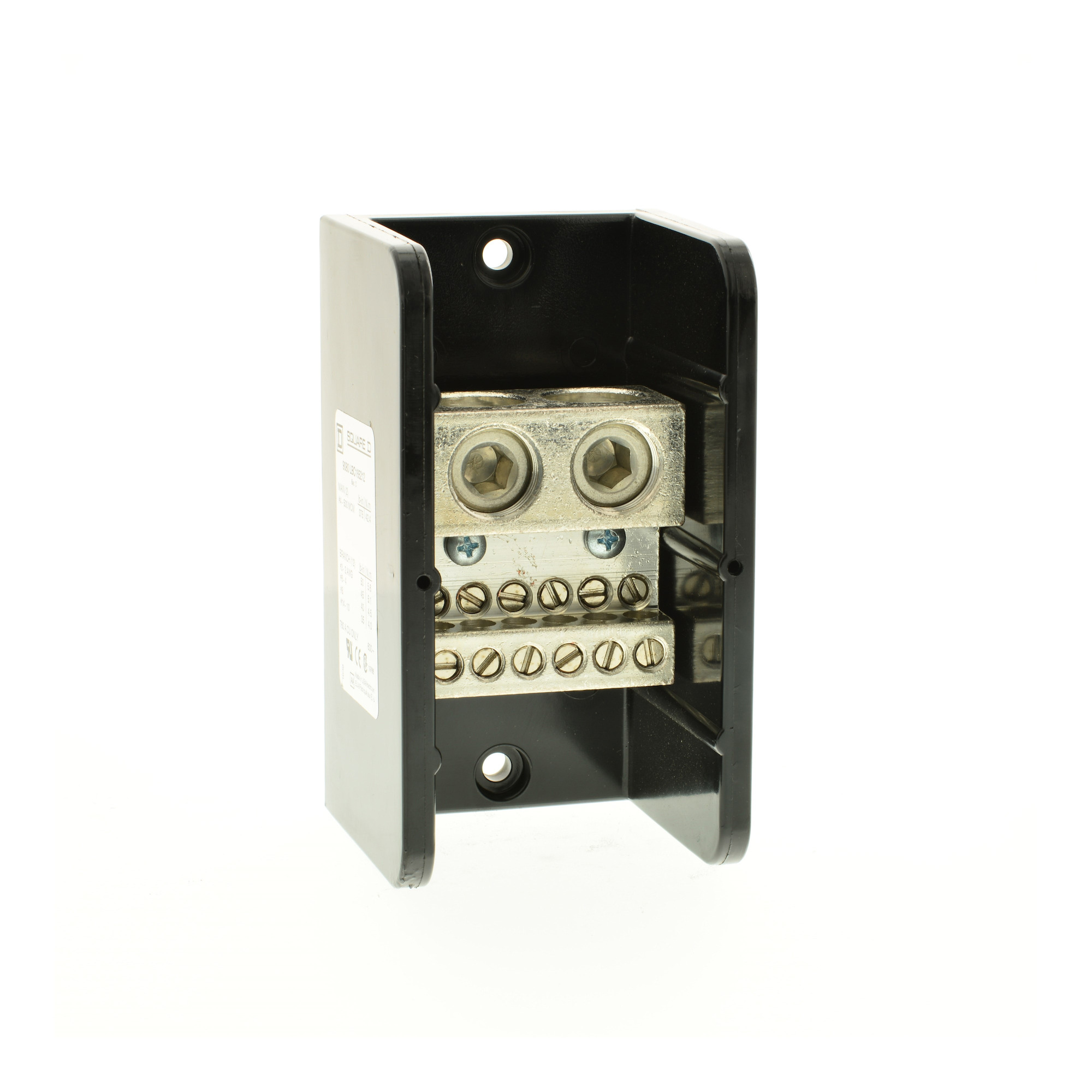

9080LBC165212 Power Distribution Block, 600 VAC, 760 A, 1 Pole, 4 AWG to 500 kcmil, 14 to 2 AWG Wire, Phenolic
- MFR:
- Schneider Electric
- MFR #:
- 9080LBC165212
- UPC:
- 785901097648
- Item #:
- 161400
9080LBC165212 Power Distribution Block, 600 VAC, 760 A, 1 Pole, 4 AWG to 500 kcmil, 14 to 2 AWG Wire, Phenolic
- MFR #:
- 9080LBC165212
- UPC:
- 785901097648
- Item #:
- 161400
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |

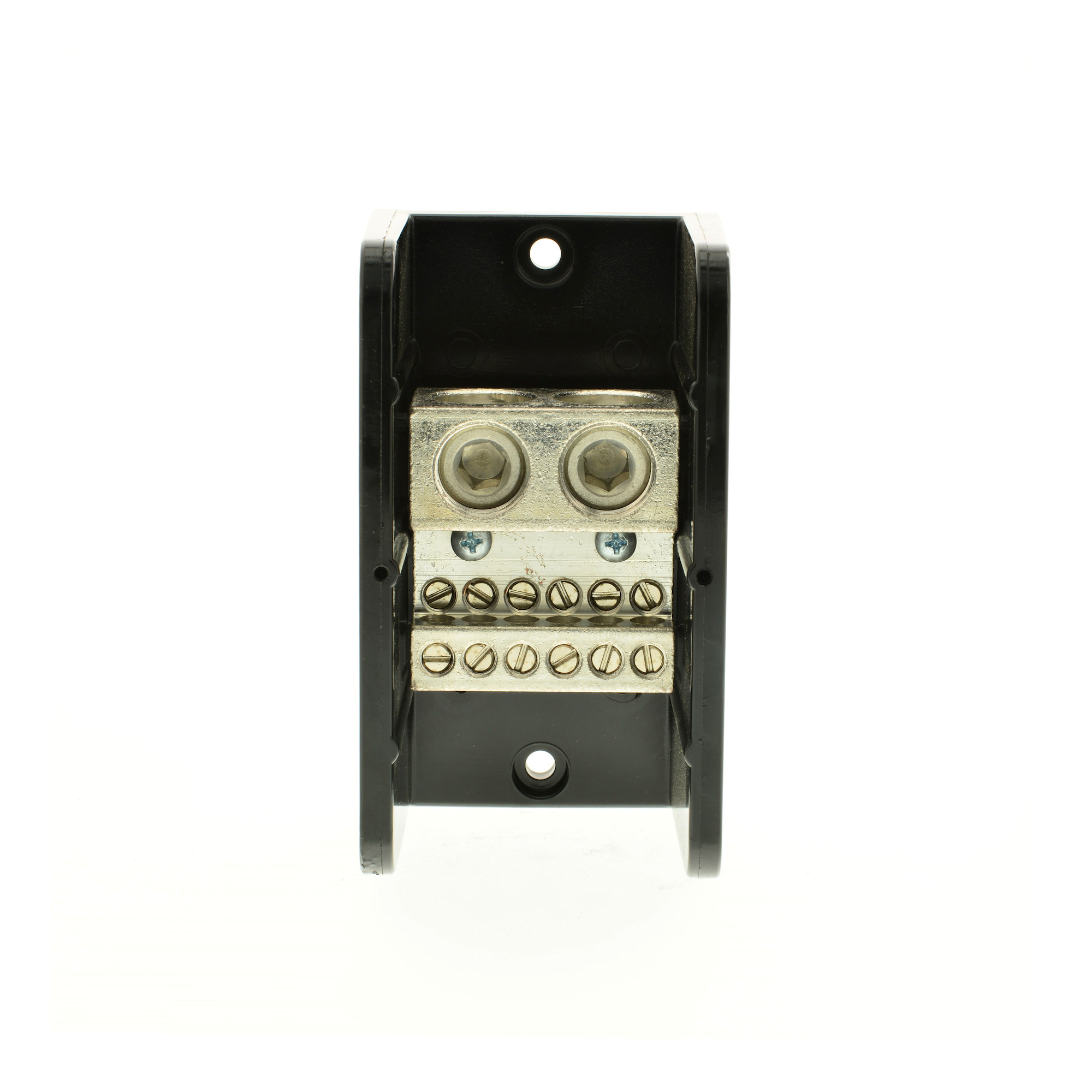

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has two lug openings on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper wire. The load side lug is rated to accept one #14 to 2 copper wire. The lugs are made of copper. The lugs are rated for 760 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Manuals and Documentation
| Catalog Number | 9080LBC165212 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373025&lang=en-us |
| UPC | 785901097648 |
| GTIN | 00785901097648 |
| Width | 3.17 |
| Width UOM | Inch |
| Height | 5.5 |
| Height UOM | Inch |
| Depth | 3.13 IN |
