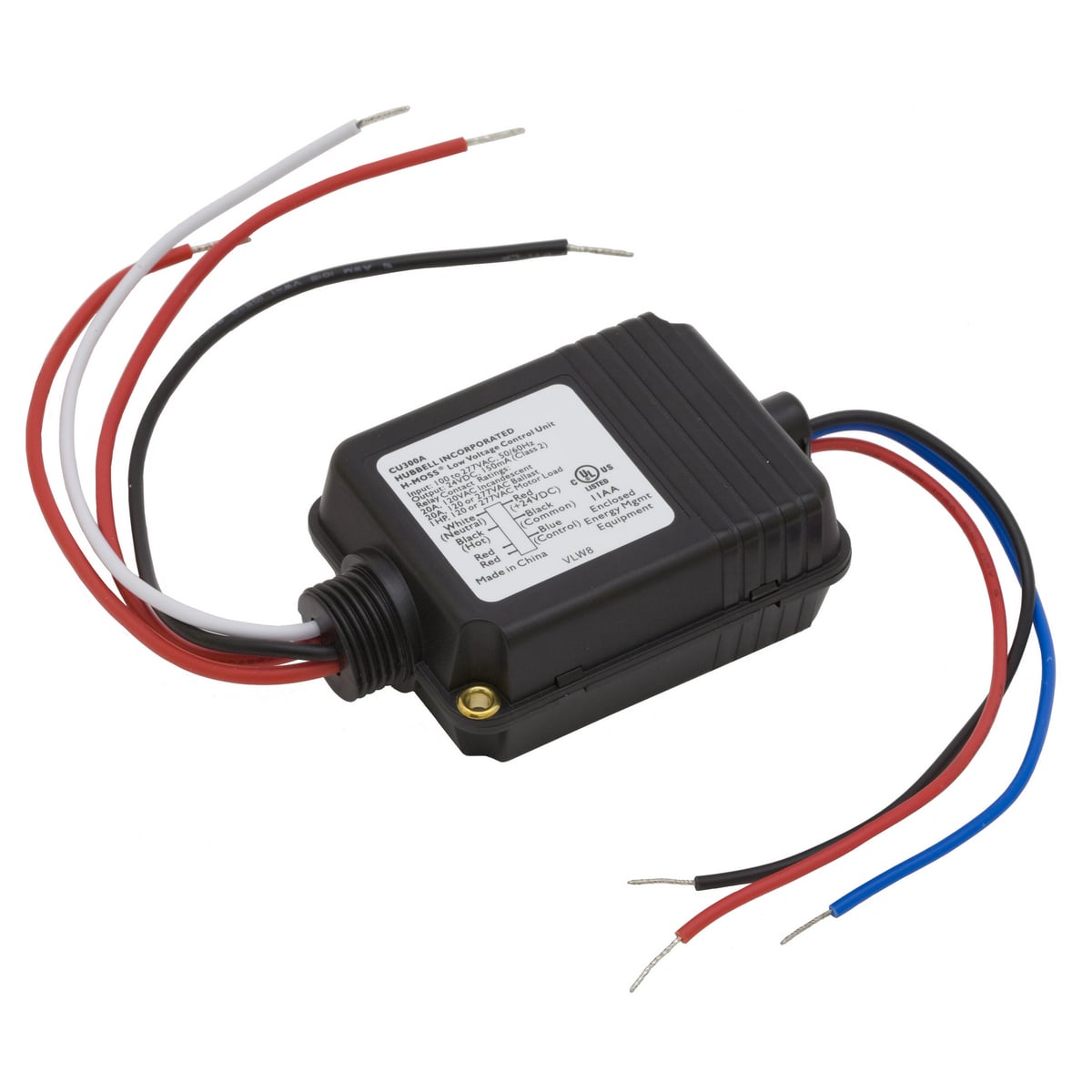

CU300M Momentary Version Control Unit, 120/277 V AC, 8/16 A, 0 to 1800 W at 120 V AC Incandescent, 0 to 2400 W at 277 V AC Ballast, 0 to 5540 W Ballast Power Rating, 3.69 in L x 2.33 in W x 1.36 in H
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- CU300M
- UPC:
- 783585159362
- Item #:
- 160739
CU300M Momentary Version Control Unit, 120/277 V AC, 8/16 A, 0 to 1800 W at 120 V AC Incandescent, 0 to 2400 W at 277 V AC Ballast, 0 to 5540 W Ballast Power Rating, 3.69 in L x 2.33 in W x 1.36 in H
- MFR #:
- CU300M
- UPC:
- 783585159362
- Item #:
- 160739
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$103.33
each

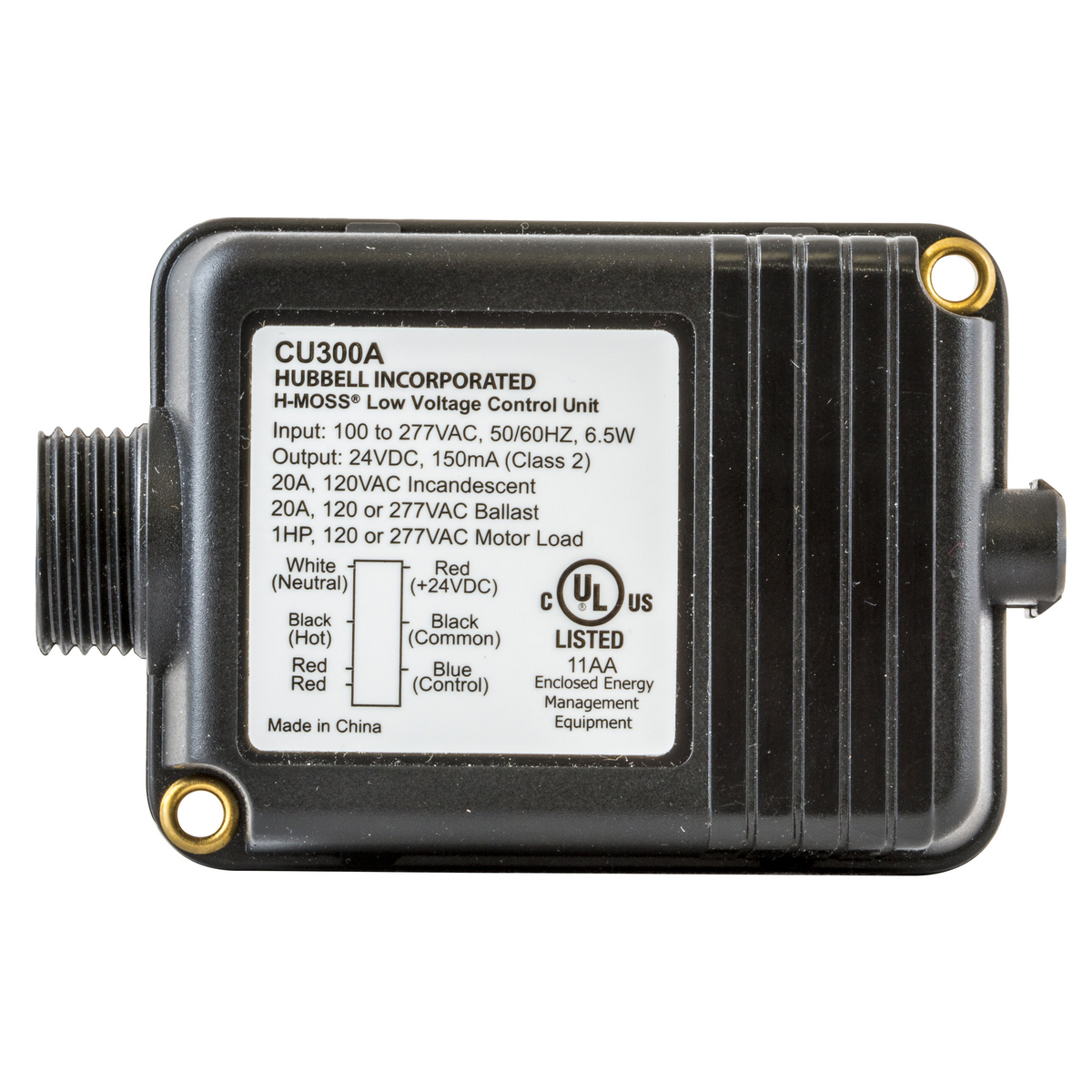

The CU300 series provides 24V DC power supply for sensors or sensor/Add-A-Relay combinations.The control units contain an internal relay for the control of an external load. Control units are plenumrated cULus Listed.
Manuals and Documentation
| Catalog Number | CU300M |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | China |
| Made in USA | No |
| Application | Manual On |
| Color | Black |
| Connector | Wire Leads |
| Control Output | Input Voltage |
| Mounting | Screw |
| Operating Cycles | 6,000 Cycles Minimum |
| Special Features | Momentary Version Control Unit |
| Standard | ASHRAE 90.1 Compliant;cULus Listed To UL916;UL2043 Plenum Rated Per NEC® 2014 300.22(C)(3) |
| Supply Voltage | 120/277V AC V |
| UPC | 783585159362 |
| GTIN | 00783585159362 |
| Item Type | Accessories |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Operating Temperature | 32 Deg F to 104 Deg F (0 Deg C to 40 Deg C) |
| Target Size | People in |
