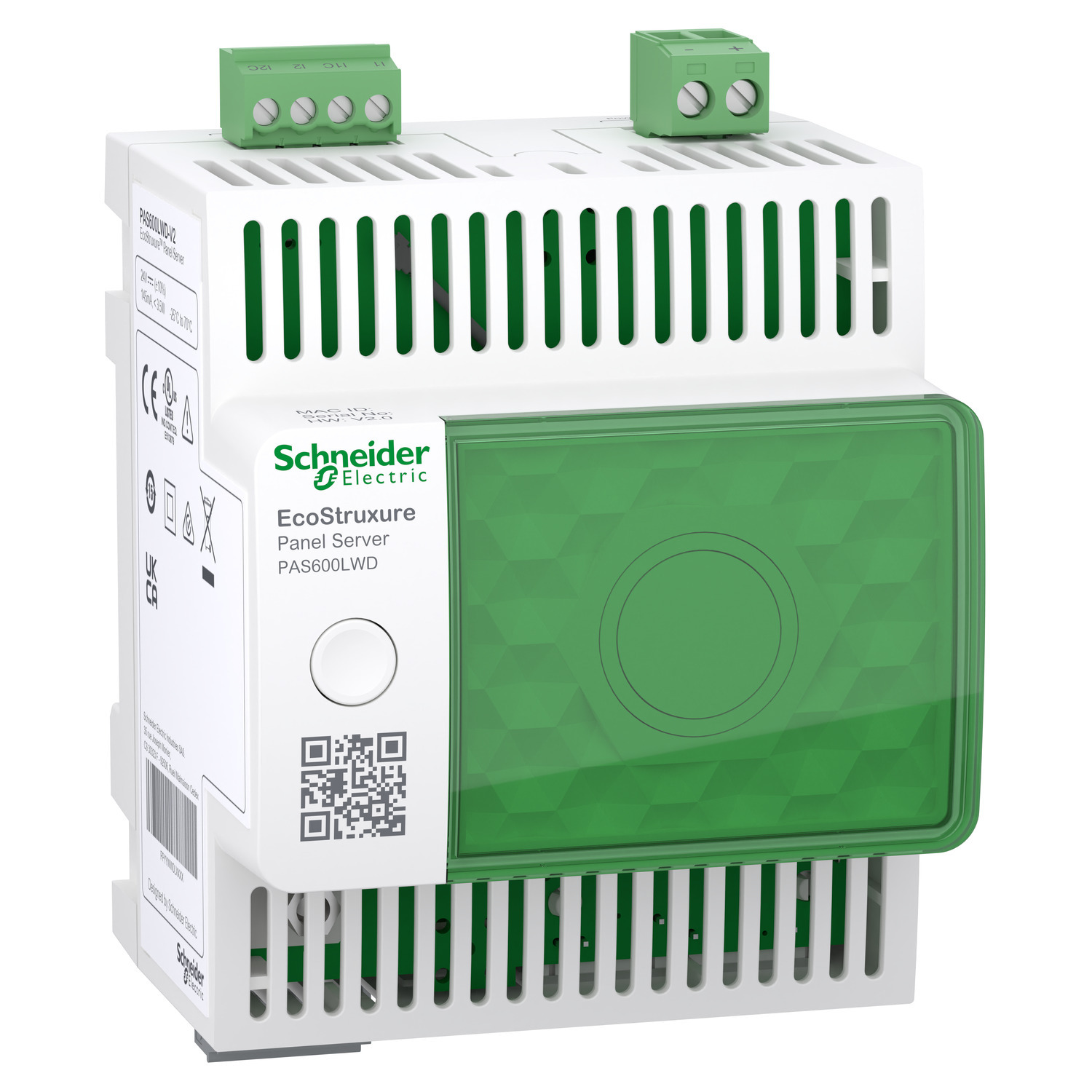

EcoStruxure Panel Server Wired by Design - universal concentrator modbus gateway 24 VDC

MFR: Schneider Electric
MFR #: PAS600LWD
Item #: 1607003

EcoStruxure Panel Server Wired by Design - universal concentrator modbus gateway 24 VDC

MFR #: PAS600LWD
Item #: 1607003
Availability
Location Available Qty
Available Available to Order
$1320.85 each

EcoStruxure Panel Server is a gateway, providing connection of wired smart IoT devices to edge control software or cloud application. The Wired by Design models offer perfect fit for specific application accepting only wired connection. Connect most of Modbus/RS485 and Modbus/TCP devices from the market including Power Meters and Protection devices from Schneider-Electric and third parties. User friendly web-pages offer first-level of monitoring of measurements of all the connected devices including log of all alarms. Simple troubleshooting of the system through embedded web-pages with advanced diagnostic information and logs. Easy commissioning through embedded web-pages or with EcoStruxure Power Commission that will offer commissioning reports and advanced features. 24VDC Power Supply 3W max. parameters are -25C to +70C operating temperature, 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC62974-1, Marine certification, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IP40 front face nose and IP30 on others faces. Two 10/100 Base-T Ethernet RJ45 connectors. Modbus RS485 open-style connector. Connector for two Digital Inputs for dry contact or WAGES. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Facility Expert, EcoStruxure Energy Hub, Asset Advisor and Resource Advisor.

Catalog Number
PAS600LWD
Manufacturer
Schneider Electric
Brand
Schneider Electric
Country of Origin
India
Made in USA
No
GTIN
03606486837573
