Square D

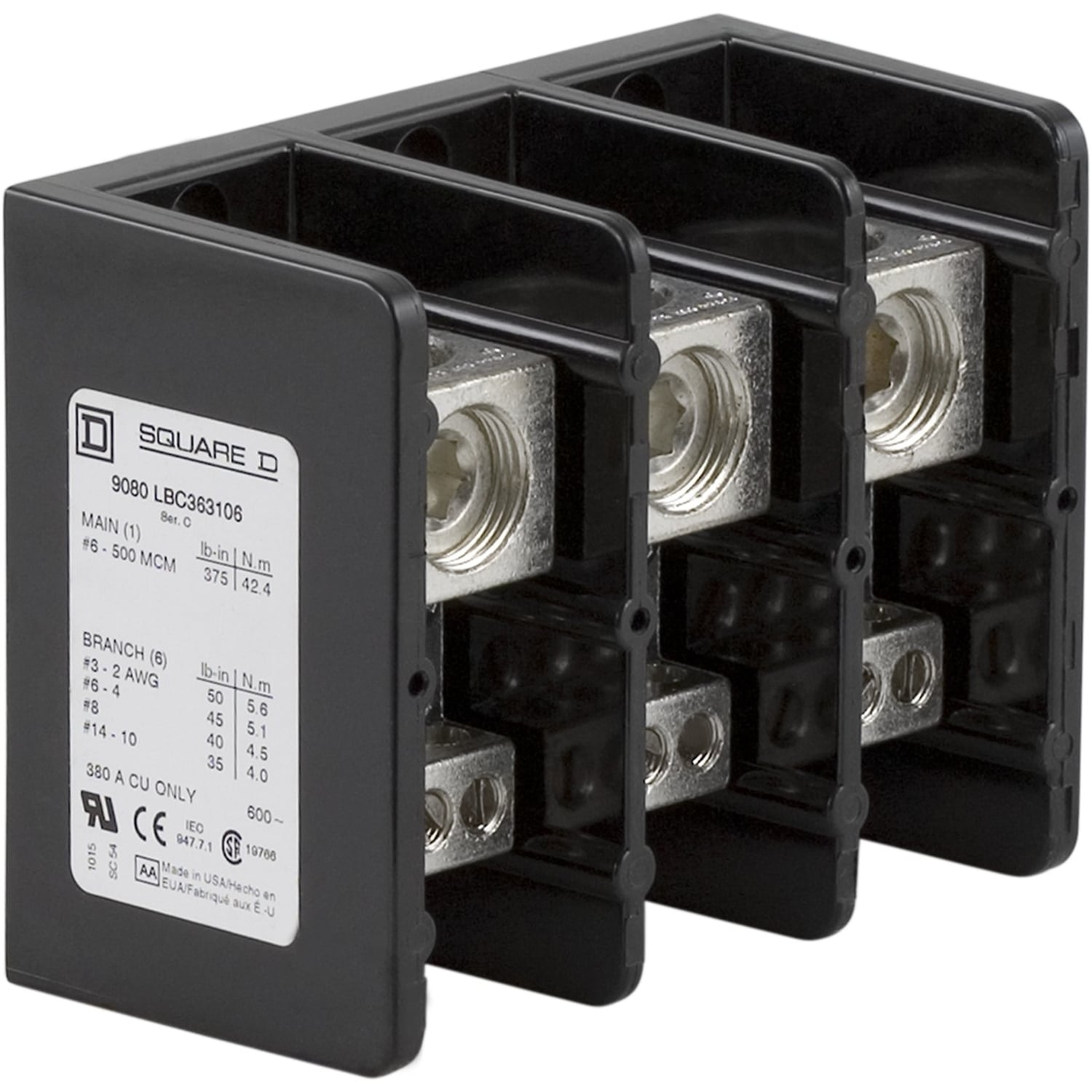

9080LBC363106 Linergy Multi-Pole Power Distribution Block, 600 V AC/DC, 380 A, 3 Poles, 14 to 2 AWG, 4 AWG to 500 kcmil Wire, Phenolic

MFR:
Schneider Electric
MFR #:
9080LBC363106
UPC:
785901097686
Item #:
160102

Availability

Location Available Qty
Available Available to Order
$570.11 each

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 500 kcmil copper wire. The load side lug is rated to accept one #14 to #2 copper wire. The lugs are made of copper. The lugs are rated for 300 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals and Documentation
Catalog Number 9080LBC363106
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Tin plated copper lugs;Load lug 40 lbf.in AWG 8 copper;load lug 35 lbf.in AWG 14...AWG 10 copper;line lug 375 lbf.in AWG 4...500 kcmil copper;load lug 50 lbf.in AWG 2 copper;load lug 45 lbf.in AWG 6...AWG 4 copper
Material Phenolic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373039&lang=en-us
UPC 785901097686
GTIN 00785901097686
Item Type Power Distribution Block;9080LB33
Width 5.0
Width UOM Inch
Height 4.0
Height UOM Inch
Depth 2.61 IN
