Telemecanique

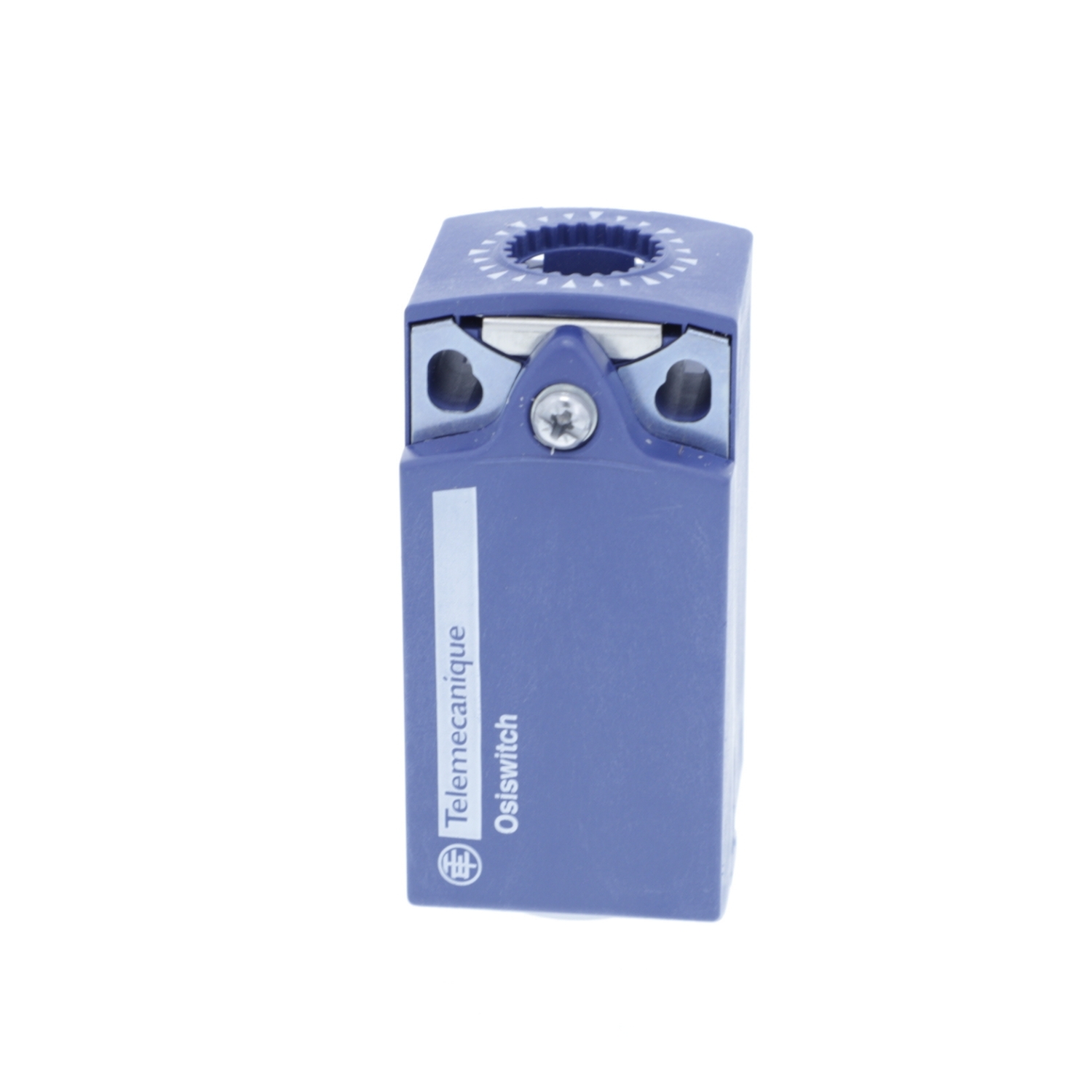

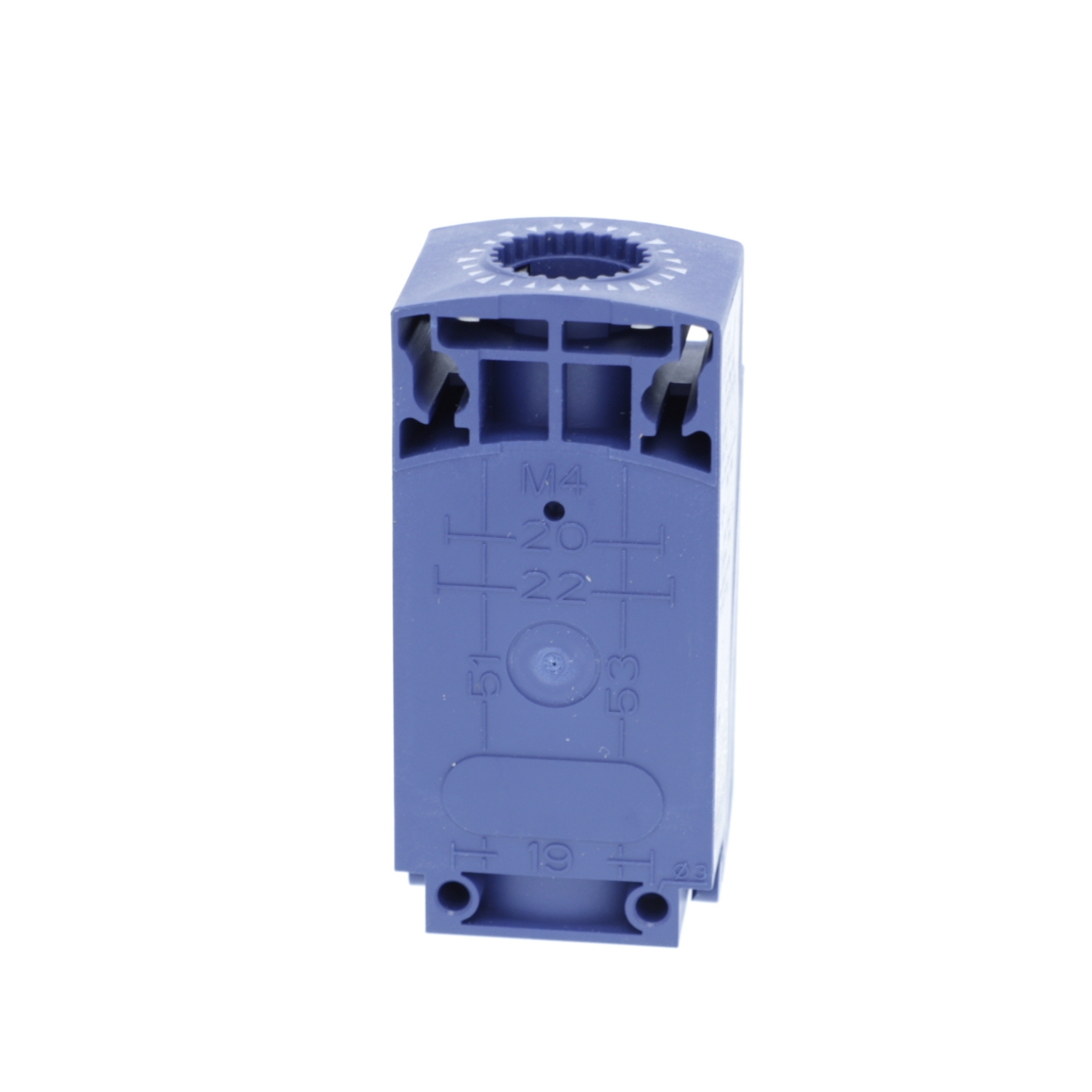

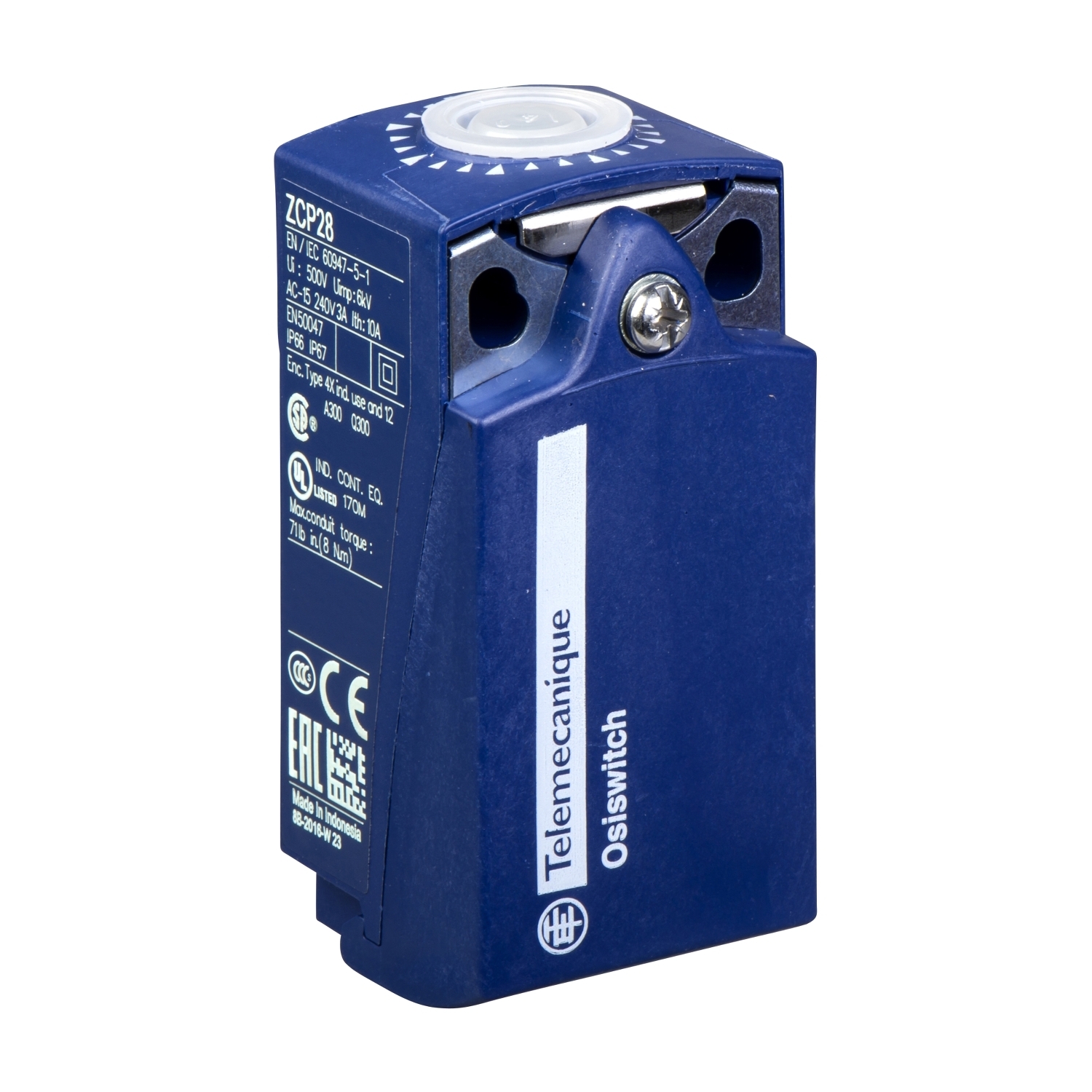

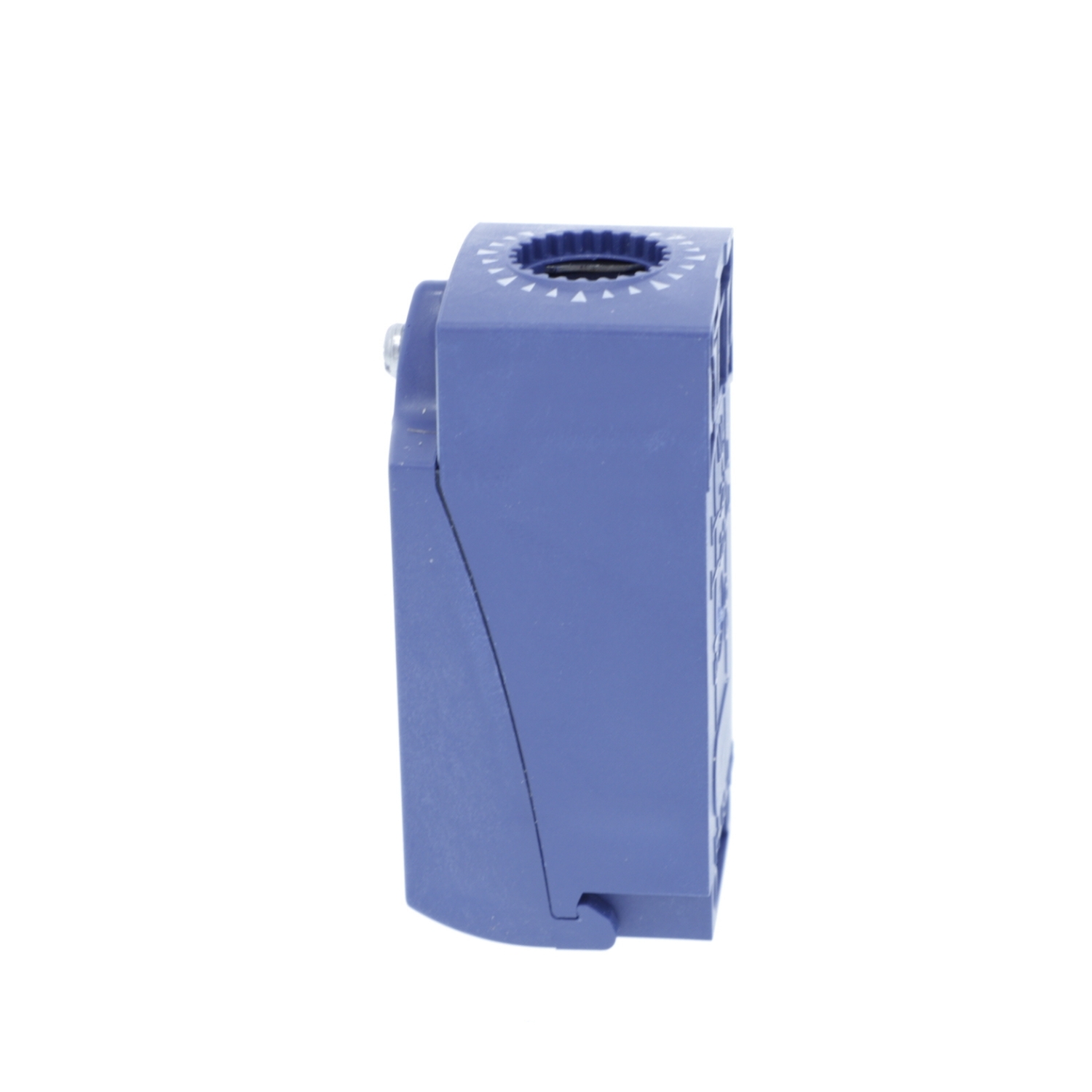

ZCP28 OsiSense XC 2-Pole Fixed Limit Switch Body, 2NO Contact, For Use With XCKP Standard Compact Limit Switch, 10 A, 1.5 A at 240 V AC, 0.1 A at 250 V DC Contact

MFR:
Telemecanique Sensors
MFR #:
ZCP28
UPC:
785901470816
Item #:
159685

Availability

Location Available Qty
Available Available to Order
$49.30 each

This ZCP body/contact assembly has standard contacts and a plastic body. It has 2 x NO simultaneous (slow break) contacts. It can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges.

Manuals and Documentation
Catalog Number ZCP28
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Japan
Made in USA No
Action Slow-break, simultaneous
Amperage Rating 10
Application XCKP
Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm²
Contact Configuration 2 NO
Operating Cycles 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED
Standard IEC, UL LISTED, CSA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880402&lang=en-us
UPC 785901470816
GTIN 03389110181487
Item Type Limit switch body
Size 1.18
Operating Temperature -25-70 A Degrees C
