SQUARE D

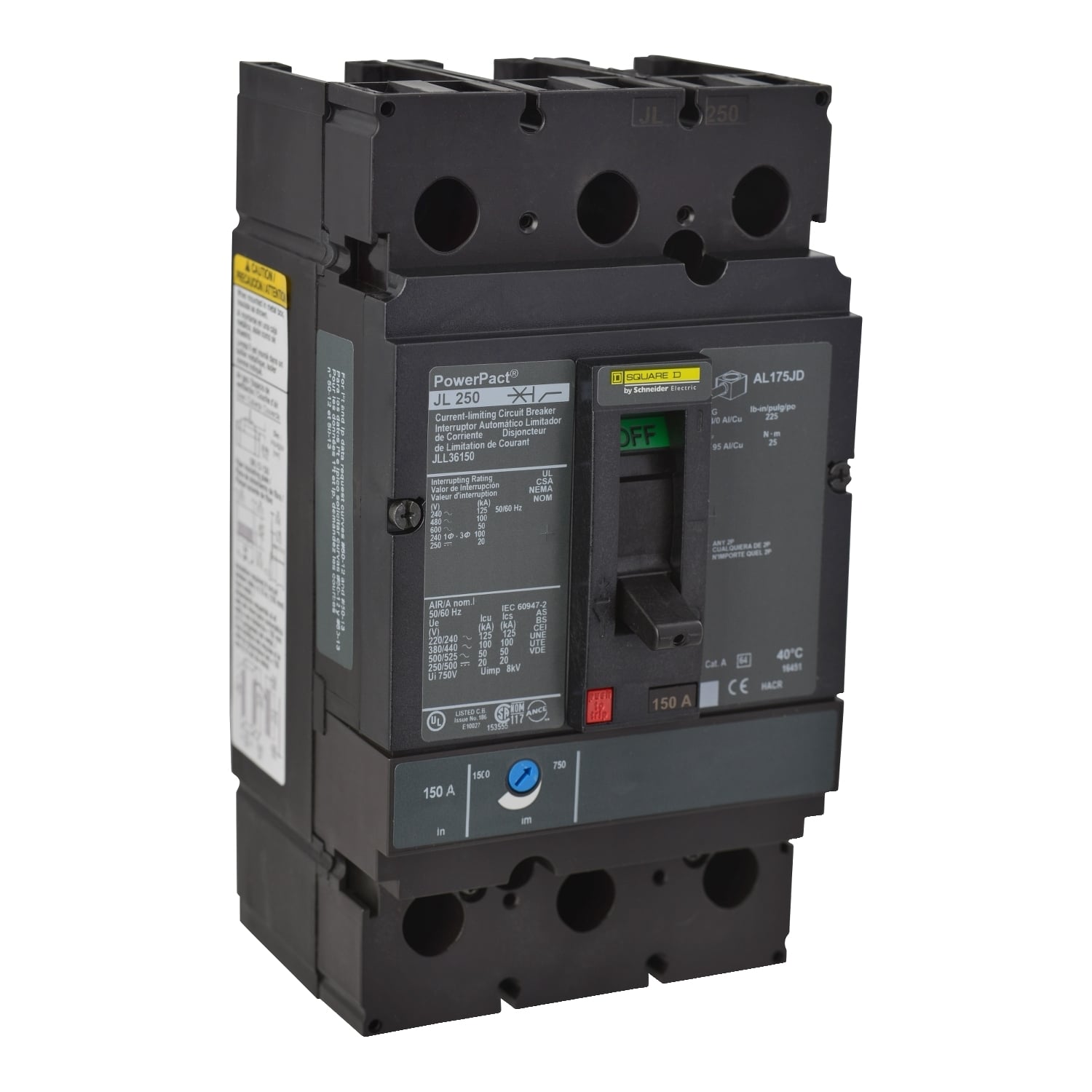

Circuit breaker, PowerPacT J, 150A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 80%

MFR:
Schneider Electric
MFR #:
JLL36150
UPC:
785901598756
Item #:
1596341

Availability

Location Available Qty
Available Available to Order
$8,188.73 each

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 150A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals and Documentation
Catalog Number JLL36150
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Lugs, line;lugs, load; AWG 4...AWG 4/0 aluminium/copper terminal
Control Toggle
Number of Poles 3
Special Features Modbus
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=426389&lang=en-us
UPC 785901598756
GTIN 00785901598756
Item Type Circuit breaker
Trip Type Thermal-magnetic
