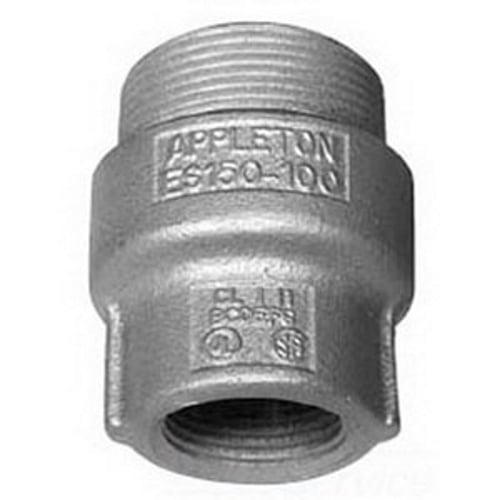

S150100 Sealing Hub; 1-1/2 Inch x 1 Inch, Male x Female, Malleable Iron
MFR: Appleton Electric
MFR #: ES150100
UPC: 781381703222
Item #: 159585
S150100 Sealing Hub; 1-1/2 Inch x 1 Inch, Male x Female, Malleable Iron
MFR #: ES150100
UPC: 781381703222
Item #: 159585
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$55.36
each
UNILETS Sealing Hub, Size: 1 X 1-1/2 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered MNPT X Tapered FNPT, Cubic Capacity: 3.1 CU-IN, Length: 3.13 IN, Height: 2-1/
Manuals and Documentation
Features
- Dimension: 2.250 Inch Overall Dia x 3.130 Inch Height
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Allows up to 25% conduit fill in compliance with the national electrical code
- Catalog Number
- ES150100
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Threaded Rigid Metal Conduit and IMC
- Connection
- Tapered MNPT X Tapered FNPT
- Cubic Capacity
- 3.1 CU IN
- Finish
- Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
- Material
- Malleable Iron
- Special Features
- Explosionproof, dust-ignitionproof; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Allows up to 25 PCT conduit fill in compliance with the National Electrical Code; Can be used as a male thread enlarger or conduit hub in an ordinary location; UL listed for use with Kwiko A sealing compound, also listed with certain competitors sealing cement, contact factory for details; Kwiko A cement required: 1 OZ/GM; Used to seal vertical conduit risers at switch gear and motor control centers, sheet metal structures or cast boxes and enclosures
- Standard
- UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, D; Class II, Groups E, F, G; And Class III
- RoHS Indicator
- Yes
- UPC
- 781381703222
- GTIN
- 00781381703222
- Item Type
- Sealing Hub
- Length
- 4.5000
- Length UOM
- Inch
- Width
- 3.6000
- Width UOM
- Inch
- Height
- 3.0000
- Height UOM
- Inch
- Weight
- 1.150
- Weight UOM
- Pounds
- Size
- 1 X 1-1/2
