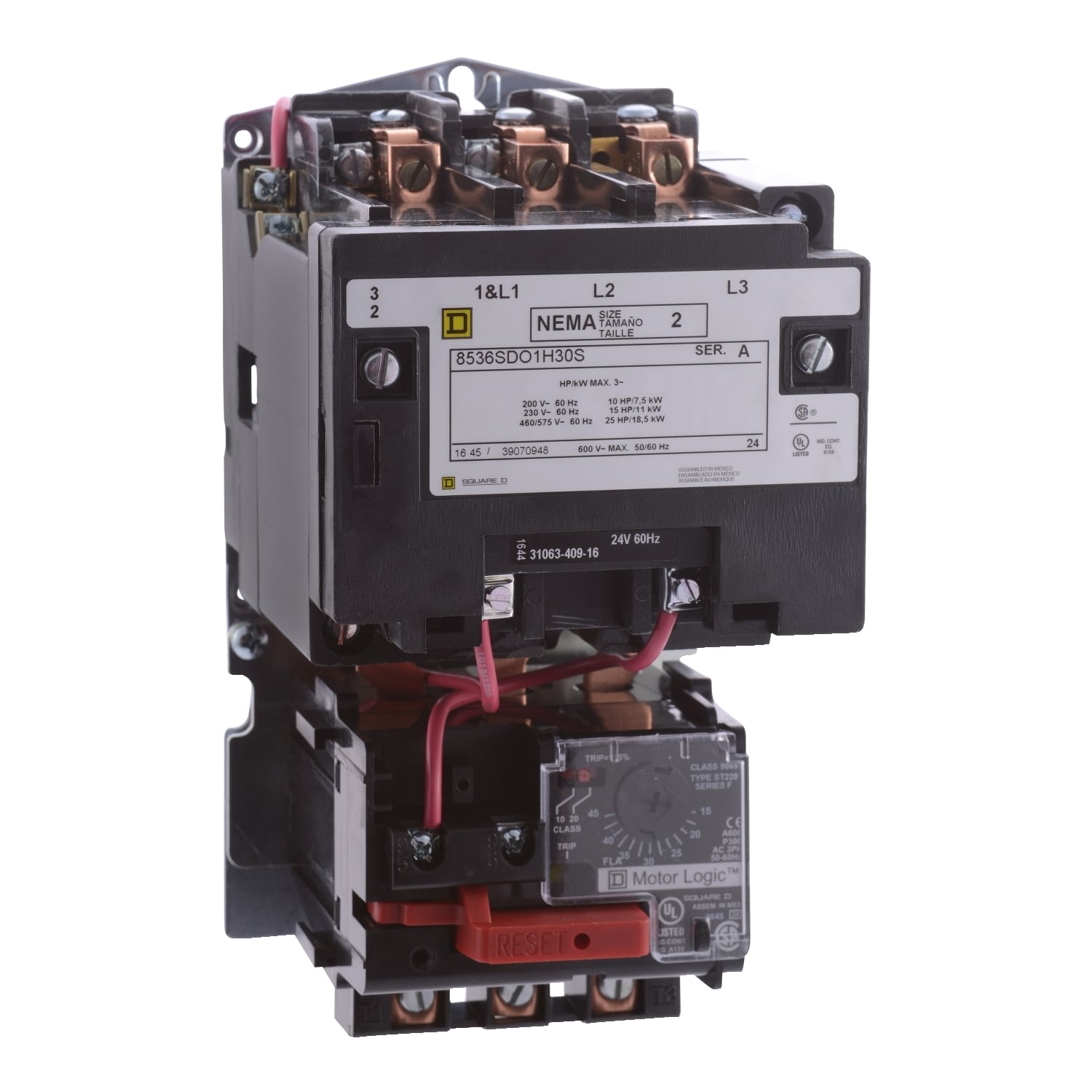

8536SDO1V08H30 Type S Full Voltage Size 2 NEMA Motor Magnetic Starter, 208 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SDO1V08H30
- Item #:
- 1595295
8536SDO1V08H30 Type S Full Voltage Size 2 NEMA Motor Magnetic Starter, 208 VAC V Coil, Non-Reversing Action, 3 Poles, Open Enclosure
- MFR #:
- 8536SDO1V08H30
- Item #:
- 1595295
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing starter has a 45 ampere rating. This NEMA Size 2 motor starter has 3 phase ratings of 10 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 15A to 45A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 208 VAC 60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 7.81 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Manuals and Documentation
| Catalog Number | 8536SDO1V08H30 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402912341&lang=en-us |
| GTIN | 03606486289723 |
