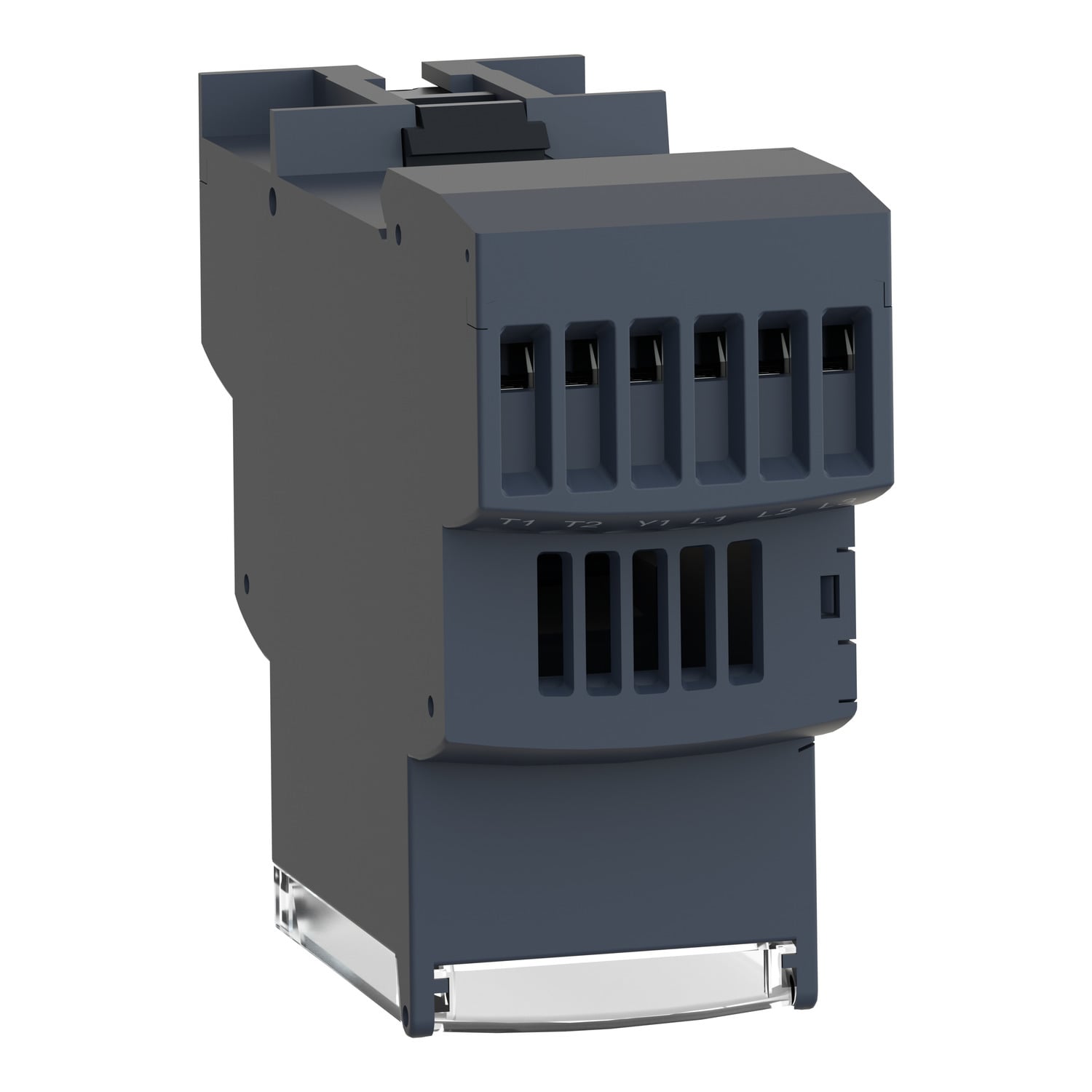

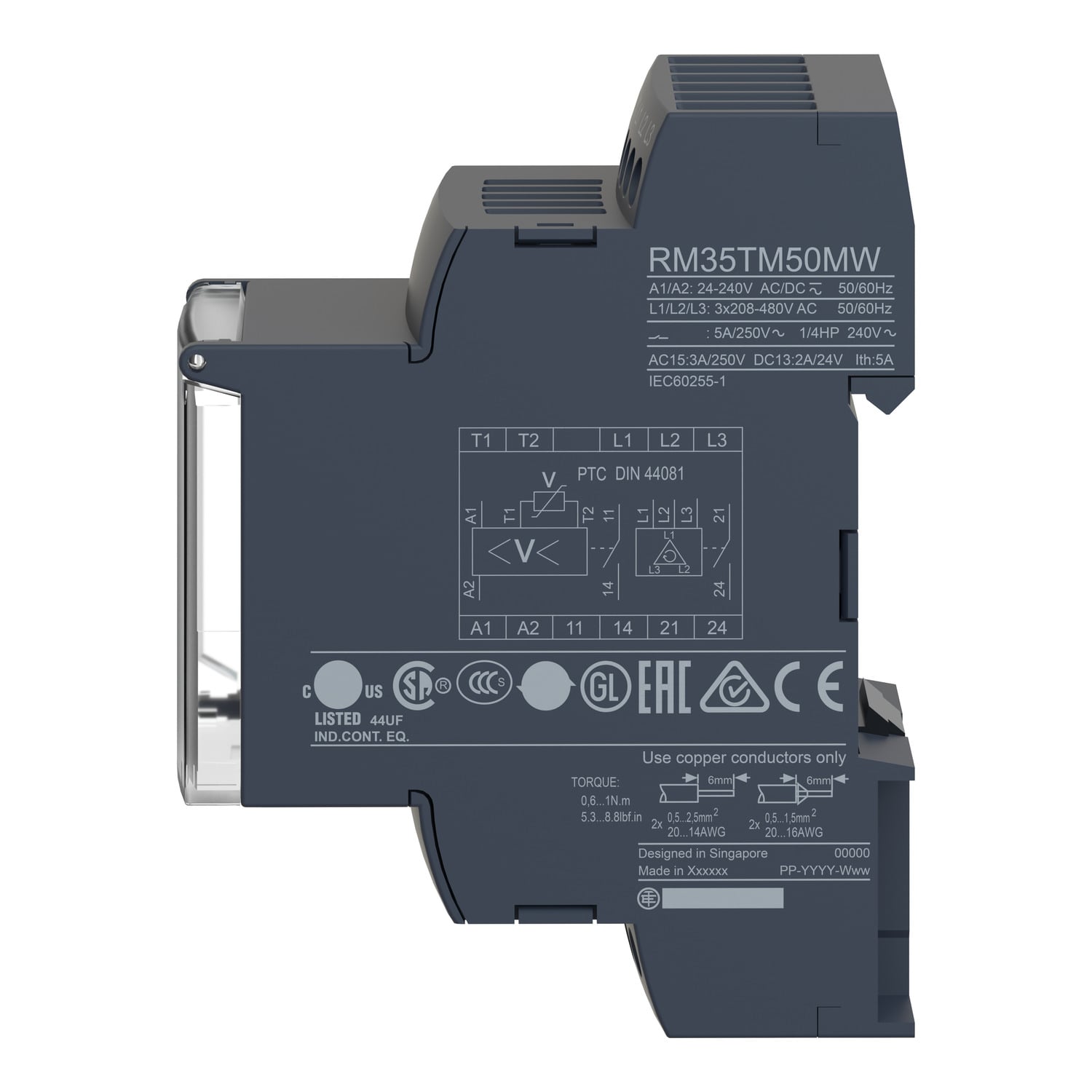

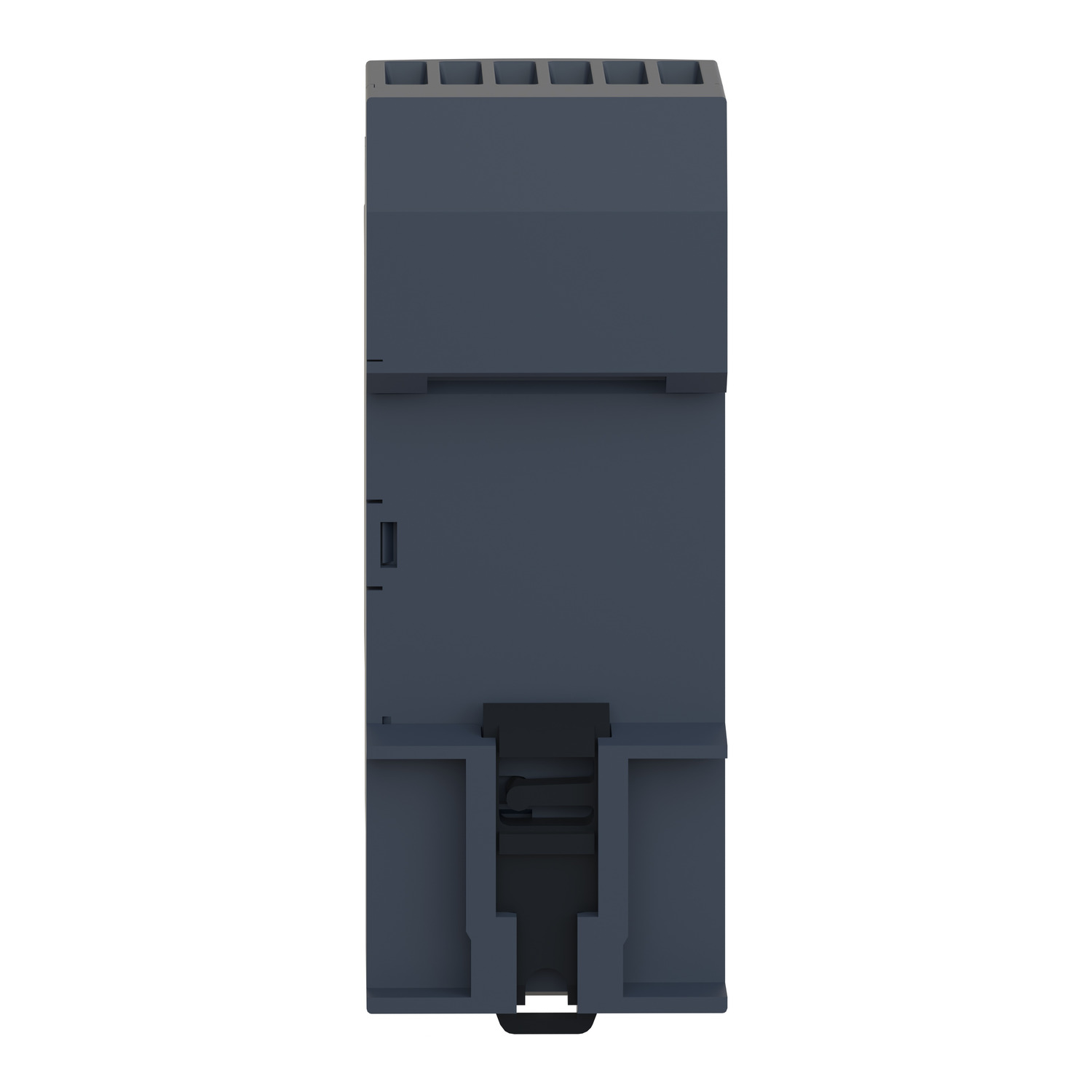

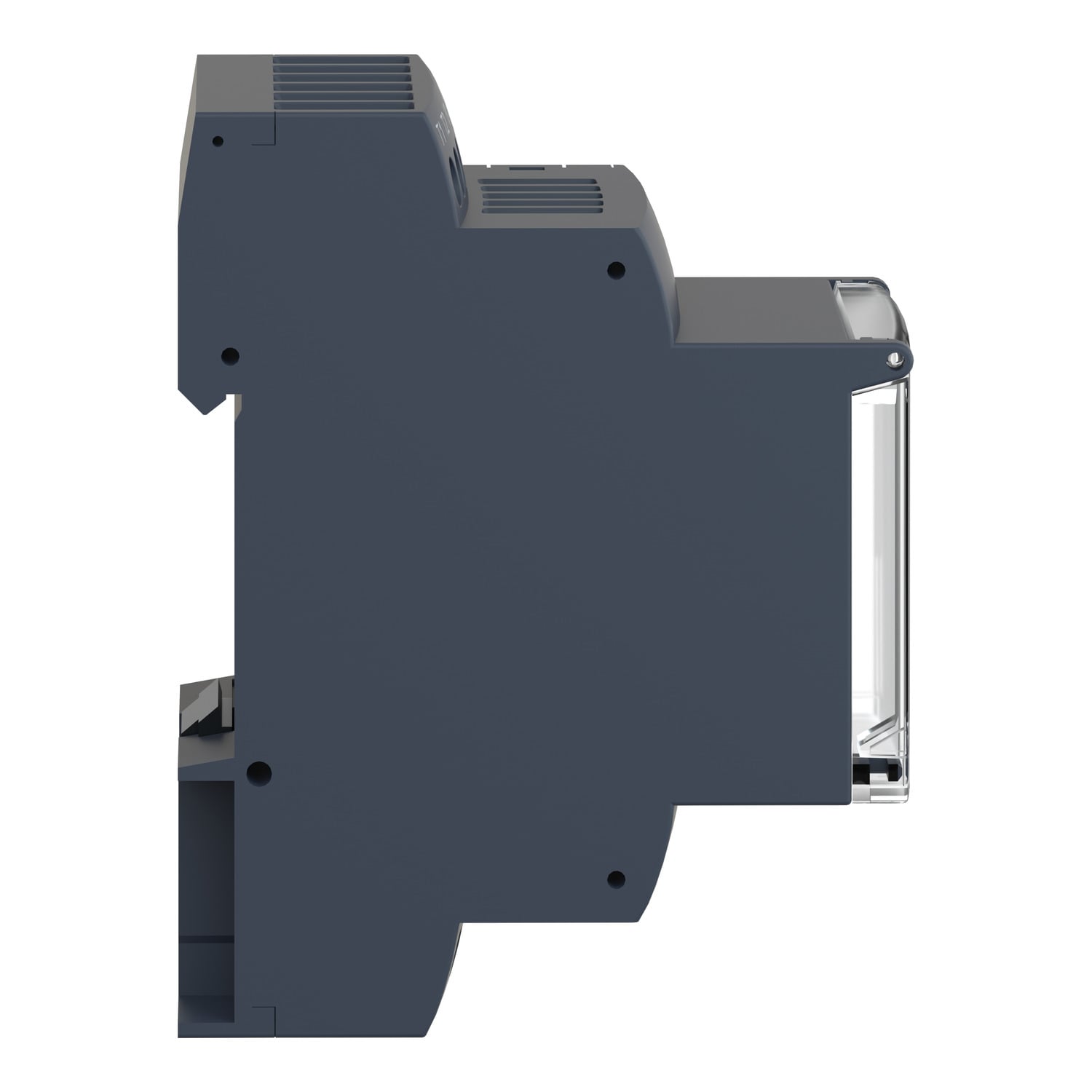

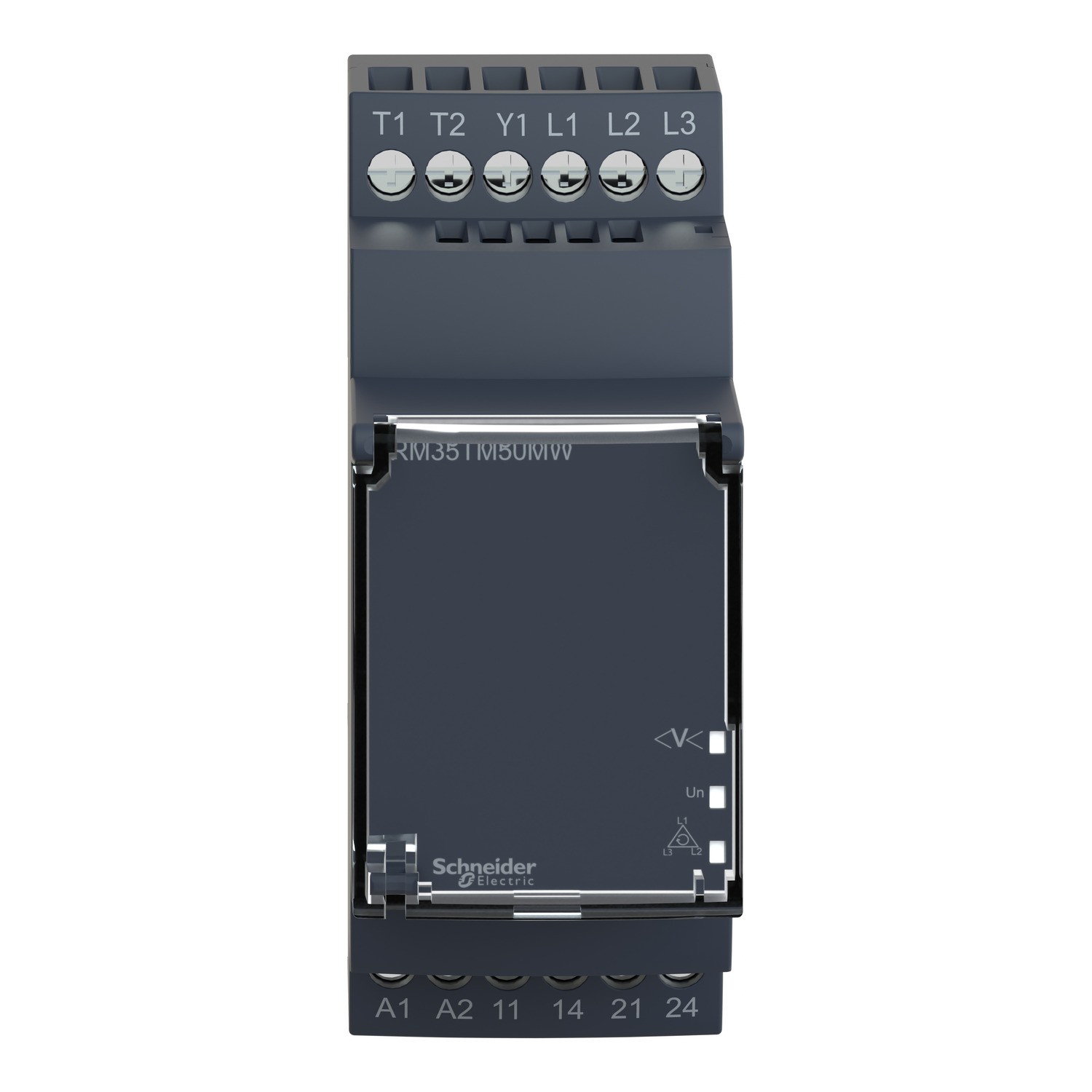

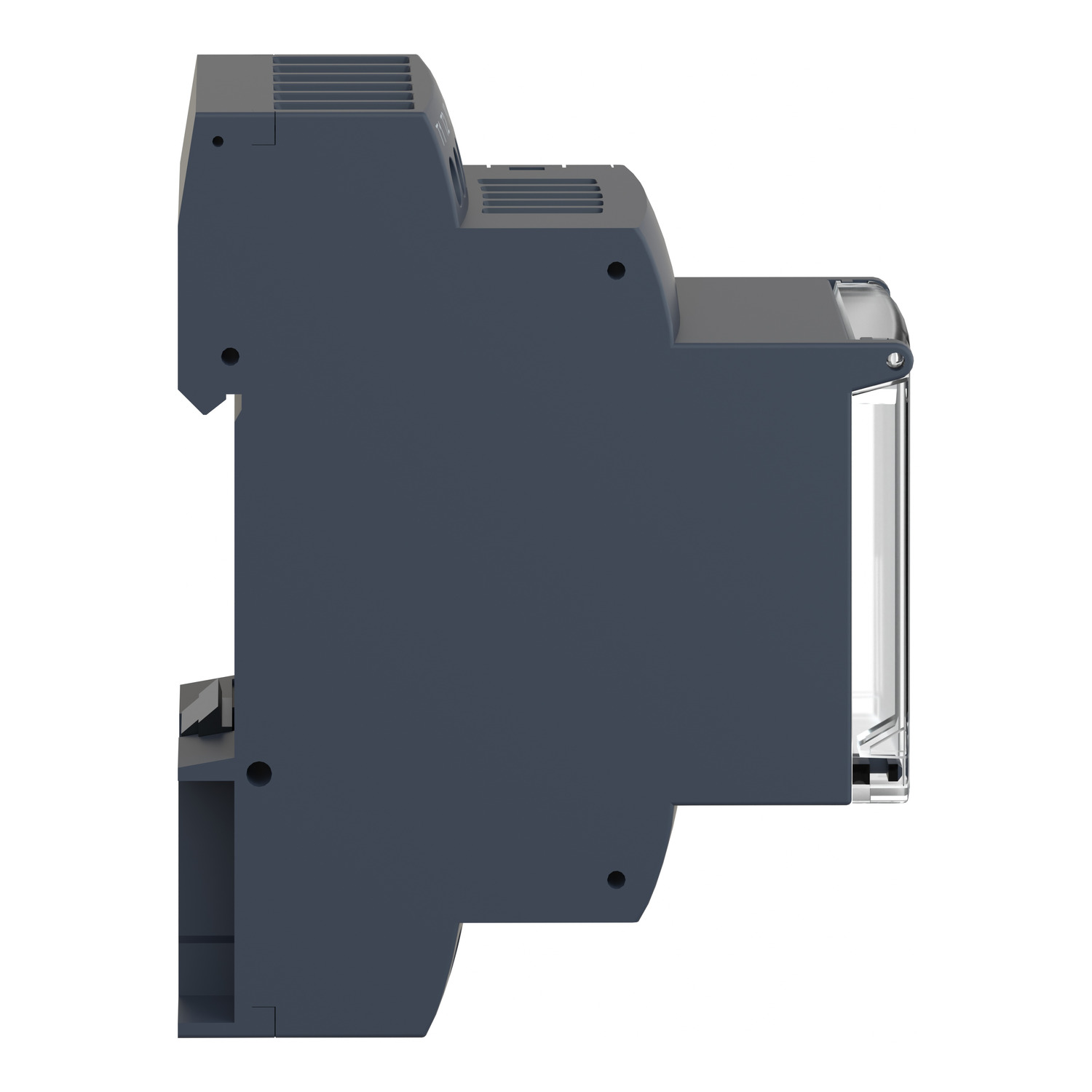

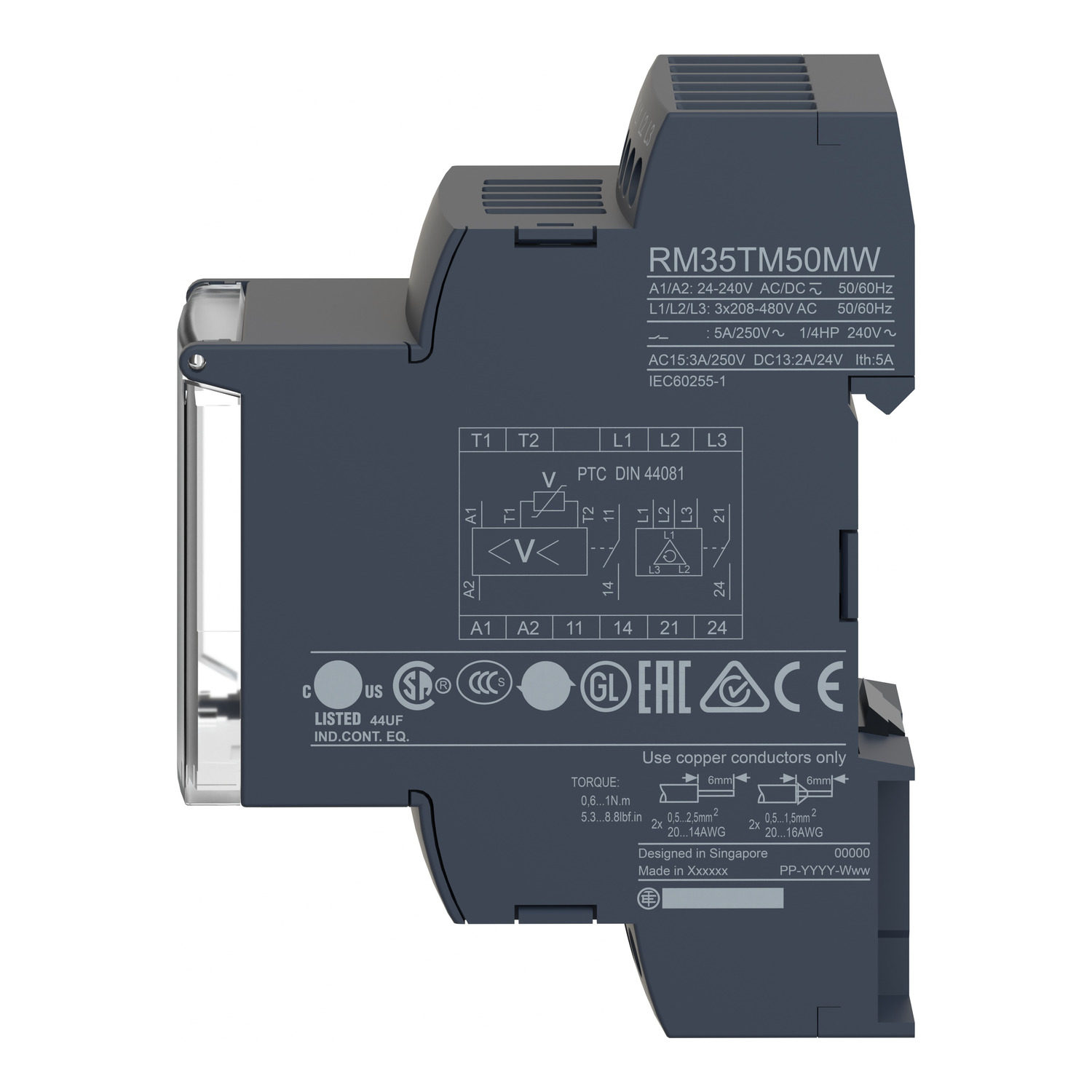

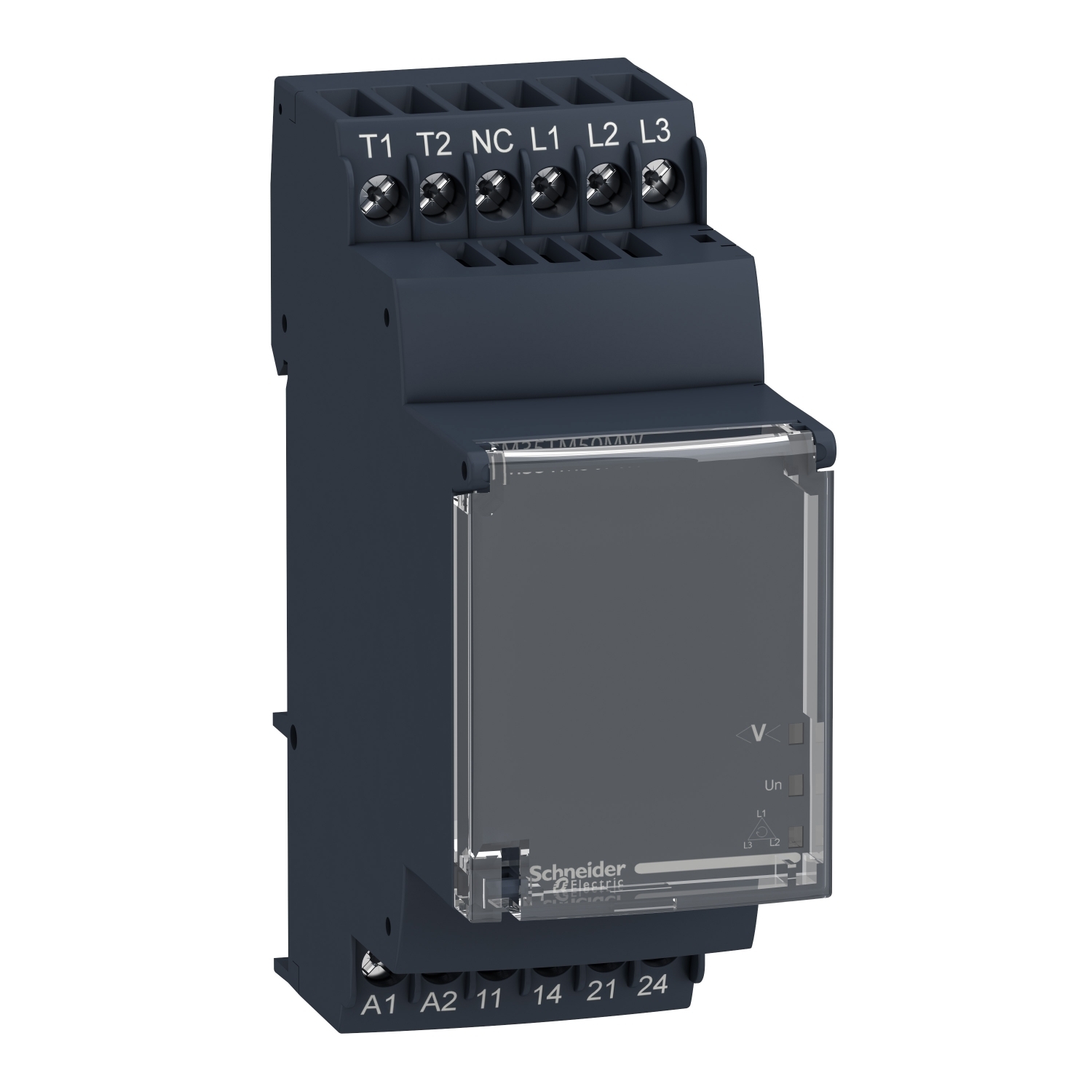

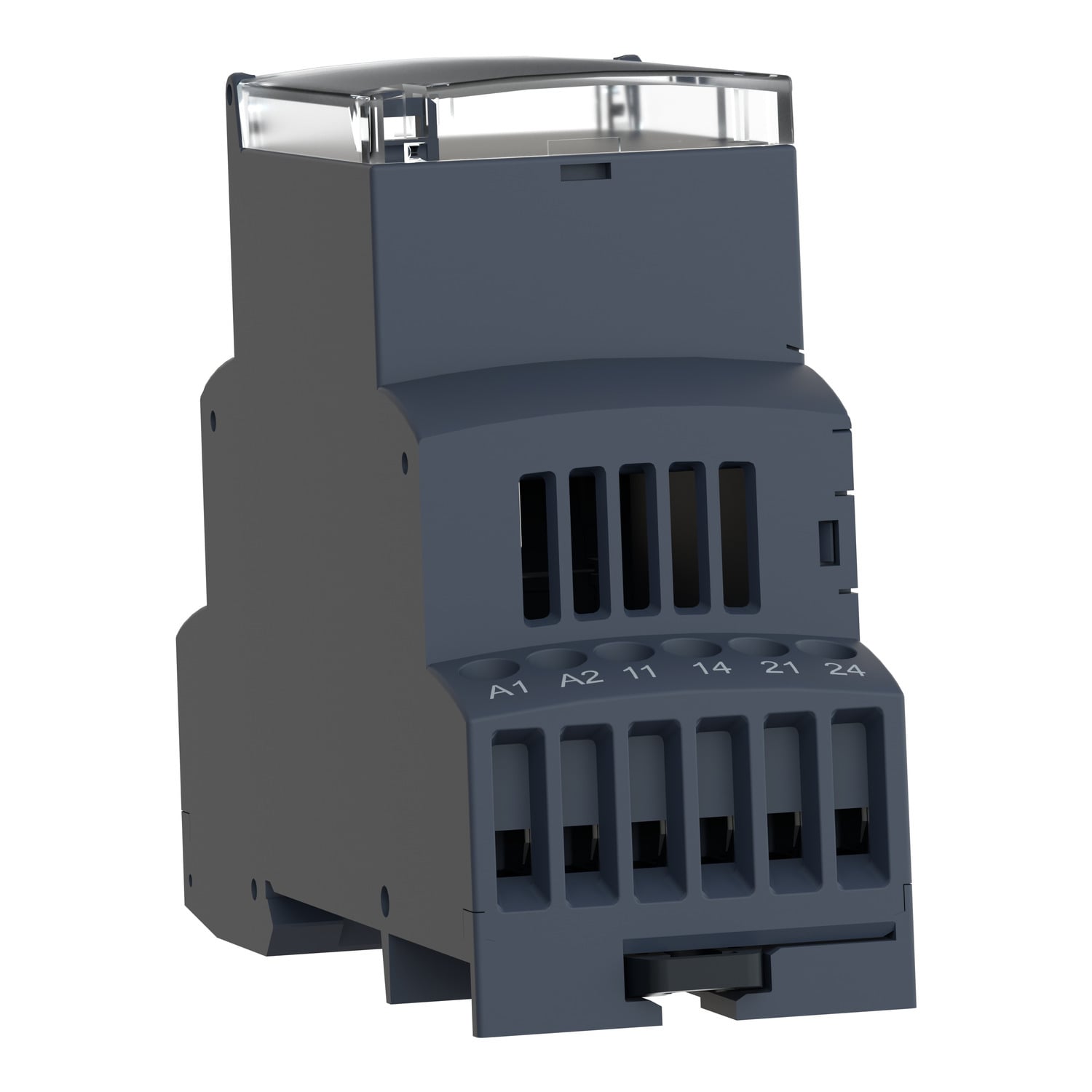

3-phase control relay, Harmony Control Relays, 5A , 2NO, phase failure detection, 24..240V AC DC
3-phase control relay, Harmony Control Relays, 5A , 2NO, phase failure detection, 24..240V AC DC
| Location | Available Qty |
|---|---|
| Available | Available to Order |
This Harmony RM35-T control relay allows monitoring of motor voltage and temperature control. This modular control relay is ideal for monitoring of electrical values with voltage and temperature variation in control of moving equipment's. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Manuals and Documentation
- Catalog Number
- RM35TM50MW
- Manufacturer
- Schneider Electric
- Brand
- SCHNEIDER ELECTRIC
- Warranty Description
- Contractual Warranty:18 months
- Country of Origin
- Indonesia
- Made in USA
- No
- Connection
- Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end;screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end;screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end;screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Contact Configuration
- 2 NO
- Mounting
- Din Rail
- Response Time
- > 50 ms (input Y1 (contact Y1-T1) and push-button)
- Special Features
- for power ON LED (green); for phase of relay (R2) LED (yellow); for temperature of relay (R1) LED (yellow)
- Standard
- CE
- GTIN
- 03389119405287
- Item Type
- Motor temperature control relay
