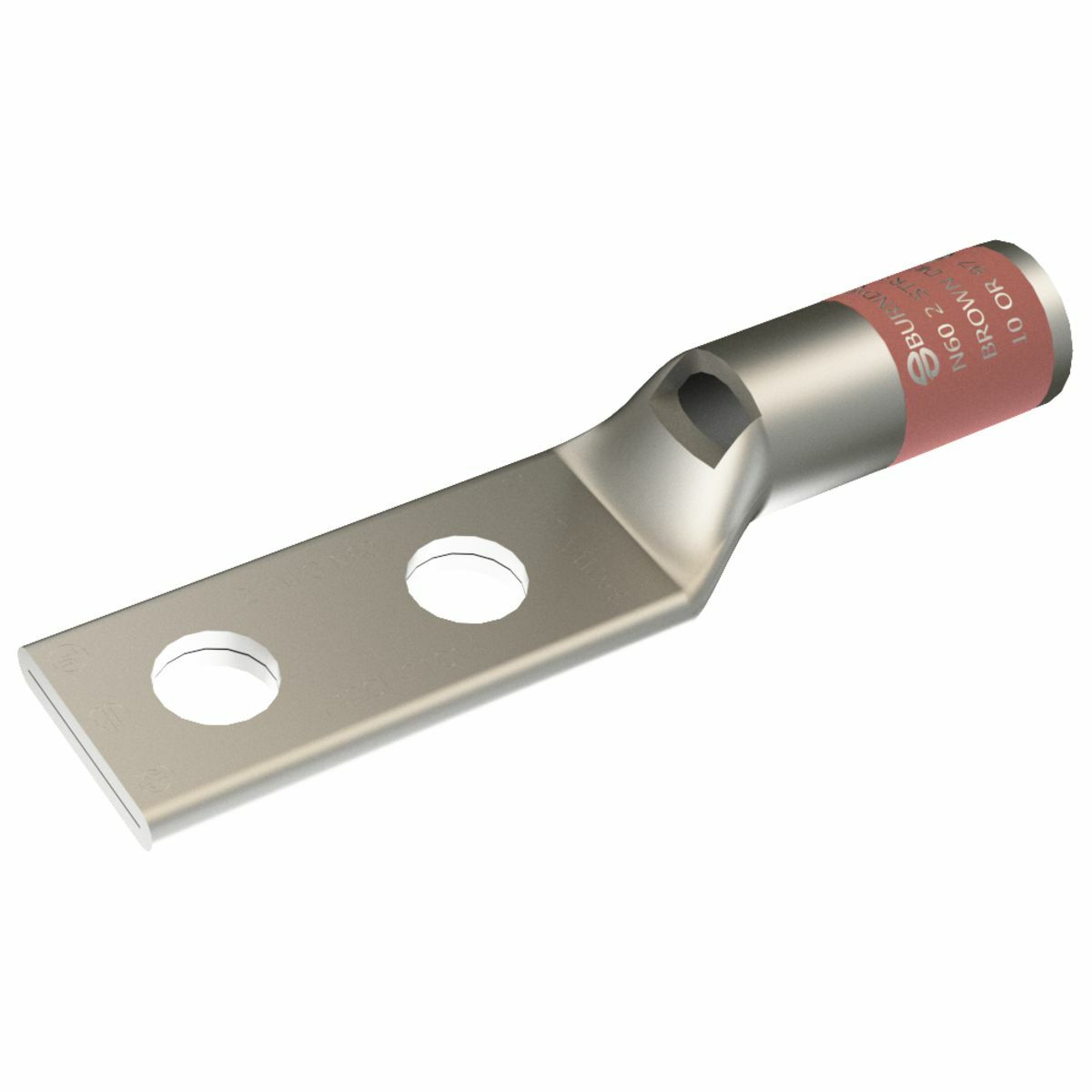

YA2CL2TC14E2 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 10, 1/4 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA2CL2TC14E2
- UPC:
- 781810018217
- Item #:
- 15932
YA2CL2TC14E2 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 10, 1/4 in Stud, Tin Plated Copper
- MFR #:
- YA2CL2TC14E2
- UPC:
- 781810018217
- Item #:
- 15932
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$17.52
each
Manuals and Documentation
| Catalog Number | YA2CL2TC14E2 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Finish: Electro-Tin Plated, Wire Strip Length: 15/16 IN, Die Index: 10, Temperature Rating: 90 DEG C, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (1), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (1), Color Code: Brown, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810018217 |
| GTIN | 00781810018217 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
| Cross Reference Products | GL2N-142 |
