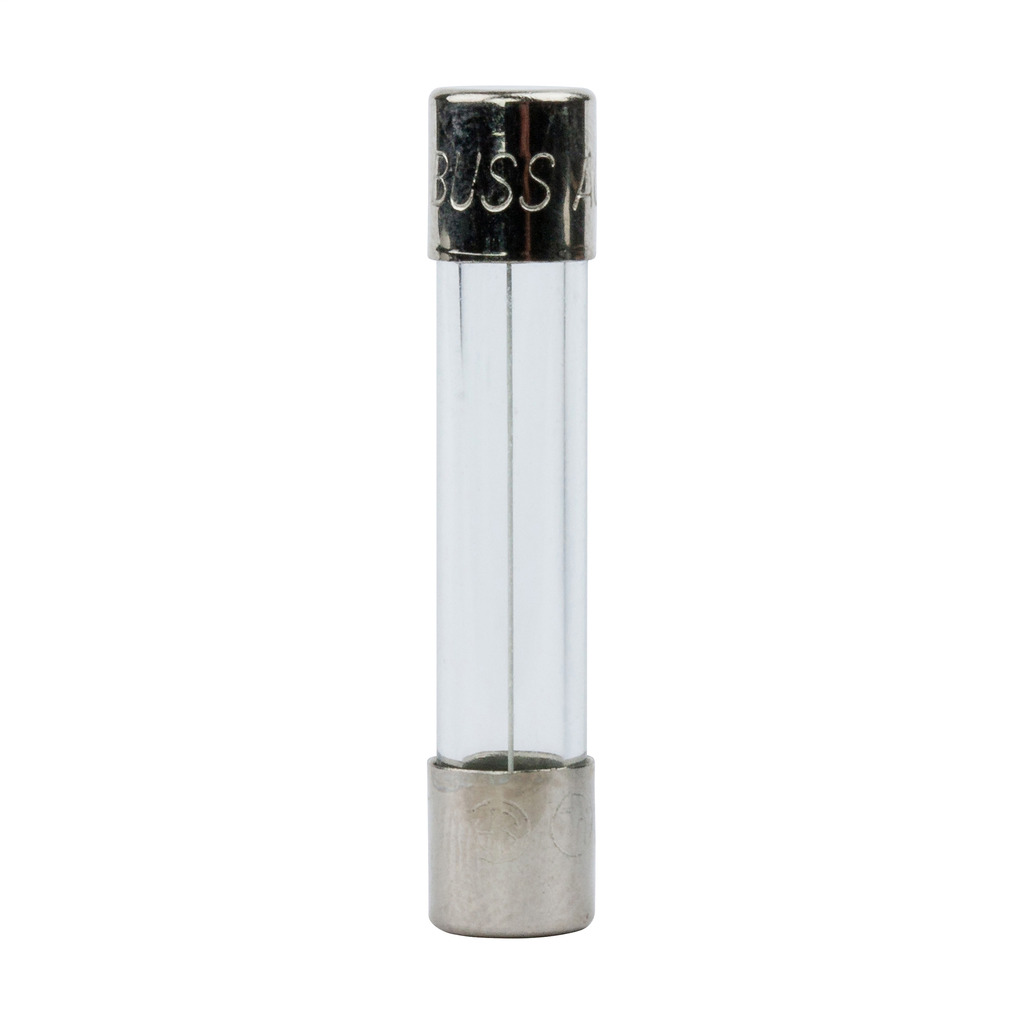

AGC-35-R Fast Acting Small Dimension Cartridge Fuse, 35 A, 32 V AC/DC, 70 A, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- AGC-35-R
- UPC:
- 051712504287
- Item #:
- 159285
AGC-35-R Fast Acting Small Dimension Cartridge Fuse, 35 A, 32 V AC/DC, 70 A, Cylindrical Body
- MFR #:
- AGC-35-R
- UPC:
- 051712504287
- Item #:
- 159285
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$5.59
each

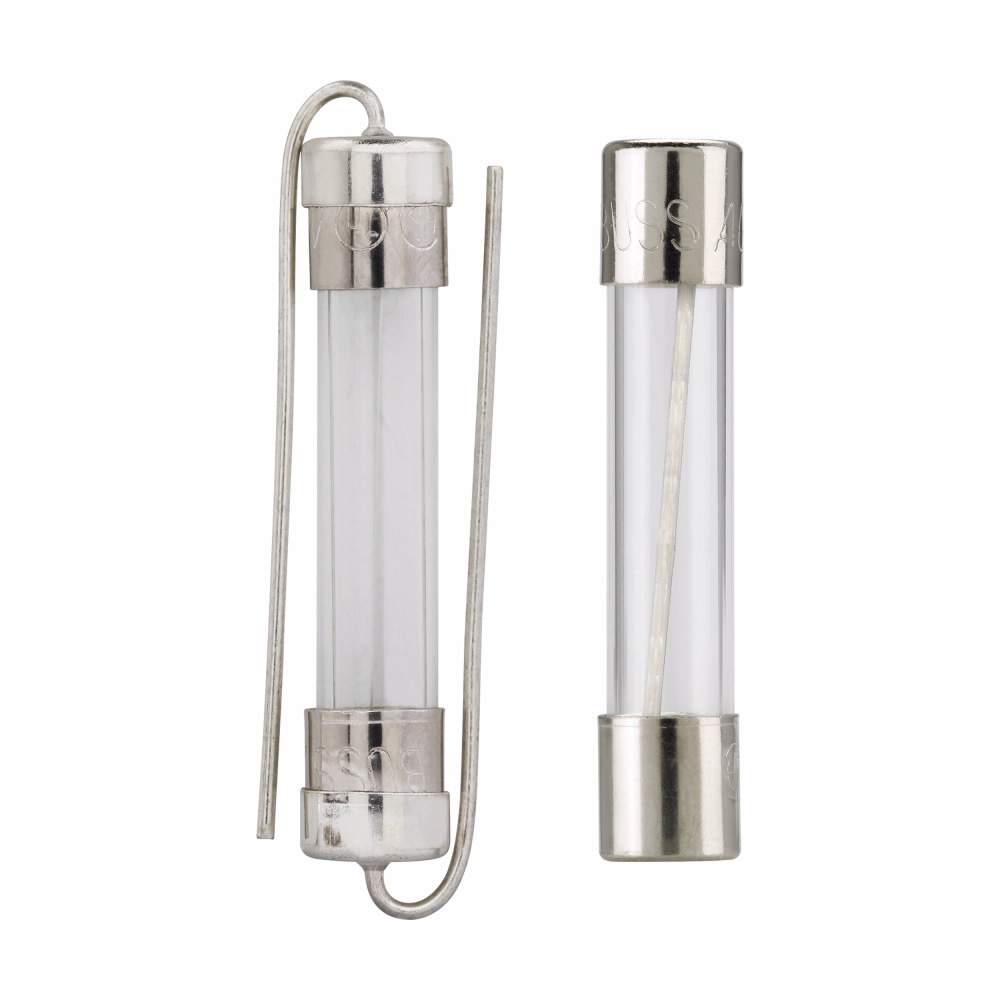

Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
Manuals and Documentation
| Catalog Number | AGC-35-R |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Taiwan, Province Of China |
| Made in USA | No |
| Amperage Rating | 35 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 1 kAIC at 32 Vac |
| Material | Glass tube|Nickel-plated brass end cap construction |
| Response Time | 60 min at 135%, 120 sec at 200% |
| Standard | CE Marked,RoHS Compliant |
| UPC | 051712504287 |
| GTIN | 00051712504287 |
| Item Type | Fast-acting glass tube fuse |
| Weight UOM | Pounds |
| Voltage Rating | 32 Vac, 32 Vdc (self certified) |
