Hubbell Wiring Device-Kellems

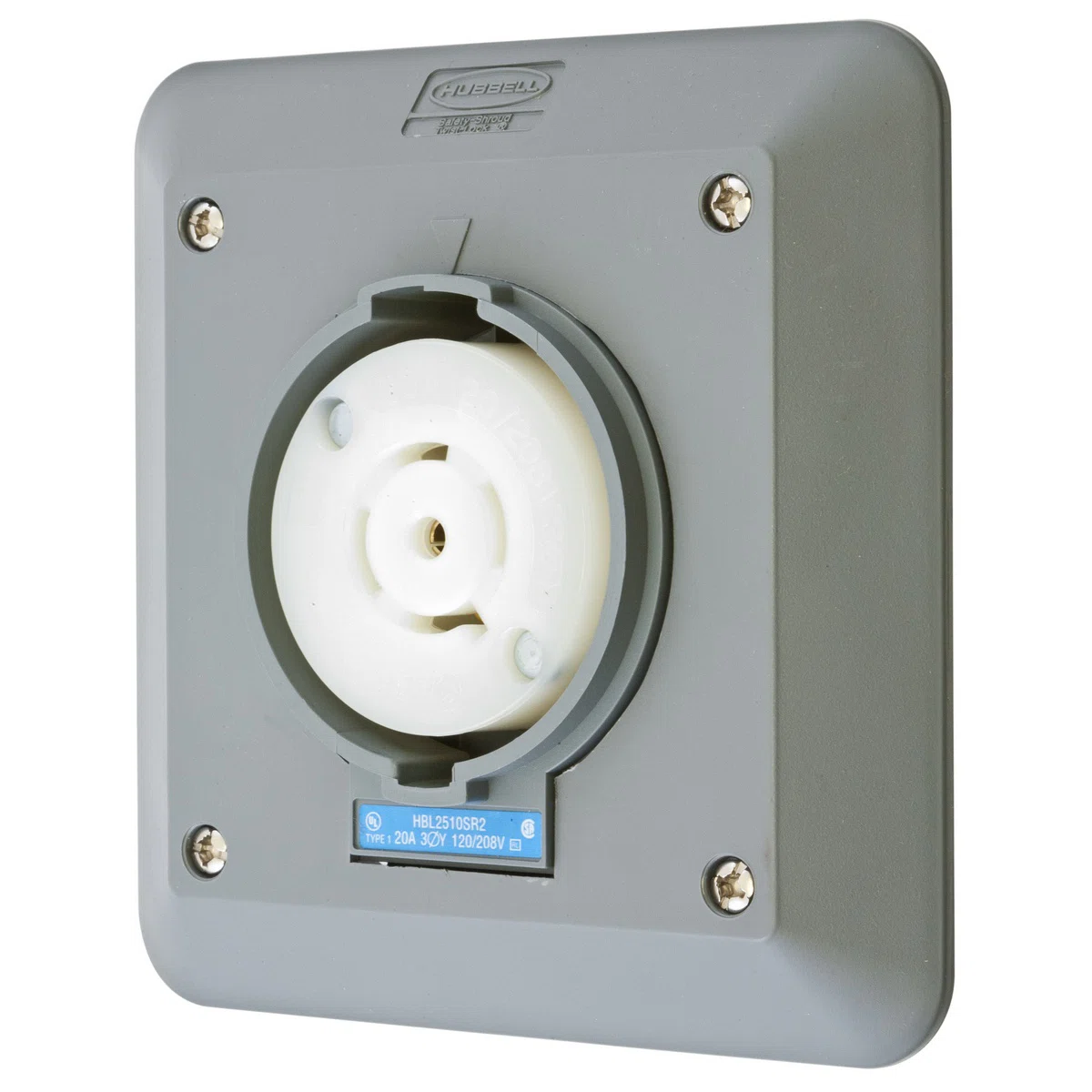

HBL2510SR2 3-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount Locking Receptacle, 120/208 V AC, 20 A, 4 Poles, 5 Wires, Gray/White

MFR:
Hubbell
MFR #:
HBL2510SR2
UPC:
783585235004
Item #:
159223

Availability

Location Available Qty
Available Available to Order
$71.61 each

Hubbell Wiring Device-Kellems Safety-Shroud® Twist-Lock® Locking Receptacle, 3-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount, 120/208 V AC, 20 A, 2 hp, 4 Pole, 5 Wires, L21-20R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Valox™, Gray/White, 5.12 x 5.12 x 2.22 in

Manuals and Documentation

Features

  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
Manufacturer Part Number HBL2510SR2
Brand Hubbell Wiring Device-Kellems
Manufacturer Hubbell
UPC 783585235004
Country Of Origin US
Amperage Rating 20 A
Color Gray/White
Dimensions 5.12 x 5.12 x 2.22 in
Enclosure IP20
Horsepower 2 hp
Material Valox™
Temperature Rating -40 to 75 deg C
Type 3-Phase 2-Gang Heavy Duty Grounding Standard Single Semi-Flush Surface Mount
Voltage Rating 120/208 V AC
Alternative Part Number 8915808
Manufacturer Item Status Active
Country USA
Warranty Limited
Standards Approvals RoHS Compliant | UL 498 | CSA C22.2 No. 42/0.17 | UL94 Flammability Rating | Federal Specification W-C-596 | NEMA WD1/WD5
Application Dry Locations and Indoor Applications
Grade Industrial
Nema Rating L21-20R
Number Of Poles 4
Number Of Wires 5
Terminal Type Screw
