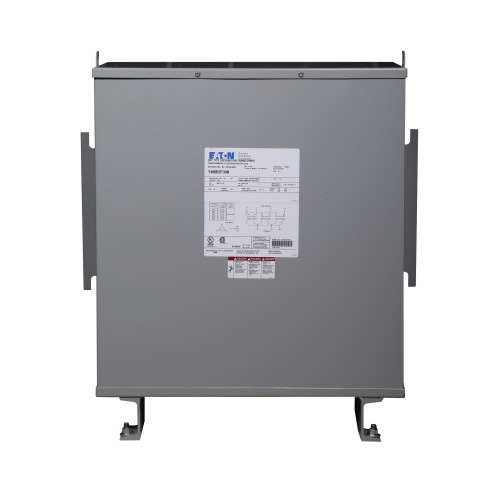

Y48M24T30N Type EPT Encapsulated Distribution Transformer, 480 VAC Primary, 240 Delta V AC Secondary, 30 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Eaton
- MFR #:
- Y48M24T30N
- UPC:
- 786680143960
- Item #:
- 1592228
Y48M24T30N Type EPT Encapsulated Distribution Transformer, 480 VAC Primary, 240 Delta V AC Secondary, 30 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- Y48M24T30N
- UPC:
- 786680143960
- Item #:
- 1592228
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$26,459.20
each
Eatons EP (single-phase) and EPT (three-phase) general purpose encapsulated dry-type transformers are of the two-winding type, encapsulated (potted) in a mix of epoxy coated sand and gravel, and are available in a wide variety of primary and secondary voltage combinations. General purpose encapsulated transformers are designed, manufactured and tested in accordance with all of the latest applicable ANSI, NEMA and IEEE standards, and are designed for continuous operation at rated kVA.
| Catalog Number | Y48M24T30N |
| Manufacturer | Eaton |
| Brand | Eaton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Commercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - Other |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Standard | UL Listed |
| UPC | 786680143960 |
| GTIN | 00786680143960 |
| Item Type | Encapsulated transformer |
| Dimensions | 10.5200 IN X 20.0000 IN X 17.3800 IN |
| Temperature Rating | 115 Degrees C rise |
