Telemecanique

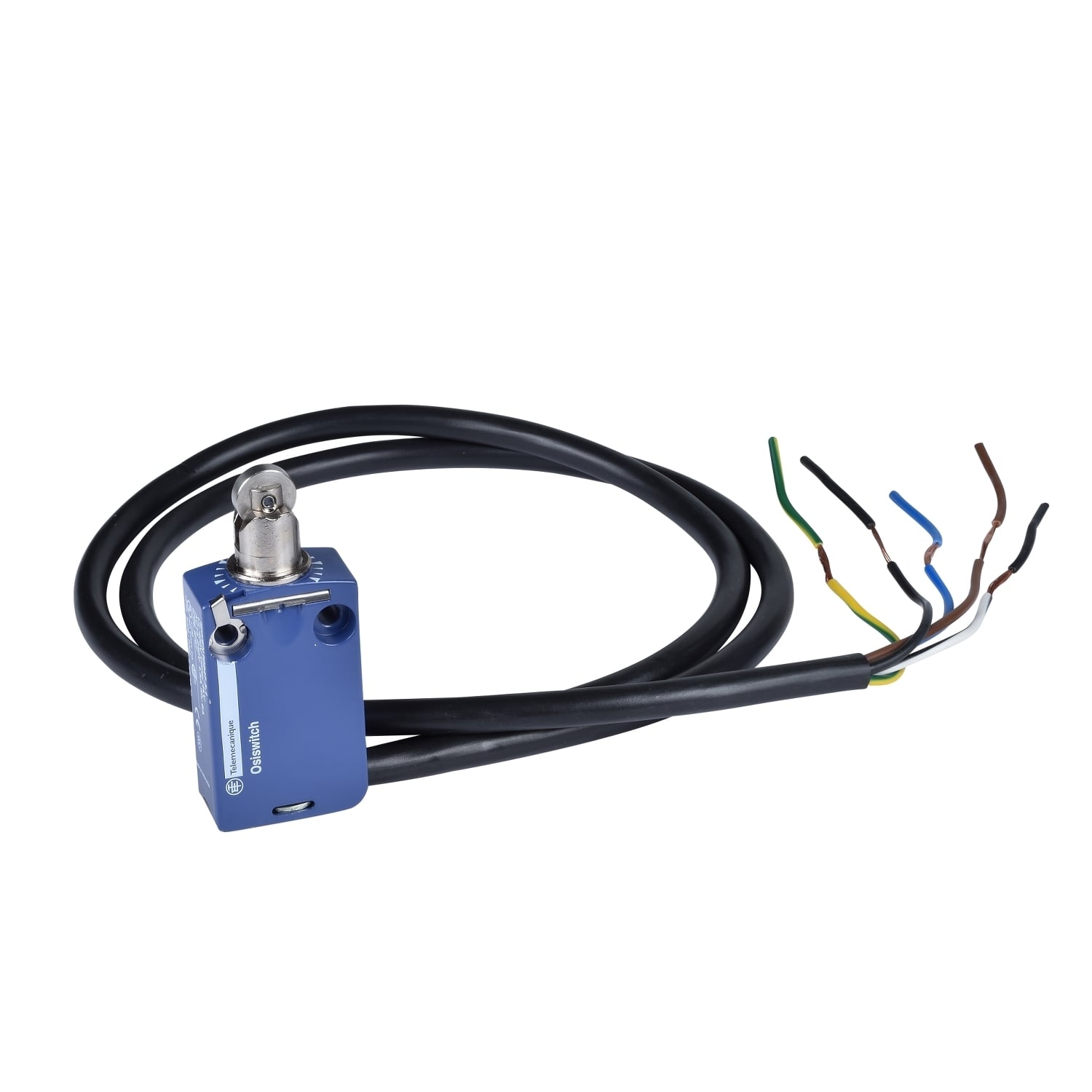

XCMD2502L1 OsiSense Fixed Heavy Duty Miniature Standard Format Limit Switch, 240 V AC/250 V DC, 6 A, Roller Plunger Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCMD2502L1
UPC:
785901487630
Item #:
15915

Availability

Location Available Qty
Available Available to Order
$96.47 each

This XCMD miniature format limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.

Manuals and Documentation
Catalog Number XCMD2502L1
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Action Lateral approach, 2 directions;Slow-break;By 30 Degrees cam
Actuator Spring return roller plunger metal
Amperage Rating 6
Application MINIATURE VARIABLE
Connection Removable cable connector
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4X/6/6P/12/13 IP66/67/68
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,METAL
Standard 25 GN 10-500 HZ)IEC 60068-2-6,25 GN 18 MS IEC 60068-2-27,EN/IEC 60947-5-1-EN/IEC 60204-1-CSA C22.2 NO 14-UL 508,IK06 EN 62262,IP66 IEC 60529-IP67 IEC 60529-IP68 IEC 60529,UL-CSA-CCC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857808&lang=en-us
UPC 785901487630
GTIN 03389110221183
Item Type Limit switch
Size 0.63
Operating Temperature -25-70 A Degrees C
Voltage Rating 240VAC/250VDC
Cross Reference Products Honeywell 14CE2S1|Honeywell 24CE2S1|Schneider XCMB502|Schneider XCMB502H7|Schneider XCMD2502L1|Telemecan XCMD2502L1
