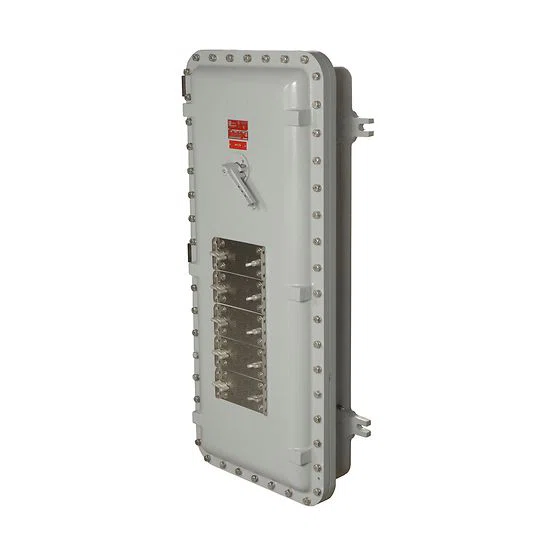

ALPNA12C12ML Explosionproof Non-Factory Sealed Main Lug Lighting Distribution Panelboard With Quicklag Breakers, 120/208 V AC, 100 A, 1 Poles, 10 kA Interrupt
- MFR:
- Emerson Electric
- MFR #:
- ALPNA12C12ML
- UPC:
- 781381904766
- Item #:
- 159125
ALPNA12C12ML Explosionproof Non-Factory Sealed Main Lug Lighting Distribution Panelboard With Quicklag Breakers, 120/208 V AC, 100 A, 1 Poles, 10 kA Interrupt
- MFR #:
- ALPNA12C12ML
- UPC:
- 781381904766
- Item #:
- 159125
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$14,654.34
each
Appleton® explosionproof, dust-ignitionproof, watertight, ALPN Series distribution panelboards are used to provide protection and control of electrical equipment in hazardous locations. These non-factory sealed panelboards are designed to centrally control switching systems for multiple branch circuits that are used for lighting, heat trace, small motors and other electrical equipment. ALPN, AGPN and APPN Series panelboards are suitable for use in damp, wet, corrosive and hazardous locations, including chemical and petrochemical plants, petroleum refineries, other process facilities and industrial applications.
Manuals and Documentation
Features
- Breaker operators included as standard
- O-ring gasket insures watertight integrity
- Precision machined flame path between body and cover
- Slotted mounting feet
- Breaker operators can be padlocked in the on or off position
- Chassis assembles with mains at top (bottom optional)
- Factory installed ground and neutral bar as standard
- Epoxy powder coated finish
- Stainless steel cover bolts, hinges
- Neoprene O-ring
- Main lug construction type
- Dust-ignitionproof
| Manufacturer Part Number | ALPNA12C12ML |
| Brand | Appleton® |
| Manufacturer | Emerson Electric |
| UPC | 781381904766 |
| Country Of Origin | US |
| Amperage Rating | 100 A |
| Color | Gray |
| Dimensions | 21 in H x 21 in W x 11 in D |
| Enclosure Type | NEMA 4/4X/7B/7C/7D/9E/9F/9G |
| Housing Material | Copper Free Aluminum |
| Series | ALPN |
| Type | Explosionproof Non-Factory Sealed Main Lug |
| Voltage Rating | 120/208 V AC |
| Alternative Part Number | 8301948 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | Buy American Act Compliant | UL 1203/E84577 | UL Listed for Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III, Class I, Zone 1, Group IIB +H2 |
| Application | For lighting, heating, small motors, similar electrical equipment and hazardous locations |
| Breaker Type | BAB |
| Bus Material | Copper Plated |
| Interrupt Rating | 10 kA |
| Number Of Circuits | 12 |
| Number Of Poles | 1 |
